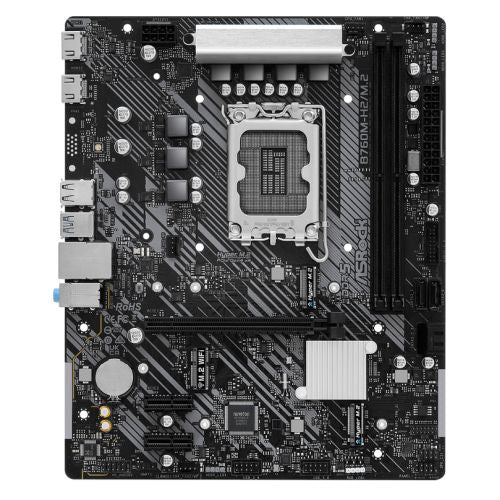

ASRock B760M-H2/M.2 Micro ATX Motherboard

The ASRock B760M-H2/M.2 delivers reliable performance for Intel 12th, 13th, and 14th generation processors in a compact Micro ATX form factor. Built on the Intel B760 chipset with LGA1700 socket compatibility, this motherboard provides essential features for mainstream PC builds.

DDR5 Memory Support

Equipped with dual DDR5 DIMM slots supporting speeds up to 7200+ MHz (OC) with Intel XMP 3.0. The motherboard accommodates up to 128GB of non-ECC, unbuffered memory in dual-channel configuration, providing bandwidth for modern applications and gaming.

High-Speed Storage Options

Features two Hyper M.2 slots with PCIe Gen4 x4 support for NVMe SSDs, delivering twice the speed of PCIe Gen3. Four SATA III ports provide additional storage connectivity. RAID 0, 1, 5, and 10 configurations are supported across SATA devices.

Expansion and Graphics

The board includes one PCIe 4.0 x16 slot for discrete graphics cards and two PCIe 3.0 x1 slots for additional expansion cards. Dual HDMI outputs enable multi-monitor setups when using integrated graphics. An M.2 Key E slot accommodates optional WiFi modules for wireless connectivity.

Dragon 2.5G LAN

The integrated 2.5 Gigabit Ethernet controller provides 2.5 times the bandwidth of standard gigabit connections, improving file transfer speeds, streaming quality, and online gaming performance without network bottlenecks.

Audio and Connectivity

Realtek ALC897 audio codec delivers 7.1 channel HD audio output. Rear I/O includes four USB 3.2 Gen1 Type-A ports and two USB 2.0 ports. Internal headers support two additional USB 3.2 Gen1 and four USB 2.0 connections.

Power Delivery and RGB

The 5+1+1 power phase design provides stable power delivery for Intel processors. Onboard RGB and addressable RGB headers support Polychrome RGB Sync-certified accessories for customizable lighting effects across compatible devices.

Auto Driver Installer

ASRock's preinstalled LAN driver ensures immediate network connectivity for downloading additional drivers without requiring optical media, simplifying the installation process.

Package includes user manual, I/O shield, two SATA data cables, and M.2 mounting screws. Backed by a 3-year replacement warranty.
