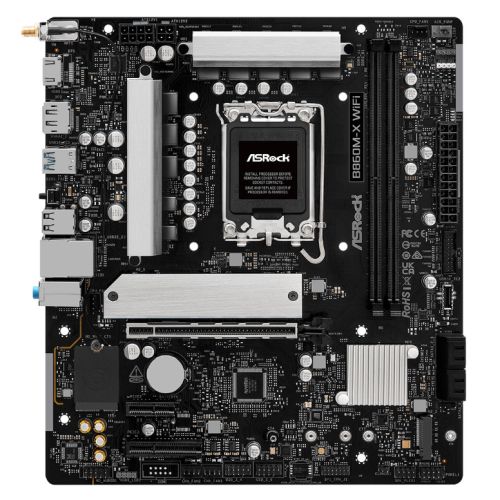

ASRock B860M-X WiFi Micro ATX Motherboard

The ASRock B860M-X WiFi delivers reliable performance in a compact Micro ATX form factor, designed for Intel Core Ultra Processors (Series 2) with LGA1851 socket. This motherboard combines essential features with modern connectivity for professional workstations and everyday computing needs.

Intel B860 Chipset Platform

Built on the Intel B860 chipset with a 7+1+1+1+1 power phase design, this motherboard supports Intel Core Ultra Processors (Series 2). The 6-layer PCB construction ensures stable signal traces and efficient power delivery, providing a solid foundation for system reliability and memory overclocking capabilities.

DDR5 Memory Performance

Features two DDR5 DIMM slots supporting dual-channel memory up to 128GB with speeds reaching 9066MHz (OC). Compatible with Intel XMP 3.0 and AMD EXPO profiles, the motherboard enables easy memory overclocking through pre-tested configurations. Non-ECC unbuffered and CUDIMM memory modules are supported for flexible system configurations.

High-Speed Storage Solutions

Equipped with dual M.2 slots for maximum storage flexibility. The Blazing M.2 slot supports PCIe Gen5 x4 SSDs with 128Gb/s transfer speeds, while the Hyper M.2 slot provides PCIe Gen4 x4 connectivity. Four SATA III ports accommodate traditional storage drives, with RAID 0, 1, 5, and 10 support across SATA devices.

Expansion and Graphics

Offers three PCIe slots: one PCIe 4.0 x16, one PCIe 4.0 x4, and one PCIe 4.0 x1 for graphics cards and expansion devices. Integrated graphics output through HDMI and DisplayPort 1.4 connections support multi-monitor configurations directly from compatible processors.

Advanced Connectivity

WiFi 6E 802.11axe module with extended 6GHz spectrum support delivers enhanced wireless performance with dual-band 2x2 configuration and Bluetooth 5.3. The Realtek 2.5G LAN port provides 2.5x bandwidth improvement over standard gigabit Ethernet. USB connectivity includes one USB 3.2 Gen2x2 Type-C port (20Gbps), multiple USB 3.2 Gen1 ports, and USB 2.0 connections across rear and front panel headers.

Thermal Management

Aluminum heatsink design efficiently dissipates heat from critical components during intensive workloads. PWM/DC fan headers automatically detect fan types, with Fan-Tastic Tuning software enabling precise fan curve adjustments for optimal cooling performance and noise reduction.

Audio and RGB Lighting

Realtek ALC897 codec delivers 7.1-channel HD audio output. Onboard RGB and addressable RGB headers support Polychrome RGB synchronization across compatible LED devices and SignalRGB integration for unified lighting control.

User-Friendly Features

BIOS Flashback functionality allows BIOS updates using only a USB drive and power supply, without requiring CPU or RAM installation. Auto Driver Installer with pre-installed LAN driver simplifies initial system setup and driver installation process.
