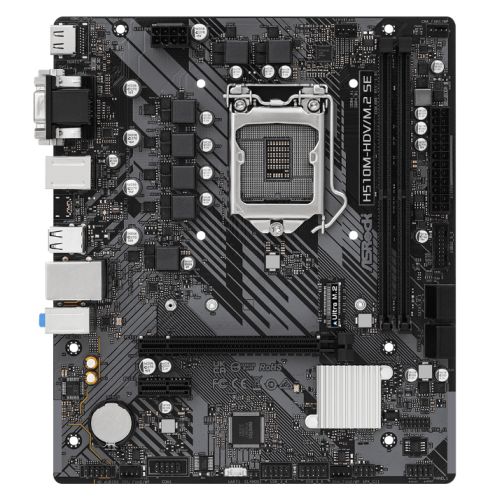

Asrock H510M-HDV/M.2 SE, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2
Asrock H510M-HDV/M.2 SE, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2
Asrock H510M-HDV/M.2 SE, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2
Asrock H510M-HDV/M.2 SE, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2
ASROCK

Asrock H510M-HDV/M.2 SE, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

Product SKU: ASMBH510M-HDVM.2SE
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
£64.30
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Shipping & Returns



H510M-HDV/M.2 SE


  • Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
  • 4+1+1 Power Phase Design
  • Supports DDR4 2933 MHz*
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6 USB 3.2 Gen1 (2 Front, 4 Rear)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer





Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.





M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.





Premium 50A Power Choke

Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.





Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.





High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.





Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!





3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.





Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.





Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.





Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop




Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1200 - Rocket Lake
  • Chipset: Intel H510
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: "DDR4 Dual Channel
    Supports non-ECC, un-buffered memory
    Supports ECC UDIMM modules (operate in non-ECC mode)"
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 2933 MHz
  • Maximum Memory: 64GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x VGA
    1 x DVI-D
    1 x HDMI
  • PCI/PCI Express: 1 x PCIe 4.0 x16
    1 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2260/2280) - SATA & PCIe 3.0 x4
  • RAID: "Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices"
  • Wireless: -
  • LAN: GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • USB Ports Supported: Rear:
    4 x USB 3.2 Gen1 Type-A
    2 x USB 2.0

    Front:
    2 x USB 3.2 Gen1 Type-A
    4 x USB 2.0
  • Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
    1 x D-Sub
    1 x DVI-D
    1 x HDMI
    2 x USB 2.0
    4 x USB 3.2 Gen1
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x COM Port
    1 x SPI TPM
    1 x Chassis Intrusion and Speaker
    1 x CPU Fan
    1 x CPU/Water Pump Fan
    2 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Panel Audio
    2 x USB 2.0
    1 x USB 3.2 Gen1
  • Accessories: 1 x User Manual
    1 x I/O Shield
    2 x SATA Data Cables
    1 x Screw for M.2 Socket
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.7500 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN
