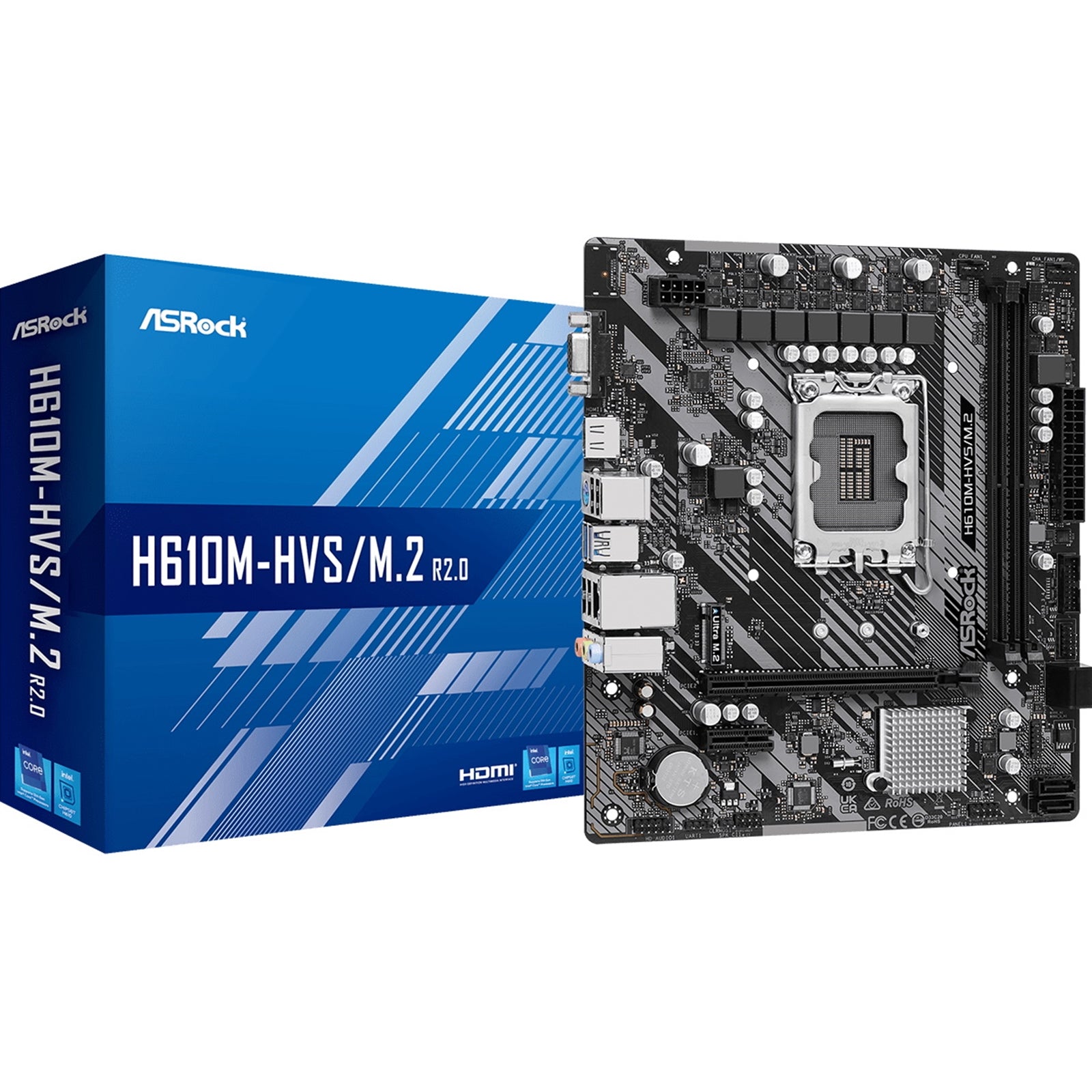

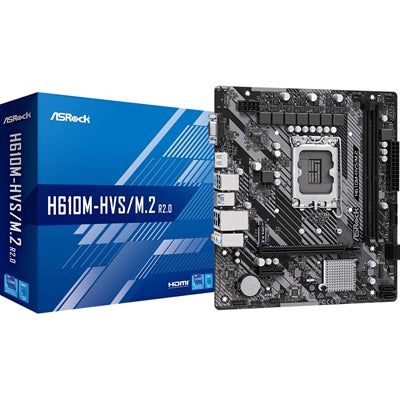

ASRock H610M-HVS/M.2 R2.0 Super Alloy Motherboard

The ASRock H610M-HVS/M.2 R2.0 delivers reliable performance for 12th Gen Intel Core processors in a compact Micro-ATX form factor. Built with Super Alloy components including premium power chokes and sapphire black PCB, this motherboard provides stable power delivery through its 7-phase digital PWM design.

Intel LGA1700 Socket Performance

Compatible with 12th Gen Intel Core processors, this motherboard supports Intel Hybrid Technology and Turbo Boost Max 3.0. The H610 chipset paired with dual-channel DDR4 memory up to 3200MHz (64GB maximum capacity) ensures smooth system operation for productivity tasks and everyday computing.

Storage and Expansion

Features one Ultra M.2 socket supporting PCIe Gen3 x4 with transfer speeds up to 32Gb/s, compatible with both PCIe and SATA3 M.2 modules. Four SATA3 ports provide additional storage connectivity. Expansion options include one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot for graphics cards and peripherals.

Display and Connectivity

Dual graphics outputs include HDMI 2.1 supporting 4K resolution at 60Hz with HDCP 2.3, plus D-Sub port for legacy display compatibility. Realtek Gigabit Ethernet with Wake-On-LAN and Energy Efficient Ethernet 802.3az provides reliable network connectivity. USB options include four USB 3.2 Gen1 ports and six USB 2.0 ports across front and rear panel connections.

Audio and Protection Features

Realtek ALC897 7.1 CH HD audio codec delivers quality sound output. ASRock Full Spike Protection safeguards USB, audio, and LAN ports from voltage surges. The motherboard includes ESD protection on all USB headers and ports.

BIOS and Software

128Mb AMI UEFI BIOS with multilingual GUI support provides voltage adjustments for CPU, memory, and chipset components. Includes ASRock utilities like A-Tuning, XFast LAN, EZ Mode, Instant Flash, and Internet Flash for system management and updates.

Specifications Summary

• Socket: LGA1700
• Chipset: Intel H610
• Memory: 2x DDR4 DIMM slots, up to 3200MHz, 64GB max
• Storage: 1x M.2 PCIe Gen3 x4, 4x SATA3
• Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
• Form Factor: Micro-ATX (22.3cm x 18.8cm)
• OS Support: Windows 10/11 64-bit

Includes quick installation guide, I/O shield, two SATA cables, M.2 screw, and driver support CD.
