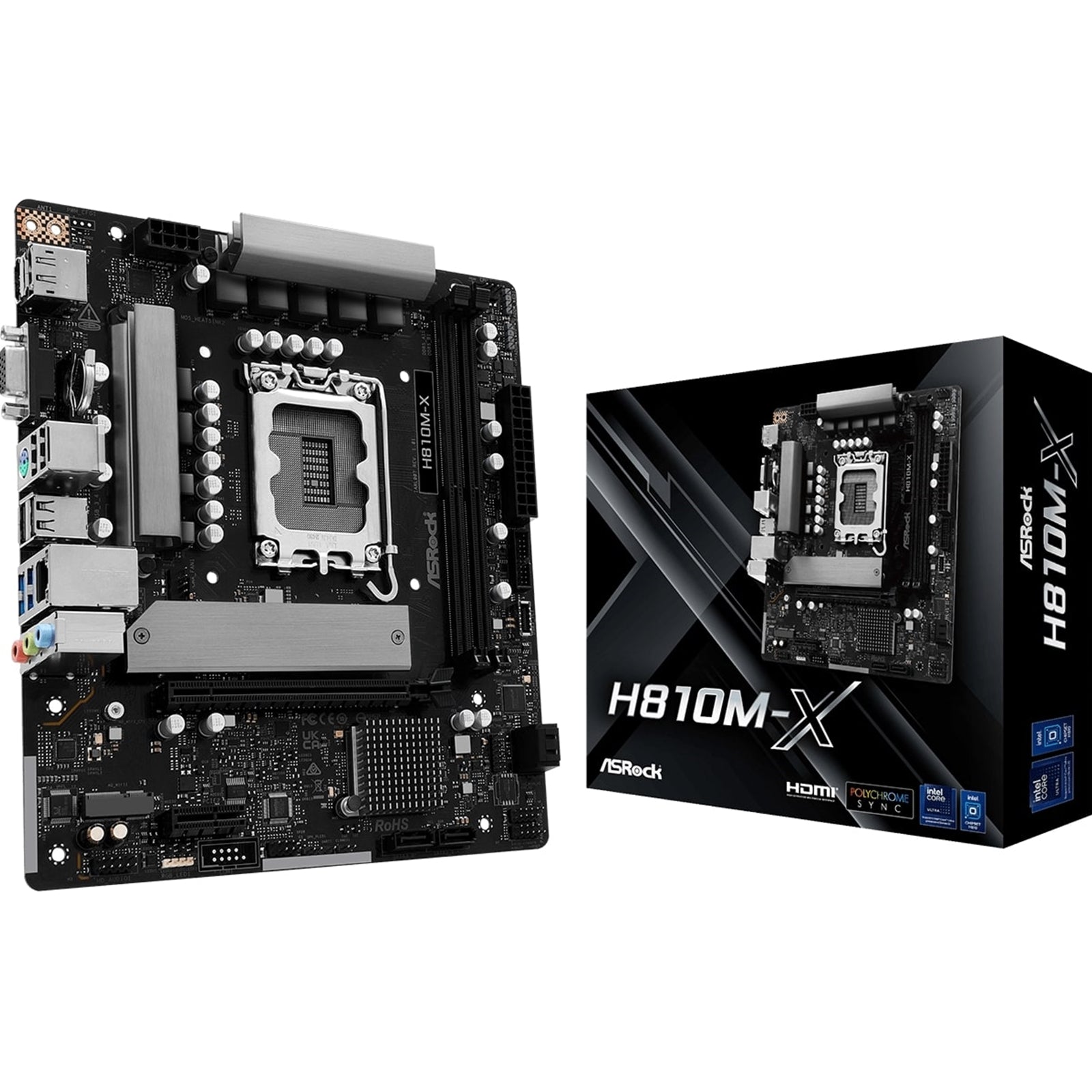

ASRock H810M-X Intel LGA1851 Motherboard

The ASRock H810M-X delivers a compact Micro ATX solution for Intel Core Ultra Series 2 processors on the LGA1851 socket. Built on the Intel H810 chipset, this motherboard balances performance and reliability for both professional workloads and daily computing tasks.

DDR5 Memory and Storage Performance

Equipped with 2 DDR5 DIMM slots supporting speeds up to 6400 MT/s with dual-channel architecture and Intel XMP 3.0 profiles. Maximum capacity reaches 128GB with support for Clocked Unbuffered DIMM (CUDIMM) technology. Storage options include one Hyper M.2 socket supporting PCIe Gen4 x4 SSDs at 64 Gb/s transfer rates, plus four SATA3 6.0 Gb/s connectors for traditional drives.

Connectivity and Expansion

The motherboard features Dragon 2.5 Gigabit LAN with RTL8125BG controller, delivering 2.5X the bandwidth of standard gigabit ethernet. USB connectivity includes one front USB 3.2 Gen1 Type-C header with 5 Gbps transfer rates, four USB 3.2 Gen1 Type-A ports, and six USB 2.0 ports. Expansion slots consist of one PCIe 4.0 x16 slot running at full x16 mode and one PCIe 4.0 x1 slot, plus an M.2 Key E socket for WiFi/BT modules supporting 802.11ac dual-band wireless.

Display and Graphics Output

Three display outputs accommodate multiple monitor configurations: HDMI 2.1 supporting 4K 120Hz with HDR and HDCP 2.3, DisplayPort 1.4 with DSC compression for 8K 60Hz or 5K 120Hz output, and D-Sub for Full HD 1920x1080 60Hz displays. All outputs leverage Intel Xe LPG integrated graphics architecture.

Thermal Management and Power Design

Aluminum heatsinks provide thermal dissipation during demanding workloads. The 6+1+1+1+1 power phase design with ASRock Intel 4-Layer Memory POOL technology ensures stable power delivery to Intel Core Ultra processors. Smart fan speed control manages one CPU fan connector and one chassis fan connector.

Customization and Software

Polychrome RGB headers allow synchronization with compatible LED devices including strips, fans, and coolers. SignalRGB partnership provides unified RGB control with game-reactive effects and system monitoring. ASRock Auto Driver Installer eliminates the need for optical drives by pre-installing LAN drivers for streamlined setup. Additional software includes A-Tuning utility, Dragon 2.5G LAN software, and Full HD UEFI interface.

Technical Specifications

Form factor measures 8.66 x 7.6 inches (22.0 x 19.3 cm) in Micro ATX configuration. Realtek ALC897 codec delivers 7.1 channel HD audio. The 256Mb AMI UEFI BIOS includes GUI support and features like Instant Flash and EZ Mode. Package includes I/O shield, two SATA cables, and M.2 mounting screw. Compatible with Microsoft Windows 11 64-bit and certified for FCC, CE, and ErP/EuP standards.

• Socket: 1851
• CPU Compatibility: Intel Core Ultra
• Chipset: Intel H810
• Form Factor: Micro ATX
• Memory Slots: DDR5 - 2 Slots
• M.2 Compatibility: PCIe4.0 x 4
• USB C: 1
