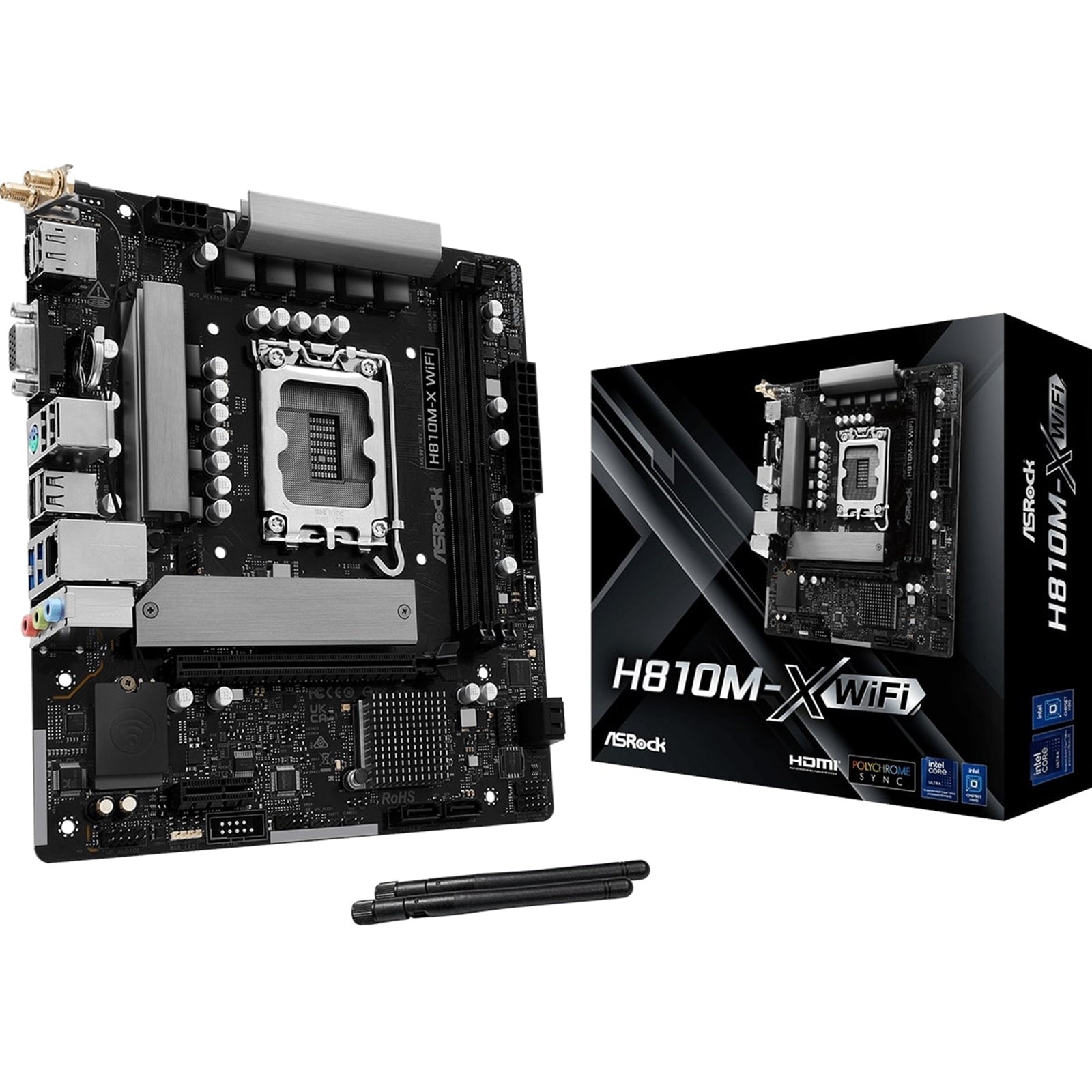

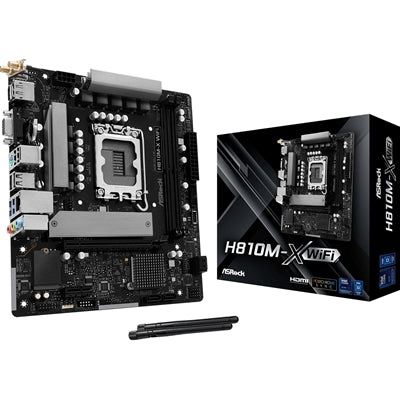

ASRock H810M-X WiFi Intel LGA1851 Motherboard

The ASRock H810M-X WiFi delivers a compact, high-performance solution for Intel Core Ultra Series 2 processors. This micro ATX motherboard combines essential connectivity, dual-channel DDR5 memory support, and intelligent thermal management in a space-efficient design.

Intel LGA1851 Socket with H810 Chipset

Built on the Intel H810 chipset, this motherboard supports Intel Core Ultra Processors (Series 2) with integrated NPU for AI acceleration. The platform supports Intel Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost, and Adaptive Boost Technology for optimized performance across demanding workloads.

Dual Channel DDR5 Memory Architecture

Two DDR5 DIMM slots support up to 128GB of system memory with speeds reaching DDR5-6400. The motherboard features ASRock Intel 4-Layer Memory POOL Technology and supports Intel Extreme Memory Profile (XMP) 3.0, plus Clocked Unbuffered DIMM (CUDIMM) for enhanced memory performance and stability.

High-Speed Storage and Expansion

The Hyper M.2 socket delivers PCIe Gen4 x4 speeds (64 Gb/s) for NVMe SSDs, doubling the bandwidth of previous generation drives. One PCIe 4.0 x16 slot accommodates high-performance graphics cards, while a PCIe 4.0 x1 slot provides additional expansion. Four SATA3 ports offer 6.0 Gb/s connectivity for traditional storage drives.

Dragon 2.5G LAN and 802.11ac WiFi

The Realtek RTL8125BG controller provides 2.5 Gigabit Ethernet with Dragon LAN software for bandwidth optimization across gaming, streaming, and file transfer scenarios. The integrated 802.11ac WiFi module supports dual-band (2.4/5 GHz) wireless connectivity up to 433Mbps with Bluetooth 5.0.

Comprehensive USB Connectivity

Front panel USB 3.2 Gen1 Type-C header delivers 5 Gbps data transfer with reversible connectivity. The motherboard includes four USB 3.2 Gen1 Type-A ports (two rear, two front) and six USB 2.0 ports (four rear, two front) for peripheral connectivity.

Triple Display Output Configuration

Intel Xe LPG integrated graphics support three simultaneous displays through HDMI 2.1 (4K 120Hz with HDR and HDCP 2.3), DisplayPort 1.4 with DSC (8K 60Hz / 5K 120Hz), and D-Sub (1080p 60Hz). This configuration accommodates diverse monitor setups without discrete graphics.

Intelligent Thermal Design

Aluminum heatsinks manage thermal loads during intensive operations. The 6+1+1+1+1 power phase design ensures stable power delivery to the processor. Two 4-pin fan connectors with Smart Fan Speed Control regulate chassis and CPU cooling based on temperature sensors.

Polychrome RGB Lighting Control

Onboard RGB and addressable RGB headers connect compatible LED devices including strips, fans, and coolers. Polychrome RGB Sync coordinates lighting effects across certified accessories, while SignalRGB partnership provides advanced lighting control, game-reactive effects, and system monitoring.

Specifications Summary

The H810M-X WiFi measures 22.0 cm x 19.3 cm in micro ATX form factor. Realtek ALC897 codec delivers 7.1 channel HD audio. The 256Mb AMI UEFI BIOS includes ASRock EZ Mode, Instant Flash, and Auto Driver Installer. Package includes I/O shield, two SATA cables, and dual-band WiFi antennas. Compatible with Microsoft Windows 11 64-bit with FCC and CE certifications.

• Socket: 1851
• CPU Compatibility: Intel Core Ultra
• Chipset: Intel H810
• Form Factor: Micro ATX
• Memory Slots: DDR5 - 2 Slots
• M.2 Compatibility: PCIe4.0 x 4
• USB C: 1
