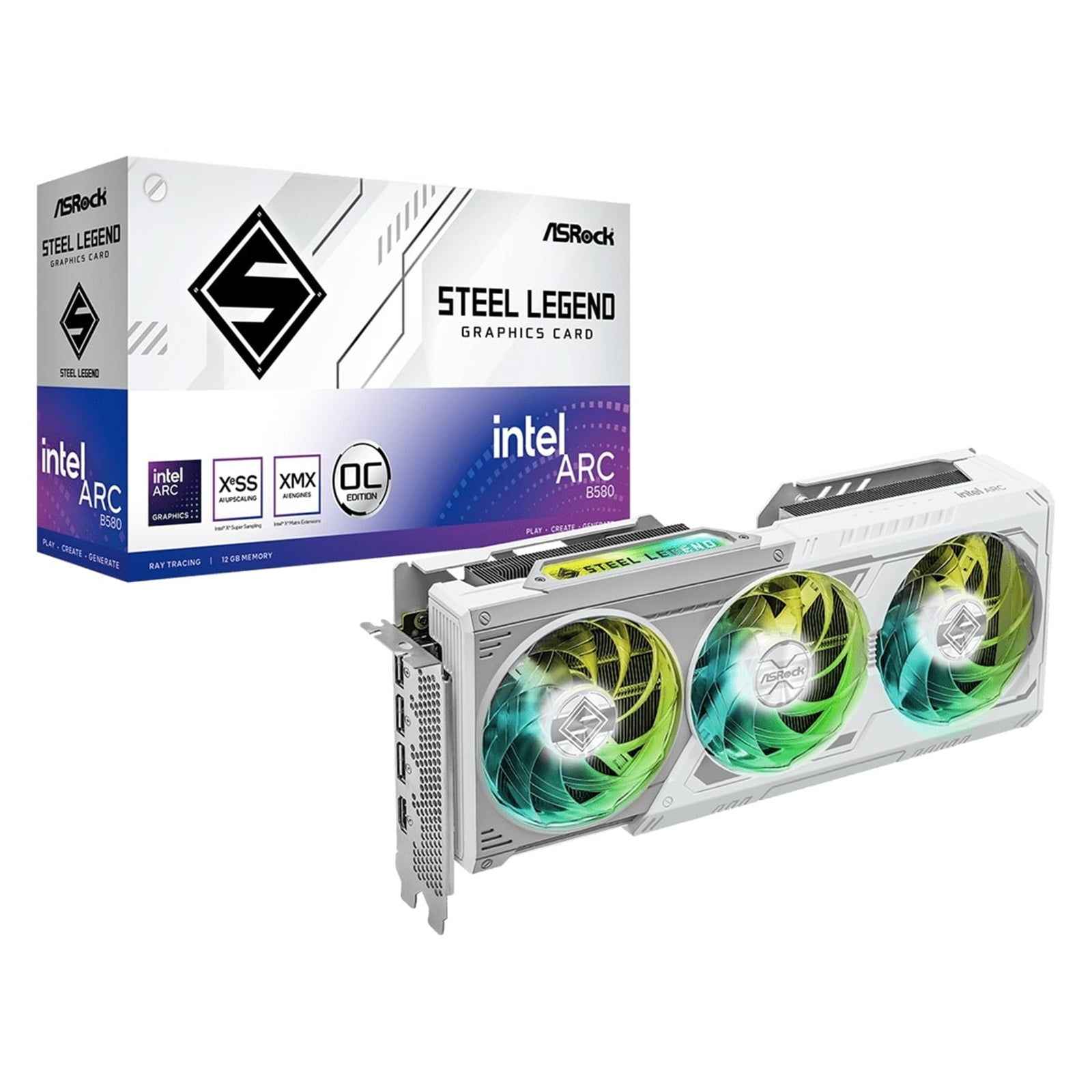

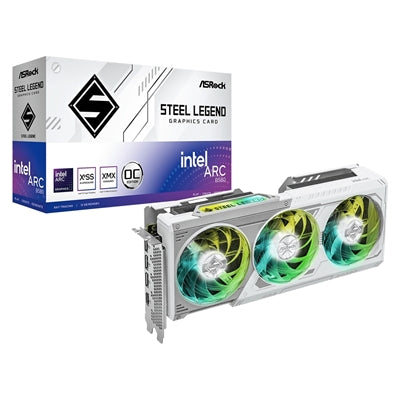

ASRock Intel Arc B580 Steel Legend OC 12GB Graphics Card

The ASRock Intel Arc B580 Steel Legend 12GB OC delivers high-performance gaming at 1080p and 1440p resolutions with AI-enhanced upscaling and ray tracing capabilities. Built on Intel's latest Arc B580 architecture, this graphics card features 12GB of GDDR6 memory on a 192-bit interface, 160 Intel XMX AI engines, and a 2800 MHz base clock for exceptional gaming and content creation performance.

Advanced Triple Fan Cooling System

The triple fan design optimizes thermal management with striped ring fans that enhance airflow efficiency. Air deflecting fins with V-shaped cutting guide airflow through the heatsink quickly and regularly, while ultra-fit heatpipes maximize contact with the GPU baseplate for superior heat dissipation. The 0dB silent cooling technology stops fans completely when temperatures are low, ensuring whisper-quiet operation during light workloads.

Premium Thermal Engineering

A nickel-plated copper base maximizes GPU contact area for effective thermal transfer. High-density metal welding eliminates gaps between heatpipes and stacked fins, while nano thermal paste and premium thermal pads ensure optimal heat transfer across all components. ASRock applies precise screw torque during assembly to optimize cooler mounting pressure without damaging the GPU die.

Polychrome SYNC RGB Lighting

Integrated ARGB LEDs allow you to create custom lighting effects that synchronize with ASRock Polychrome SYNC-compatible motherboards. The LED switch provides on/off control, and the onboard ARGB header supports additional RGB strips and devices for expanded lighting customization.

Stylish White Metal Backplate Design

The white-themed metal backplate prevents PCB bending while delivering a clean, refined aesthetic that complements modern PC builds. The 2.6-slot design measures 298 x 131 x 51mm and weighs 959g.

Intel Arc Gaming Technologies

Intel Xe Super Sampling (XeSS) AI upscaling technology delivers enhanced performance across over 150 supported games. XeSS Frame Generation and Xe Low Latency technologies improve responsiveness and smoothness. The dual media transcoders support cutting-edge AV1 encoding for fast video exports, while the powerful Xe media engine accelerates high-resolution content creation.

AI-Ready Graphics Architecture

Built-in Xe Matrix eXtensions (XMX) engines enable AI experiences including text-to-image generation and AI chatbots through Intel's AI Playground app. These specialized AI engines accelerate gaming performance, content creation workflows, and emerging AI applications.

Connectivity and Display Support

Three DisplayPort 2.1 outputs (one primary supporting UHBR13.5, two supporting UHBR10) and one HDMI 2.1a port provide versatile connectivity for up to four displays simultaneously. Maximum digital resolution reaches 7680 x 4320. The card supports DirectX 12 Ultimate, OpenGL 4.6, and HDCP protection.

Super Alloy Construction

Super Alloy components throughout the graphics card ensure long-term reliability and stable performance under demanding workloads. The PCIe 4.0 x8 interface delivers ample bandwidth, and dual 8-pin power connectors require a recommended 650W PSU.

Intel Arc B580 Steel Legend 12GB OC

Key Features
Polychrome SYNC
Triple Fan Design
Striped Ring Fan
Stylish Metal Backplate
Ultra-fit Heatpipe
Air Deflecting Fin
0dB Silent Cooling
Super Alloy Graphics Card

Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED Switch, Switch On/Off As You Want
You can switch LED on or off depends on the scenarios or your need.

ARGB Header More ARGB, More Fancy
With the ARGB header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.

0dB Silent Cooling, Spin For Cooling, Stop For Silence
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Stylish Metal Backplate Solid, Refined, Cool
Designed to avoid PCB bending. The white-themed outlook makes the graphic card more simple and purified in visual.

Air Deflecting Fin Guide Airflow to Go Through Regularly & Quickly
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-fit Heatpipe Consolidated to Maximize the Contact
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base Maximize GPU Contact Area
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding Improve Heat Dissipation
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal Paste Perfect Thermal Teamwork
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad Better Heat Transfer
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque Optimized Mounting Pressure
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Game Ready, Feature Packed
Enjoy high performance in the latest games at 1080p and 1440p with AI upscaling and ray tracing. Get the performance and features you expect, at the prices you deserve.

Game-Changing, Modern Tech
Increase performance, responsiveness, and more with Intel Arc gaming technologies.
Get exceptional performance and visual quality in over 150 games enabled with AI-boosted, Intel Xe Super Sampling (XeSS) technology.
Make your games play smoother and more responsive with Intel XeSS Frame Generation and Intel Xe Low Latency technologies from Intel.

Up-To-Date, Software Releases
Stay up to date with regular software releases supporting the latest games and get consistently improved gaming experiences.

A versatile Creator Toolkit
Save time and export videos quickly with twin media transcoders supporting dual-encode. Create content with support for the most popular media formats including cutting-edge AV1.
The powerful Xe media engine enables you to create and edit content quickly in high-res.

Built To Explore AI
Explore the latest AI experiences such as text to image generation and AI chatbots right on your PC. AI Playground, a free and private1 app, brings AI capabilities together into an easy-to-use experience.
Enjoy enhanced gaming, speed through creating, and more with specialized AI Engines built into Intel Arc Graphics called Xe Matrix eXtensions (XMX).

Specification

Graphics Engine
Intel Arc B580 Graphics

Bus Standard
PCI Express4.0 x8

DirectX
12 Ultimate

OpenGL
4.6

Memory
12GB GDDR6

Engine Clock
2800 MHz

Intel XMX Engines
160

Memory Clock
19 Gbps

Memory Interface
192-bit

Resolution
Digital Max Resolution: 7680 x 4320

Interface
1 x DisplayPort 2.1 (Primary, up to UHBR13.5)
2 x DisplayPort 2.1 (Up to UHBR10)
1 x HDMI 2.1a

HDCP
Yes

Multi-View
4

Recommended PSU
650W

Power Connector
2x 8-pin

Accessories
1x Quick Installation Guide

Dimensions
298 x 131 x 51 mm, 2.6-slot

Net Weight
959 g

• Chipset Manufacturer: Intel
• Chipset Series: Arc
• Chipset: B580
• Form Factor: 2x ATX
• Memory: 12GB
• Fans: 3
• RGB: Yes
