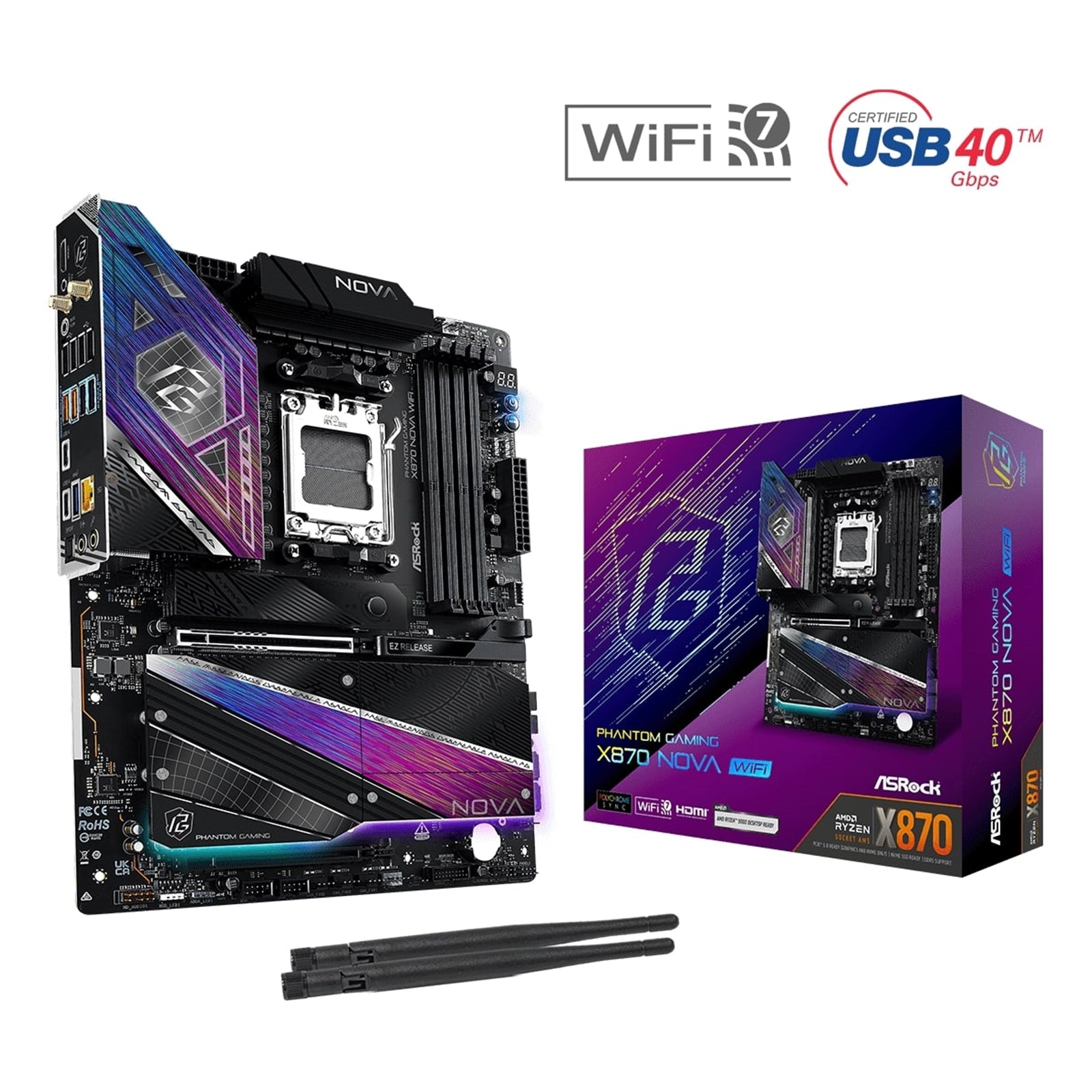

ASRock Phantom Gaming X870 Nova WiFi AM5 Motherboard

The ASRock Phantom Gaming X870 Nova WiFi delivers exceptional performance for AMD Ryzen 9000, 8000, and 7000 series processors. Built on the AMD X870 chipset with ATX form factor, this motherboard combines cutting-edge connectivity with robust power delivery for enthusiast gaming and productivity builds.

Advanced Power Delivery and Stability

Featuring an 18+2+1 power phase design with 80A Smart Power Stage technology, the X870 Nova WiFi ensures smooth, stable power delivery to your CPU. Exclusive 20K capacitors with 1000uF capacitance provide extended lifespan up to 20,000 hours while reducing ripple and maintaining stable output current. Hi-Density Power Connectors withstand higher currents during heavy overclocking, delivering enhanced system stability and reliability.

DDR5 Memory and Storage Performance

Four DDR5 DIMM slots support up to 256GB of memory with speeds reaching 8400+ MHz through XMP and EXPO profiles. Server-grade low-loss PCB construction ensures optimal signal integrity for both memory overclocking and PCIe 5.0 performance. The motherboard includes five M.2 slots: two PCIe Gen5 x4 sockets (128 Gb/s), two PCIe Gen4 x4 Hyper M.2 sockets (64 Gb/s), and one PCIe Gen3 x2 socket with SATA3 support, plus two SATA3 6.0 Gb/s connectors.

Next-Generation Connectivity

Dual USB4 Type-C ports deliver blazing 40 Gbps data transfer rates with support for HDCP 2.3 and 8K 30Hz display output. The integrated WiFi 7 (802.11be) module provides extreme wireless speeds with Multi-link Operation technology, supporting 2.4GHz/5GHz/6GHz frequency bands and 160MHz channel bandwidth. Optimized 5 Gb/s LAN with Realtek RTL8126 controller features superior electromagnetic interference resistance for stable high-speed networking.

Enhanced Graphics and Audio

PCIe 5.0 x16 slot supports the latest graphics cards, while integrated AMD RDNA graphics output through HDMI 2.1 (4K 120Hz) and USB4 ports. Nahimic Audio powered by Realtek ALC4082 codec delivers 7.1 CH HD audio with individual PCB layers for left and right channels, ensuring crystal-clear sound with static noise suppression and echo cancellation.

Intelligent Thermal Management

Optimized aluminum heatsinks efficiently dissipate heat from VRM and M.2 drives during intensive workloads. Seven fan headers with smart fan speed control, including dedicated CPU, chassis, AIO pump, and water pump connectors, provide comprehensive cooling management. The 8-layer 2oz copper PCB construction enhances thermal performance and signal integrity.

Premium Features for Enthusiasts

Lightning Gaming Ports reduce jitter and latency for competitive gaming peripherals. Ultra USB Power transforms 5V from the 12V rail for stable power delivery and reduced noise. Front panel USB 3.2 Gen2x2 Type-C header supports up to 20 Gbps transfer speeds. BIOS Flashback button enables easy firmware updates, while Dr. Debug LED and onboard power/reset buttons simplify troubleshooting. Polychrome RGB headers and Signal RGB support allow extensive lighting customization across compatible devices.

Specifications

Unique Features

Superb Productivity
PCIe Gen5 (Graphics, M.2)
Dual Channel DDR5
USB4 Type-C Ports (40 Gb/s)

Rock-Solid Durability
Server-Grade Low-Loss PCB
18+2+1 Power Phase, 80A SPS for Vcore+SOC with Enlarged Heatsink Armor
Flexible Integrated I/O Shield
20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming
5G LAN, 802.11be Wi-Fi 7 Module
ASRock Lightning Gaming Ports

EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer

CPU
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

Chipset
AMD X870

Memory
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8400+(OC)
Max. capacity of system memory: 256GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS
256Mb AMI UEFI Legal BIOS with GUI support

Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz

Audio
7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
Individual PCB Layers for R/L Audio Channel
Nahimic Audio

LAN
5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
Realtek RTL8126

Wireless LAN
802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/be
Supports 2.4GHz/5GHz/6GHz frequency band
Supports 160MHz channel bandwidth with 6GHz frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.4
Supports MU-MIMO

Slots
CPU:
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage
CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
1 x M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_5, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
2 x SATA3 6.0 Gb/s Connectors

RAID
Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB
CPU:
2 x USB4 Type-C (Rear)
1 x USB 3.2 Gen2 Type-A (Rear (USB32_3)
1 x USB 3.2 Gen1 Type-A (Rear (USB32_1) Chipset:
1 x USB 3.2 Gen2x2 Type-C (Front)
1 x USB 3.2 Gen2 Type-A (Rear (USB32_4)
6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front)
8 x USB 2.0 (4 Rear, 4 Front)

Connector
1 x Thermistor Cable Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED

Rear Panel I/O
2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x USB4 Type-C Ports (40 Gb/s)
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.)
3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.)
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x Clear CMOS Button
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)

Software and UEFI
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

Accessories
4 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
1 x ARGB Splitter Cable
3 x Thermistor Cables

Form Factor
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
8 Layer PCB
2oz Copper PCB

OS
Microsoft Windows 10 64-bit / 11 64-bit

Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD X870
• Form Factor: ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe Gen 5
• USB C: 2
