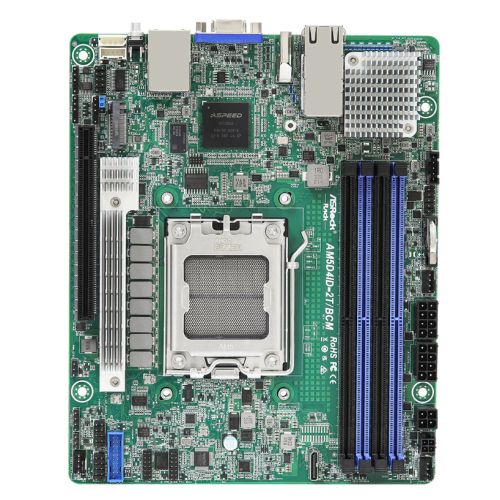

ASRock Rack AM5D4ID-2T/BCM Deep Mini ITX Server Motherboard

The ASRock Rack AM5D4ID-2T/BCM delivers enterprise-grade server capabilities in a compact Deep Mini ITX form factor (6.7" x 8.2"). Built on the AMD AM5 socket with Knoll3 X300 chipset, this server motherboard supports AMD EPYC 4004 and Ryzen 9000/8000/7000 Series processors with thermal design power up to 120W air-cooled or 170W liquid-cooled configurations.

High-Performance Memory and Processing

Equipped with 4 DIMM slots supporting dual-channel DDR5 ECC and non-ECC UDIMM memory, the AM5D4ID-2T/BCM accommodates up to 192GB total capacity with 48GB per DIMM. Memory speeds reach 5200 MHz in single DIMM per channel configurations and 3600 MHz in dual DIMM per channel setups, operating at 1.1V for optimal power efficiency.

Enterprise Networking with Dual 10GbE

The motherboard features dual 10 Gigabit Ethernet ports powered by Broadcom BCM57416 controllers, providing high-bandwidth network connectivity for demanding server applications. A dedicated IPMI LAN port enables remote management capabilities through the integrated ASPEED AST2600 baseboard management controller, allowing administrators to monitor and control the system remotely.

Expansion and Storage Options

PCIe 5.0 x16 slot delivers maximum bandwidth for high-performance expansion cards, while an OCuLink connector provides PCIe 4.0 x2 connectivity for external devices. Storage is handled by a single M.2 2280 slot with PCIe 4.0 x4 interface, supporting NVMe drives for fast system and application storage. RAID functionality is supported for data redundancy configurations.

Comprehensive Display and I/O Connectivity

Graphics output options include VGA via the ASPEED AST2600 management controller and HDMI from AMD processors with integrated graphics. Rear panel I/O provides 2x USB 3.2 Gen1 Type-A ports, dual 10GbE RJ45 ports, dedicated IPMI RJ45 port, and a UID button with LED indicator. Front panel headers support an additional 2x USB 3.2 Gen1 Type-A connections.

Flexible Power and Management Features

The motherboard supports both standard ATX power supplies via 4-pin connector with included 24-pin adapter cable and direct 12V DC input through dual 8-pin ATX 12V connectors. Internal headers include system fan connectors, thermal sensor support, TPM module compatibility, SMBus, PMBus, IPMB, and comprehensive debug capabilities through an 80 debug port. Three 4-pin fan headers and thermal sensor support ensure proper cooling management.

Backed by a 3-year warranty, the ASRock Rack AM5D4ID-2T/BCM is engineered for compact server builds, network attached storage systems, and high-performance workstations requiring enterprise-level management and networking capabilities in a space-efficient design.

AM5D4ID-2T/BCM

• Deep mini-ITX (6.7"x 8.2")
• Supports AMD EPYC™ 4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
• 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
• 1 PCIe5.0 x16
• 1 OCuLink (PCIe4.0 x2)
• Supports 1 M.2 (PCIe4.0 x4)
• 2 RJ45 (10GbE) by Broadcom BCM57416
• 1 HDMI
• Remote management (IPMI)

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: Deep Mini ITX
• Socket: AMD AM5
• Chipset: AMD Knoll3 X300
• #Hide#DDR Type: DDR5
• CPU Support: Supports AMD EPYC 4004 & Ryzen 9000/8000/7000 Series CPUs
  Thermal Design Power: 120W (Air)/170W (Liquid)
  Click here for CPU support list
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: "DDR5 288-pin ECC/non-ECC UDIMM
  Max. Capacity per DIMM: 48GB
  5200 MHz (1DPC); 3600 MHz (2DPC)
  Voltage: 1.1V"
• Maximum Memory: 192GB
• Graphics: Yes
• Graphics Ports: ASPEED AST2600: 1 x DB15 (VGA)
  AMD Processors with Graphics: 1 x HDMI
• PCI/PCI Express: 1 x PCIe 5.0 x16
  1 x 1 OCuLink (PCIe 4.0 x2)
• Storage: 1 x M.2 (2280) - PCIe4.0 x4
• RAID: Yes
• Wireless: -
• LAN: Dual 10G LAN & Dedicated IPMI LAN port
• USB Ports Supported: Rear:
  2 x USB3.2 Gen1 Type-A

  Front:
  2 x USB3.2 Gen1 Type-A
• Back Panel I/O Ports: 1 x UID button w/ LED
  1 x DB15 (VGA)
  1 x HDMI
  2 x USB 3.2 Gen1 Type-A
  2 x RJ45 (10GbE)
  1 x Dedicated IPMI RJ45
• Internal I/O Connectors: "1 x (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable
  2 x (8-pin, ATX 12V) support 12V DC-in
  1 x (4-pin) for HDD power when using 12V DC-in power source
  1 x (9-pin) Auxiliary Panel
  1 x (9-pin) System
  1 x COM
  1 x Speaker
  3 x Fan Header (4-pin)
  1 x Thermal Sensor
  1 x TPM (13-pin, SPI)
  1 x SMBus"
• .: 1 x PMBus
  1 x IPMB
  1 x Clear CMOS
  1 x UID (4-pin)
  1 x NCSI (4-pin)
  1 x IPMI LAN LED (4-pin)
  1 x 80 debug port (13-pin)
  1 x USB 3.2 Gen1 (19-pin)
• Additional Features: See manufacturers website for more details
• Package Type: Retail
• Package Weight: 1.0100 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 10GB LAN
