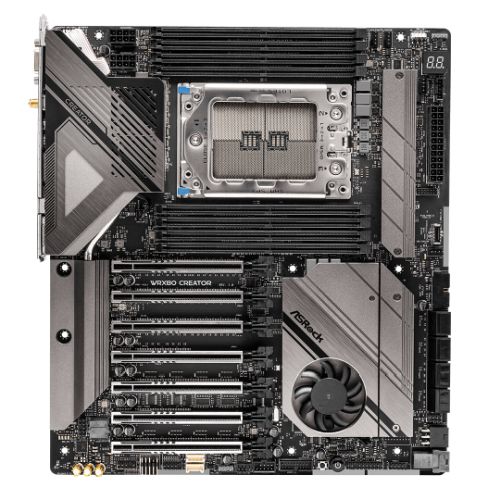

ASRock WRX80 Creator R2.0 Professional Workstation Motherboard

The ASRock WRX80 Creator R2.0 is a professional-grade EATX motherboard designed for AMD Ryzen Threadripper PRO 3000WX and 5000WX series processors. Built on the AMD WRX80 chipset with sWRX8 socket, this motherboard delivers enterprise-level performance for content creation, deep learning, simulation, and rendering workloads.

Advanced Power Delivery and Stability

Featuring an 8-phase power design with 105A Smart Power Stage (SPS) technology, the WRX80 Creator R2.0 ensures stable power delivery for demanding professional applications. The 14-layer server-grade low-loss PCB with 2oz copper inner layers provides exceptional signal integrity and thermal management. 7W/mK MOSFET thermal pads combined with a composite VRM heatsink featuring dual fans, aluminum fin array, and heat pipes maintain optimal operating temperatures during sustained workloads.

Exceptional Memory and Storage Capabilities

The motherboard supports 8-channel DDR4 memory up to 2TB capacity, with speeds reaching DDR4-4533+ when overclocked. Memory configurations support both ECC and non-ECC, buffered and unbuffered modules including R-DIMM and 3DS R-DIMM. Storage connectivity includes 8 SATA III ports, two Hyper M.2 slots (PCIe Gen4 x4), one M.2 slot supporting both PCIe Gen4 x4 and SATA3, plus a U.2 connector for maximum flexibility.

Professional Expansion and Connectivity

Seven PCIe 4.0 x16 slots utilizing Surface Mount Technology provide full-speed bandwidth for multi-GPU configurations and professional add-on cards. The motherboard includes dual Marvell (Aquantia) 10GbE LAN ports for high-speed networking, plus a dedicated IPMI LAN port with Aspeed AST2500 BMC controller for remote management. Intel Wi-Fi 6E (802.11ax) with 6GHz band support and Bluetooth connectivity are integrated.

Thunderbolt 4 and USB Connectivity

Two Thunderbolt 4 Type-C ports deliver 40Gbps transfer speeds with PD 3.0 fast charging up to 27W. Additional USB connectivity includes five USB 3.2 Gen2 ports (one front Type-C, four rear Type-A), six USB 3.2 Gen1 ports, and two USB 2.0 headers. The flexible integrated I/O shield features adjustable tolerance for perfect chassis fitment.

Premium Audio and RGB Lighting

Dual Realtek ALC4050H and ALC1220 codecs provide 7.1-channel HD audio with Nahimic Audio enhancement technology. The motherboard includes onboard RGB headers and addressable RGB headers compatible with Polychrome RGB Sync-certified accessories for customizable lighting effects.

Backed by a 3-year replacement warranty, the ASRock WRX80 Creator R2.0 delivers professional reliability and performance for demanding workstation applications.
