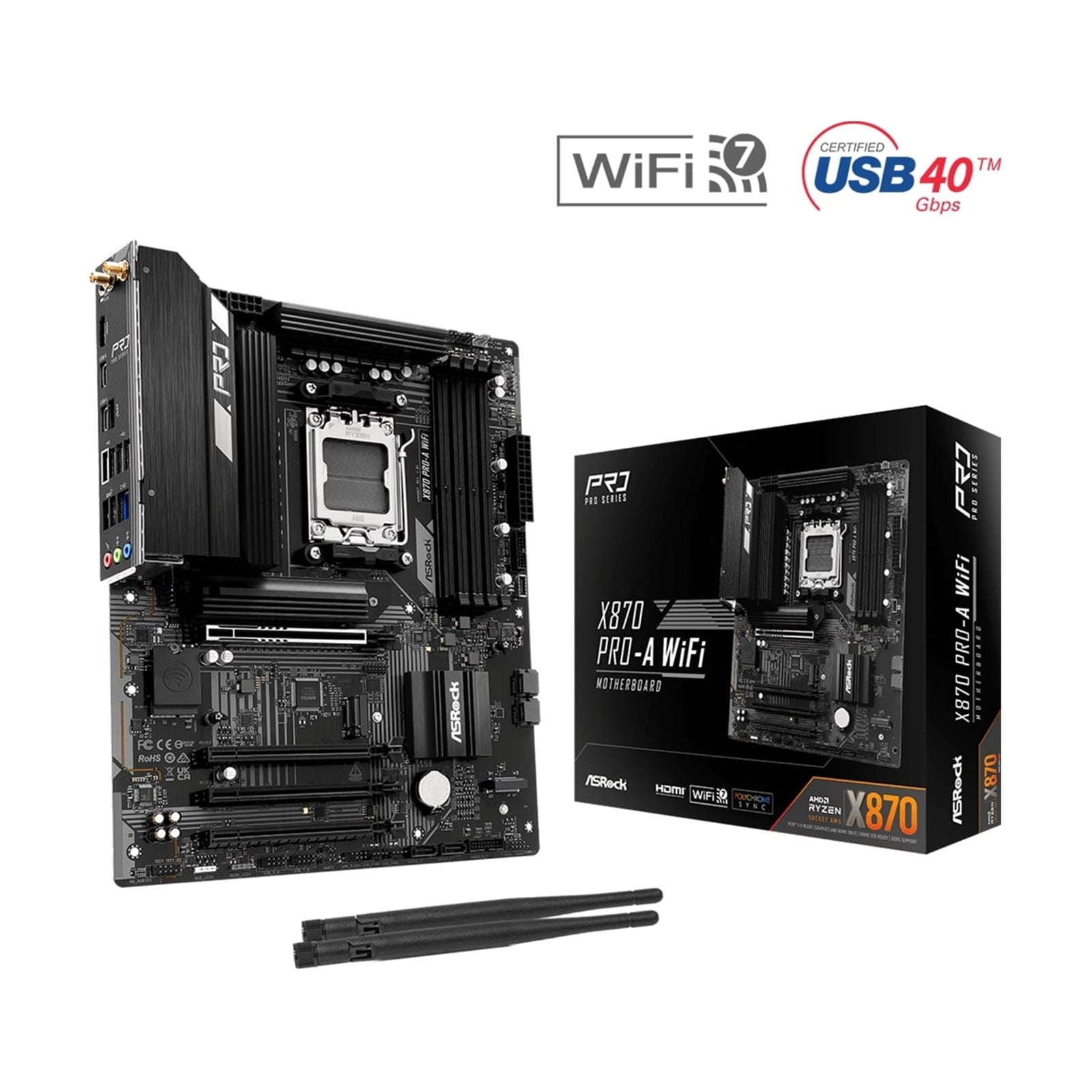

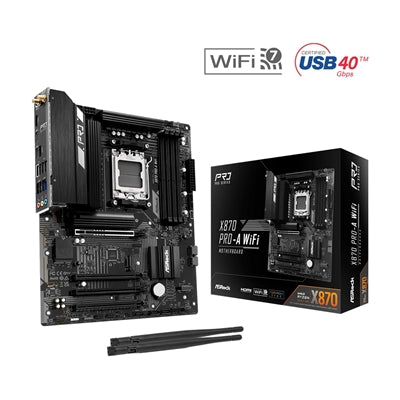

ASRock X870 Pro-A WiFi AMD AM5 Motherboard

The ASRock X870 Pro-A WiFi delivers reliable performance and enhanced stability for AMD Ryzen 9000, 8000, and 7000 series processors. Built on the AMD X870 chipset with ATX form factor, this motherboard combines robust power delivery with cutting-edge connectivity for demanding computing tasks.

Robust Power Delivery System

The 16+2+1 power phase design with 80A Dr.MOS provides stable power delivery to the CPU, VCore, SOC, and MISC components. Durable capacitors with 1000uF capacitance ensure reduced power fluctuations and stable output current under high loads. The Hi-Density Power Connectors withstand higher currents compared to traditional connectors, enabling reliable overclocking performance. An 8-layer PCB design delivers stable signal traces and power shapes for optimal memory overclocking.

DDR5 Memory Support

Four DDR5 DIMM slots support memory speeds up to 8000+ MHz (OC) with a maximum capacity of 256GB. Intel XMP and AMD EXPO profile support enables easy memory overclocking for enthusiasts seeking maximum performance from their DDR5 modules.

High-Speed Storage Solutions

The Blazing M.2 Socket (M2_1) supports PCIe Gen5 x4 with 128Gb/s transfer speeds, ready for next-generation ultrafast SSDs. Additional M.2 sockets include one PCIe Gen4 x4 slot (M2_3) and one hybrid SATA3/PCIe Gen3 x2 slot (M2_2). Four SATA3 6.0 Gb/s connectors provide ample storage expansion. Enhanced M.2 cooling with bottom heatsinks dissipates heat efficiently through the PCB for sustained performance.

Advanced Connectivity

Two USB4 Type-C ports deliver 40 Gbps data transfer rates with support for 8K 30Hz video output and HDCP 2.3. The Dragon 2.5G LAN provides 2.5X bandwidth compared to standard gigabit Ethernet. WiFi 7 (802.11be) technology with Multi-link Operation (MLO) enables simultaneous use of multiple bands for reduced latency and increased throughput, perfect for cloud gaming and 8K streaming. Bluetooth 5.4 support rounds out the wireless capabilities.

Expansion and Graphics

One PCIe 5.0 x16 slot (PCIE1) supports the latest graphics cards, while three additional PCIe 4.0 slots provide expansion flexibility. AMD CrossFire multi-GPU configurations are supported. Integrated AMD RDNA graphics output through one HDMI 2.1 port supporting 4K 120Hz with HDR and HDCP 2.3.

Enhanced Audio and RGB

Realtek ALC897 7.1 CH HD Audio with Nahimic Audio technology delivers immersive sound with static noise suppression, echo cancellation, and voice stabilization. Sound Tracker provides 360-degree positional audio visualization for gaming. Onboard RGB and addressable RGB headers support Polychrome RGB Sync and SignalRGB for unified lighting customization.

Intelligent Cooling and Features

Optimized aluminum heatsink design with enlarged heatsink armor manages thermal performance during intensive workloads. Six fan connectors with smart fan speed control (two CPU, three chassis, one AIO pump) enable comprehensive cooling management. BIOS Flashback button, ASRock Auto Driver Installer, and EZ Troubleshooter simplify setup and maintenance.

Specifications

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD X870
• Form Factor: ATX (12.0" x 9.6")
• Memory Slots: 4 x DDR5 (up to 256GB, 8000+ MHz OC)
• Storage: 1 x PCIe 5.0 M.2, 1 x PCIe 4.0 M.2, 1 x PCIe 3.0/SATA M.2, 4 x SATA3
• USB: 2 x USB4 Type-C (40 Gbps), 2 x USB 3.2 Gen2, 6 x USB 3.2 Gen1, 8 x USB 2.0
• Network: 2.5G LAN, WiFi 7 (802.11be), Bluetooth 5.4
• Audio: Realtek ALC897 7.1 CH with Nahimic
