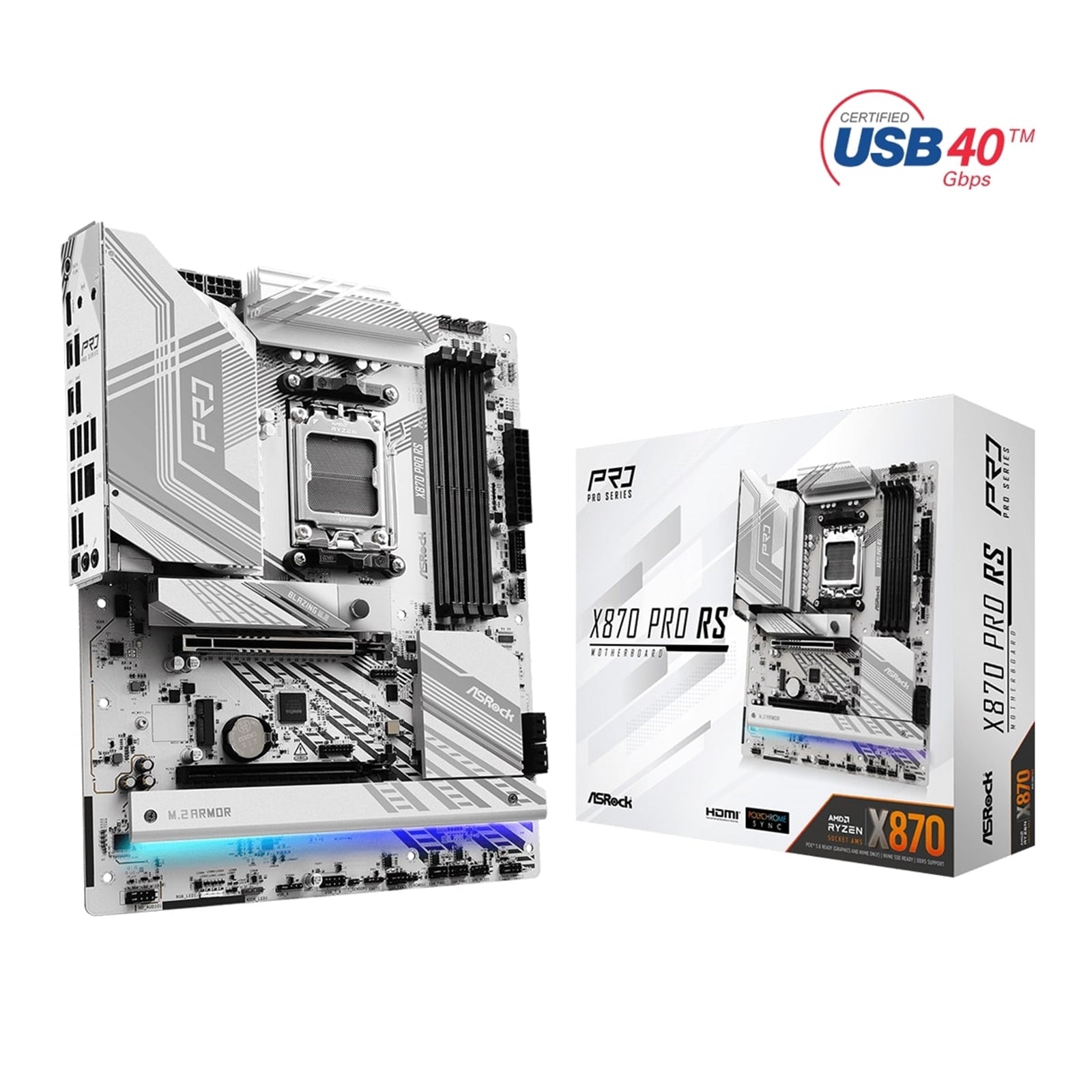

ASRock X870 PRO RS AMD AM5 ATX Motherboard

The ASRock X870 PRO RS delivers exceptional performance for AMD Ryzen 9000, 8000, and 7000 series processors. Built on the AMD X870 chipset, this ATX motherboard features a robust 14+2+1 phase power design with 80A Dr.MOS for VCore+SOC, ensuring stable power delivery for demanding workloads and overclocking.

DDR5 Memory and Storage

Equipped with 4 DDR5 DIMM slots supporting dual-channel configurations up to 8000+ MHz (OC), the X870 PRO RS provides maximum memory bandwidth. Storage options include one PCIe Gen5x4 Blazing M.2 socket delivering 128GB/s transfer speeds, one PCIe Gen4x4 Hyper M.2 socket, one Ultra M.2 socket supporting both PCIe Gen3x4 and SATA3, plus four SATA3 6.0 Gb/s connectors. The toolless M.2 heatsink design with anti-drop screws simplifies installation while maintaining optimal thermal performance.

Connectivity and Expansion

Two USB4 Type-C rear ports provide 40 Gb/s data transfer speeds, while the front panel supports USB 3.2 Gen2x2 Type-C at 20 Gb/s. The motherboard features one PCIe 5.0 x16 slot with reinforced steel construction and 15µ gold contacts, plus one PCIe 4.0 x16 slot operating in x4 mode. The Realtek 2.5G LAN with Dragon software delivers optimized network performance for gaming and content creation.

Premium Audio and Graphics

The Realtek ALC1220 7.1 CH HD audio codec with Nahimic Audio technology provides immersive sound with noise suppression, echo cancellation, and Sound Tracker for competitive gaming. Graphics output options include one HDMI 2.1 port supporting 4K 120Hz and two USB4 ports capable of 8K 30Hz output, with HDCP 2.3 support across all display connections.

Cooling and Power Management

The 8-layer PCB design ensures stable signal traces and efficient power delivery. Seven fan headers with smart fan speed control include two CPU fan connectors, four chassis fan connectors, and one AIO pump connector. The enlarged aluminum heatsink armor with 1000uF capacitance durable capacitors provides superior thermal management under sustained loads.

User-Friendly Features

The flexible integrated I/O shield eliminates installation hassles, while the BIOS Flashback button enables firmware updates without CPU, RAM, or other components installed. ASRock Auto Driver Installer streamlines driver installation, and the Polychrome RGB system allows customization of onboard RGB and addressable RGB headers for compatible LED devices.

• Socket: AM5
• CPU Compatibility: AMD Ryzen 7000
• Chipset: AMD X870
• Form Factor: ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility:
• USB C: Yes
