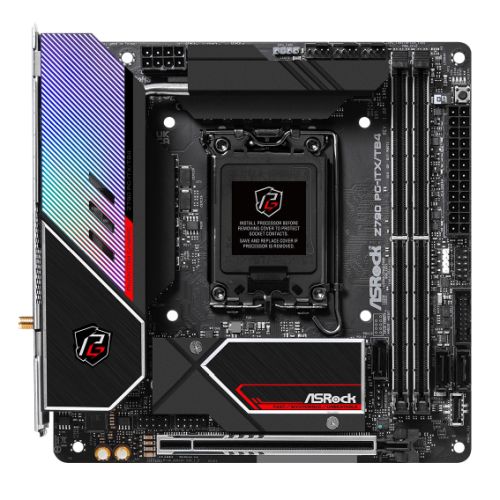

ASRock Z790 PG-ITX/TB4 Mini ITX Motherboard

The ASRock Z790 PG-ITX/TB4 delivers high-performance computing in a compact Mini ITX form factor. Built on the Intel Z790 chipset with LGA 1700 socket, this motherboard supports 13th and 12th Gen Intel Core processors, making it ideal for small form factor builds that don't compromise on power.

DDR5 Memory Performance

Equipped with 2 DDR5 DIMM slots supporting speeds up to 6800MHz (OC) and a maximum capacity of 128GB, this motherboard features reinforced surface-mounted DIMM slots for improved stability during extreme overclocking. The 10-layer PCB design ensures stable signal traces and efficient power delivery for optimal memory performance. ASRock's DIY-friendly protection circuit prevents accidental damage during DDR5 module installation or removal.

Advanced Power Delivery

The 10+1+1 phase power design with Smart Power Stage (SPS) technology provides clean, efficient power delivery to the CPU. Dr.MOS design monitors current and temperature of each phase, enabling enhanced overclocking capabilities while maintaining lower operating temperatures for sustained performance.

PCIe 5.0 and Storage Options

Features one PCIe 5.0 x16 slot with surface-mount technology for improved signal integrity and maximum bandwidth of 128GB/s. Storage flexibility includes three M.2 slots (one supporting both PCIe Gen4x4 and SATA3, two supporting PCIe Gen4x4) plus three SATA III ports. RAID 0, 1, and 5 support is available for both SATA and M.2 NVMe devices.

Thunderbolt 4 Connectivity

Dual USB4 Thunderbolt 4 Type-C ports deliver 40Gbps data transfer speeds and support up to 8K 60Hz display output with HDCP 2.3. Fast charging capability provides up to 27W (9V@3A) via PD 3.0. Additional display outputs include HDMI 2.1 and DisplayPort 1.4.

Killer Networking Suite

The Killer E3100 2.5G Ethernet controller and Killer AX1675 WiFi 6E module with Bluetooth provide premium networking performance. Killer DoubleShot Pro technology allows simultaneous use of both wired and wireless connections for combined throughput up to 4.9Gbps, with intelligent traffic prioritization for gaming and streaming applications.

Premium Audio and RGB

Realtek ALC4082 audio codec delivers 7.1 channel HD audio with Nahimic Audio enhancement for immersive sound across all output devices. Onboard RGB and addressable RGB headers enable customizable lighting effects through Polychrome RGB Sync.

Comprehensive I/O

Rear panel features 2x Thunderbolt 4 Type-C, 6x USB 3.2 Gen2 Type-A, HDMI, DisplayPort, optical SPDIF, and 2.5G LAN. Internal headers support front panel USB 3.2 Gen2x2 Type-C, USB 3.2 Gen1, and USB 2.0 connectivity. Includes 3-year replacement warranty.
