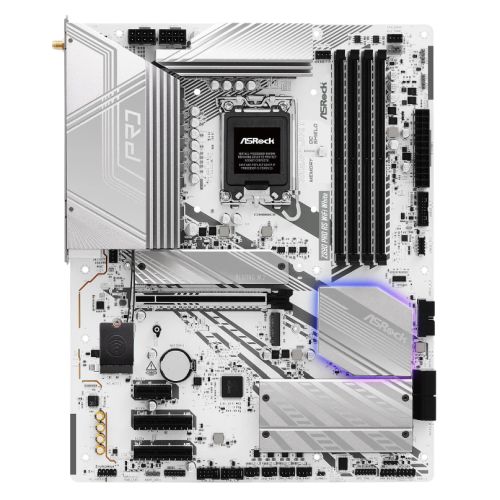

ASRock Z890 PRO RS WiFi WHITE - Intel LGA1851 ATX Gaming Motherboard

The ASRock Z890 PRO RS WiFi WHITE delivers professional-grade performance for Intel Core Ultra Series 2 processors. This white ATX motherboard combines robust power delivery, extensive connectivity, and advanced cooling in a modern aesthetic design.

Advanced Power Delivery System

Engineered with a 16+1+1+1+1 power phase design featuring Dr.MOS technology, this motherboard provides stable power delivery for demanding workloads and overclocking. The durable 1000uF capacitors ensure minimal ripple and consistent output current. Hi-Density power connectors withstand higher current than traditional 8-pin CPU and 24-pin ATX connectors, delivering enhanced system stability. The 2oz copper PCB construction provides superior signal integrity and improved thermal efficiency.

DDR5 Memory Performance

Four DDR5 DIMM slots support dual-channel memory configurations up to 256GB with speeds reaching 8666MHz+ when overclocked. Intel XMP and AMD EXPO profiles enable one-click memory optimization. The exclusive Memory OC Shield reduces electromagnetic interference for enhanced stability during high-frequency operations, allowing users to maximize memory performance reliably.

PCIe 5.0 and Storage Expansion

The primary PCIe 5.0 x16 slot supports the latest graphics cards with full bandwidth. Four M.2 slots accommodate high-speed NVMe SSDs, including one Blazing M.2 slot with PCIe Gen5 x4 interface delivering 128GB/s transfer speeds. Additional storage includes two Hyper M.2 PCIe Gen4 x4 slots and one hybrid M.2 slot supporting both PCIe Gen4 x4 and SATA3. XXL aluminum heatsinks with bottom thermal pads maintain optimal SSD temperatures under sustained workloads.

Connectivity and Networking

WiFi 6E 802.11axe technology extends into the 6GHz spectrum band for reduced latency and improved bandwidth. Realtek 2.5Gb/s LAN provides 2.5x faster networking compared to standard gigabit Ethernet. Two Thunderbolt 4 Type-C ports deliver 40Gbps data transfer speeds and support external displays, storage devices, and power delivery up to 15W. Front panel USB 3.2 Gen2x2 Type-C header enables 20Gbps transfer rates for compatible cases.

Audio and RGB Lighting

Realtek ALC897 7.1 channel HD audio codec with Nahimic Audio enhancement provides immersive sound quality across all output devices. Sound Tracker technology offers 360-degree audio positioning for gaming. Polychrome RGB headers support both standard RGB and addressable RGB LED devices for synchronized lighting effects across compatible components and peripherals.

User-Friendly Features

BIOS Flashback enables firmware updates using only a USB drive and power supply, without requiring CPU or RAM installation. Post Status Checker LED indicators simplify troubleshooting by identifying boot issues. Auto Driver Installer with preloaded LAN drivers streamlines initial system setup. Multiple fan headers with automatic PWM/DC detection and Fan-Tastic Tuning software provide precise cooling control.

The Z890 PRO RS WiFi WHITE combines professional specifications with practical features for enthusiasts building high-performance Intel LGA1851 systems.
