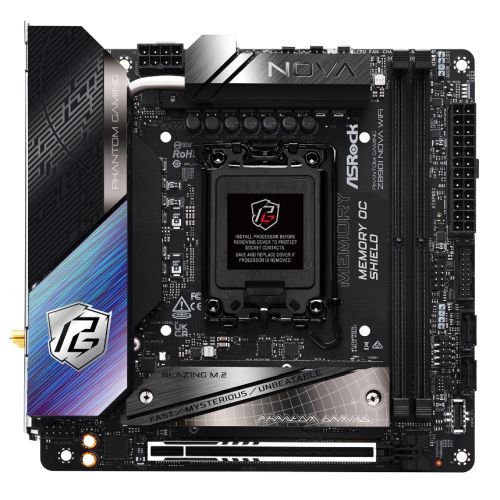

ASRock Z890I NOVA WIFI Mini ITX Motherboard

The ASRock Z890I NOVA WIFI delivers high-performance computing in a compact Mini ITX form factor. Built for Intel Core Ultra Processors (Series 2) with LGA1851 socket, this motherboard combines the latest Intel Z890 chipset with cutting-edge connectivity and power delivery features.

Advanced Power Delivery System

Equipped with a 12+1+1+1+1 phase power design featuring 110A Smart Power Stage for VCore, this motherboard ensures stable power delivery for demanding workloads and overclocking. The exclusive 20K Black capacitors with 1000uF capacitance extend lifespan to 20,000 hours while improving power stability. The 10-layer PCB with 2oz copper inner layers provides superior signal integrity and thermal performance.

DDR5 Memory Performance

Two DDR5 DIMM slots support dual-channel configurations up to 9866MHz+ (OC) with a maximum capacity of 128GB. Intel XMP and AMD EXPO profiles enable easy overclocking, while the patented Memory OC Shield reduces electromagnetic interference for enhanced stability during high-frequency operations.

High-Speed Storage Options

Three M.2 slots provide extensive storage flexibility: one Blazing M.2 with PCIe Gen5 x4 support delivering 128GB/s transfer speeds, one Hyper M.2 with PCIe Gen4 x4, and one Hyper M.2 supporting both PCIe Gen4 x4 and SATA3. Each M.2 slot features an XXL aluminum heatsink with anti-drop screw design for optimal thermal management. Two additional SATA3 ports expand storage capabilities.

Next-Generation Connectivity

Dual Thunderbolt 4 Type-C ports deliver 40Gbps data transfer rates and support external displays, devices, and up to 15W Power Delivery 3.0. Wi-Fi 7 (802.11be) technology with Multi-link Operation provides extreme wireless speeds across 2.4GHz, 5GHz, and 6GHz bands, ideal for cloud gaming and 8K streaming. The optimized 5Gb/s LAN connector features patent-pending electromagnetic interference resistance for stable network performance.

Comprehensive I/O

Rear panel includes six USB 10Gbps Type-A ports, two Thunderbolt 4 Type-C ports, HDMI output, optical SPDIF, and audio jacks. Front panel headers support USB 20Gbps Type-C, USB 5Gbps, and USB 2.0 connections. The PCIe 5.0 x16 slot accommodates the latest graphics cards and supports riser card configurations.

Premium Audio and RGB

Realtek ALC4082 7.1 CH HD audio codec with Nahimic Audio delivers immersive sound quality across all audio devices. Polychrome RGB headers and addressable RGB headers with included splitter cable enable synchronized lighting effects across compatible accessories.

Intelligent Thermal Management

Composite VRM heatsink combines cooling fan, aluminum sink, and heat pipe for maximum heat dissipation. PWM/DC fan headers with auto-detection, thermistor cable for custom monitoring, and Fan-Tastic Tuning software provide complete thermal control.

Convenient Features

BIOS Flashback enables firmware updates without CPU or RAM installed. Auto Driver Installer pre-installs LAN drivers for hassle-free setup. Flexible integrated I/O shield with adjustable tolerance ensures perfect chassis fitment.
