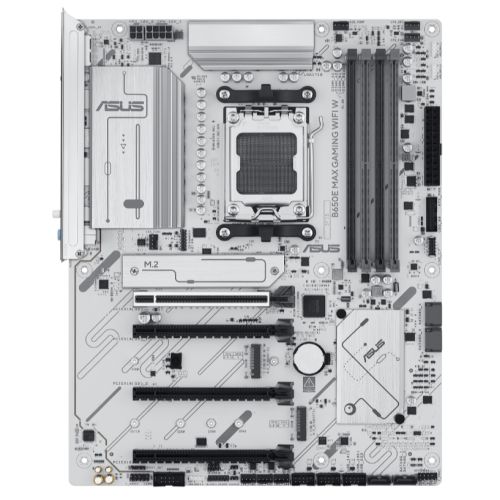

ASUS B650E MAX GAMING WIFI W - White ATX Motherboard for AMD Ryzen Processors

The ASUS B650E MAX GAMING WIFI W delivers robust performance and connectivity for AMD Ryzen 9000, 8000, and 7000 Series processors. This white ATX motherboard combines the AMD B650 chipset with comprehensive features designed for gaming builds and performance-driven systems.

Power and Performance

Built with an 8+2+1 phase digital power design and discrete MOSFETs, this motherboard ensures stable power delivery for demanding workloads. The six-layer PCB design optimizes thermal management, while ASUS OptiMem II technology provides unrestricted memory bandwidth access through carefully mapped signal pathways across PCB layers.

DDR5 memory support reaches speeds up to 8000+MT/s with overclocking, accommodating up to 256GB across four DIMM slots. AMD EXPO and ASUS AEMP support enables easy memory performance tuning through the intuitive UEFI BIOS interface.

Connectivity and Expansion

PCIe 5.0 readiness includes a full x16 slot for next-generation graphics cards and an M.2 slot supporting transfer speeds up to 128Gbps. Three total M.2 slots provide flexible storage configurations, while four SATA III ports offer additional expansion options.

Networking capabilities include integrated Wi-Fi 6E with 2x2 antenna support across 2.4/5/6GHz bands, Bluetooth 5.3, and Realtek 2.5Gb Ethernet with LANGuard protection. Rear I/O features USB 10Gbps Type-A and Type-C ports, DisplayPort and HDMI outputs for integrated graphics, plus a Thunderbolt (USB4) header for optional expansion.

Thermal Management

Comprehensive cooling includes VRM heatsinks with thermal pads, flexible M.2 heatsink coverage, and PCH cooling. Six hybrid fan headers support both PWM and DC fans with smart protection circuitry. Fan Xpert 2+ software provides intelligent control with auto-tuning, extreme quiet modes, and support for AIO coolers through the dedicated pump header.

DIY-Friendly Features

Q-LED Core provides visual POST diagnostics, while BIOS FlashBack enables BIOS updates without CPU or memory installation. The pre-mounted I/O shield, Q-Antenna, and SafeSlot reinforced PCIe slots simplify building and ensure secure component installation.

Audio and Aesthetics

Realtek 7.1 surround sound codec with dedicated audio PCB layers and shielding delivers clean audio output. Three addressable RGB Gen 2 headers support Aura Sync lighting control through Armoury Crate software, enabling synchronized RGB effects across compatible devices.

Backed by a 3-year warranty, the B650E MAX GAMING WIFI W includes SATA cables, Wi-Fi antenna, M.2 mounting hardware, and quick start guide.
