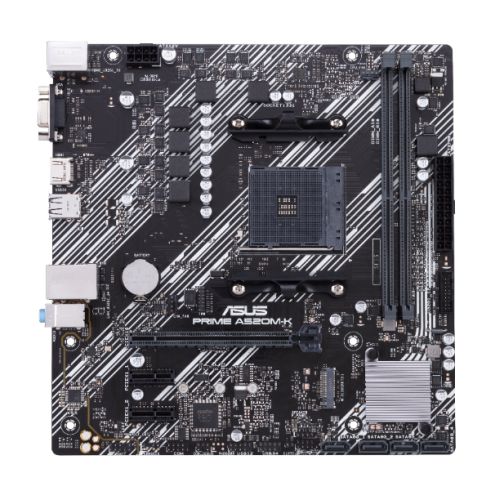

AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A

• AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
• Comprehensive cooling: PCH heatsink and Fan Xpert
• Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
• 5X Protection III: Multiple hardware safeguards for all-around system protection

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM4
• Chipset: AMD A520
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support

  *Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: 4600(O.C.)/4400(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz
• Maximum Memory: 64GB
• Graphics: Integrated Graphics Processor*

  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
• Multi-GPU Support: -
• PCI/PCI Express: 1 x PCIe 3.0 x16 (supports x16 mode)
  2 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - SATA & PCIe
• RAID: "RAID 0, 1, 10"
• Wireless: -
• LAN: GB LAN
• Audio: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)"
• Back Panel I/O Ports: 4 x USB 3.2 Gen1
  2 x USB 2.0
  1 x D-Sub
  1 x HDMI
  1 x Realtek RTL8111H 1Gb Ethernet
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin Chassis Fan
  1 x 24-pin Main Power
  1 x 8-pin +12V Power
  1 x M.2 slot (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1
  2 x USB 2.0
  1 x Clear CMOS
  1 x COM Port
  1 x Front Audio
  1 x S/PDIF Out
• .: 1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  1 x M.2 SSD screw package
  1 x Support DVD
  1 x User manual
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.8300 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
