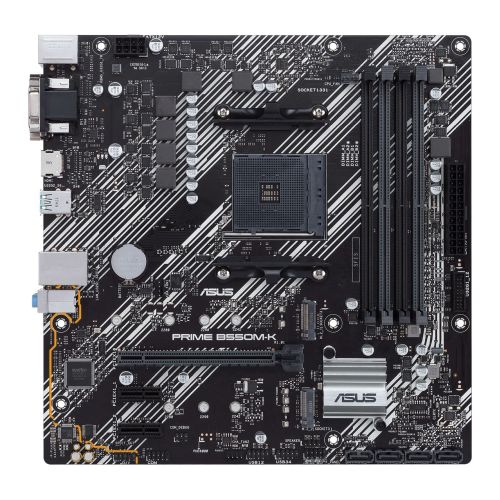

ASUS PRIME B550M-K AMD B550 Micro ATX Motherboard

The ASUS PRIME B550M-K is a Micro ATX motherboard engineered for 3rd Generation AMD Ryzen processors on the AM4 socket. Built on the AMD B550 chipset, this motherboard delivers PCIe 4.0 support, dual M.2 slots, and comprehensive connectivity options for daily computing and DIY PC builds.

AMD AM4 Socket Platform

Compatible with 3rd Gen AMD Ryzen processors, the PRIME B550M-K provides a solid foundation for modern computing. The AM4 socket supports a wide range of Ryzen CPUs, delivering the performance needed for productivity and multitasking workloads. Note: Not compatible with Ryzen 5 3400G and Ryzen 3 3200G APUs.

DDR4 Memory Support

Four DIMM slots support dual-channel DDR4 memory up to 128GB capacity. Memory speeds up to 4600MHz (O.C.) are supported with 3rd Gen Ryzen CPUs, with native support for DDR4-3200. This configuration provides bandwidth for demanding applications and multitasking scenarios.

PCIe 4.0 Connectivity

The motherboard features one PCIe 4.0 x16 slot for graphics cards, delivering double the bandwidth of PCIe 3.0. Two additional PCIe 3.0 x1 slots provide expansion options for additional cards. Dual M.2 slots support NVMe SSDs with PCIe 4.0 speeds up to 64 Gbps, with support for drives up to 22110 length.

Storage Configuration

Storage options include four SATA III 6Gb/s ports and two M.2 slots supporting both SATA and PCIe modes. RAID 0, 1, and 10 configurations are supported for enhanced performance or data redundancy. The flexible storage layout accommodates multiple drives for various build requirements.

Display Outputs

Three display outputs provide flexibility for integrated graphics: VGA (D-Sub), DVI-D, and HDMI ports. This configuration supports multi-monitor setups when using AMD Ryzen processors with integrated graphics.

Cooling and Power Design

The PRIME B550M-K includes a PCH heatsink and hybrid fan headers configurable through Fan Xpert 2+ software or UEFI BIOS. One CPU fan header and two chassis fan headers provide cooling control for system stability under sustained workloads.

Connectivity and Audio

Gigabit Ethernet provides wired network connectivity. USB options include two USB 3.2 Gen 2 Type-A ports (10Gbps), six USB 3.2 Gen 1 ports, and four USB 2.0 ports across rear I/O and internal headers. Realtek ALC887 codec delivers 7.1-channel HD audio with audio shielding and separate layers for left and right tracks to minimize interference.

5X Protection III

Multiple hardware safeguards provide system protection including overvoltage protection, overcurrent protection, and ESD guards for USB and LAN ports, ensuring component longevity and reliable operation.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM4
• Chipset: AMD B550
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support

  *Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 3rd Gen AMD Ryzen CPUs:
  4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz

  Next Gen AMD Ryzen PRO CPUs:
  4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz
• Maximum Memory: 128GB
• Graphics: Integrated Graphics Processor*

  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x DVI-D
  1 x HDMI
• Multi-GPU Support: -
• PCI/PCI Express: 1 x PCIe 4.0 x16 (x16 mode)
  2 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
  1 x M.2 (2242/2260/2280) - SATA & PCIe
• RAID: "RAID 0, 1, 10"
• Wireless: -
• LAN: GB LAN
• Audio: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "2 x USB 3.2 Gen2 Type-A (at back)
  6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
  4 x USB 2.0 (mid-board)"
• Back Panel I/O Ports: 1 x PS/2 keyboard/mouse
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45)
  2 x USB 3.2 Gen2 Type-A
  4 x USB 3.2 Gen1 Type-A
  3 x Audio jacks
• Internal I/O Connectors: 1 x CPU Fan
  2 x Chassis Fan
  1 x USB 3.2 Gen1
  2 x USB 2.0
  2 x M.2 Socket 3 with M key
  1 x SPI TPM
  4 x SATA 6Gb/s
  1 x S/PDIF out
  1 x 24-pin EATX
  1 x 8-pin EATX 12V
  1 x Front audio
  1 x Clear CMOS jumper
• .: 1 x System panel
  1 x COM port
  1 x Speaker
• Accessories: Users manual
  I/O Shield
  2 x SATA 6Gb/s cables
  1 x Supporting DVD
  1 x M.2 SSD screw package
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.9100 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
