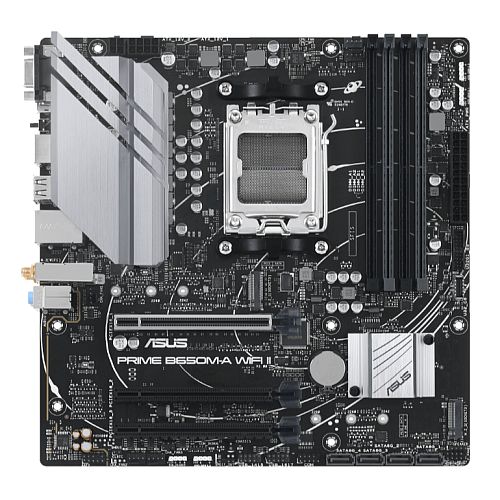

ASUS PRIME B650M-A WIFI II AMD B650 Micro ATX Motherboard

The ASUS PRIME B650M-A WIFI II delivers robust performance for AMD Ryzen 7000 Series processors in a compact Micro ATX form factor. Built on the AMD B650 chipset with AM5 socket compatibility, this motherboard provides the essential features needed for modern PC builds with DDR5 memory support, Wi-Fi 6 connectivity, and comprehensive cooling solutions.

AMD AM5 Platform Ready

Designed for AMD Ryzen 7000 Series Desktop Processors, the PRIME B650M-A WIFI II features the AM5 socket with support for high core counts and bandwidth demands. The motherboard supports DDR5 memory across 4 DIMM slots with speeds up to 6400MHz+ (OC) and maximum capacity of 192GB. ASUS OptiMem II technology ensures careful routing of traces and vias with ground layer optimizations to preserve signal integrity for improved memory overclocking.

High-Speed Connectivity

Equipped with Wi-Fi 6 (802.11ax) supporting 2.4/5GHz frequency bands and Bluetooth v5.2, this motherboard delivers wireless connectivity for modern networks. Realtek 2.5Gb Ethernet provides wired networking performance. Storage options include PCIe 5.0 M.2 support with two M.2 slots (2242/2260/2280) and four SATA III ports. USB connectivity features USB 3.2 Gen 2 Type-A ports, USB 3.2 Gen 1 ports including front Type-C support.

Comprehensive Cooling Design

The PRIME B650M-A WIFI II includes VRM heatsink and PCH heatsink for effective thermal management. Multiple hybrid fan headers with Fan Xpert 2+ provide flexible cooling control with one 4-pin CPU fan header, one CPU OPT fan header, and three 4-pin chassis fan headers for customized airflow configurations.

Expansion and Graphics

Expansion capabilities include one PCIe 4.0 x16 slot (x16 mode) and two PCIe 4.0 x16 slots (x1 mode). Integrated graphics output options provide flexibility with VGA, HDMI, and DisplayPort connections on the rear I/O panel. AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 configurations.

Aura Sync RGB Lighting

Onboard Addressable Gen 2 headers and Aura RGB header enable RGB LED strip connectivity, easily synchronized with Aura Sync-capable hardware for unified lighting effects across your system.

Audio and Back Panel I/O

Realtek 7.1 Surround Sound High Definition Audio CODEC delivers quality audio output. The rear I/O panel features comprehensive connectivity including USB 3.2 Gen 2 Type-A ports, USB 2.0 ports, display outputs, audio jacks, BIOS FlashBack button, and PS/2 keyboard/mouse combo port.

The ASUS PRIME B650M-A WIFI II provides reliable performance fundamentals with stable power delivery, intuitive cooling, and flexible data transfer options for AMD Ryzen 7000 series builds.
