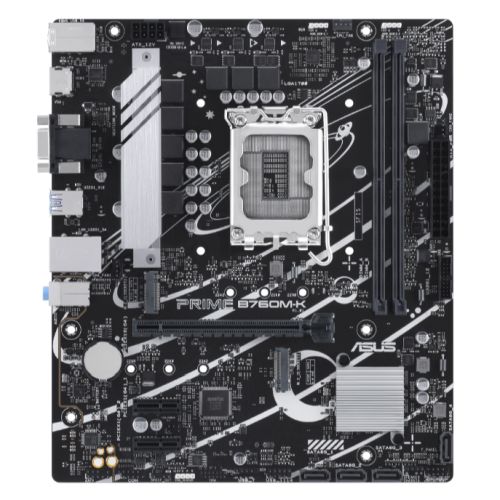

ASUS PRIME B760M-K Intel B760 Micro ATX Motherboard

The ASUS PRIME B760M-K delivers reliable performance for 12th and 13th Gen Intel Core processors in a compact Micro ATX form factor. Built on the Intel B760 chipset with LGA 1700 socket compatibility, this motherboard provides essential features for mainstream PC builds.

DDR5 Memory Support

Equipped with 2 DIMM slots supporting DDR5 memory up to 96GB capacity. Memory speeds reach up to 8000MHz (OC) with Intel XMP support. The dual-channel configuration ensures efficient data transfer for multitasking and demanding applications.

PCIe 4.0 Connectivity

Features one PCIe 4.0 x16 slot for discrete graphics cards and two PCIe 4.0 x1 slots for expansion cards. Two M.2 slots (2242/2260/2280) support PCIe 4.0 x4 for high-speed NVMe SSDs, delivering faster boot times and file transfers. Four SATA III ports provide additional storage options with RAID 0/1/5/10 support via Intel Rapid Storage Technology.

Display and Networking

Integrated graphics support includes VGA and HDMI outputs for flexible display configurations. Realtek 2.5Gb Ethernet provides fast wired networking, ideal for gaming, streaming, and large file transfers.

Comprehensive Cooling Solution

VRM and PCH heatsinks maintain stable temperatures under load. One 4-pin CPU fan header and two 4-pin chassis fan headers with hybrid control offer flexible cooling configurations. Fan Xpert 2+ software enables precise fan curve customization.

USB and Audio

Rear I/O includes four USB 3.2 Gen1 Type-A ports and two USB 2.0 ports. Internal headers support two additional USB 3.2 Gen1 ports and three USB 2.0 ports. Realtek 7.1 Surround Sound High Definition Audio CODEC delivers clear audio through three rear audio jacks.

Aura Sync RGB Lighting

Two addressable Gen 2 headers and one Aura RGB header allow connection of RGB LED strips. Synchronize lighting effects across compatible components through ASUS Aura Sync software.

Package Contents

Includes two SATA 6Gb/s cables, I/O shield, two M.2 anchors, and user guide. Backed by a 3-year warranty for peace of mind.
