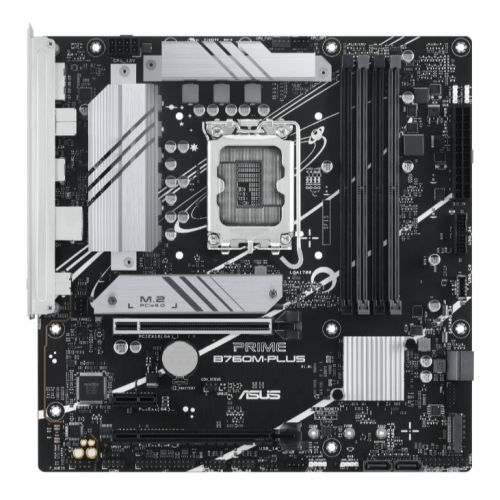

ASUS PRIME B760M-PLUS Intel B760 Micro ATX Motherboard

The ASUS PRIME B760M-PLUS delivers robust performance and connectivity for 14th, 13th, and 12th Gen Intel Core processors. Built on the Intel B760 chipset with LGA 1700 socket compatibility, this Micro ATX motherboard provides the foundation for advanced computing builds with DDR5 memory support and PCIe 4.0 expansion.

DDR5 Memory Architecture

Four DIMM slots support dual-channel DDR5 memory up to 192GB capacity with speeds reaching 7200MHz+ when overclocked. ASUS Enhanced Memory Profile II (AEMP II) and OptiMem II technology optimize signal integrity for stable high-frequency operation. Intel Extreme Memory Profile (XMP) support enables one-click memory overclocking.

High-Speed Storage and Expansion

Two M.2 slots accommodate PCIe 4.0 x4 SSDs in 2242/2260/2280 form factors, with dedicated heatsinks for thermal management. Four SATA III ports provide additional storage connectivity with RAID 0/1/5/10 support through Intel Rapid Storage Technology. The PCIe configuration includes one x16 slot (PCIe 4.0), one x16 slot operating in x4 mode, and one x1 slot for expansion cards.

Connectivity and I/O

Realtek 2.5Gb Ethernet delivers high-bandwidth networking performance. Display outputs include HDMI and DisplayPort for integrated graphics. Rear I/O features two USB 10Gbps Type-A ports and four USB 2.0 ports, while front panel headers support USB 5Gbps Type-C, two USB 5Gbps, and five USB 2.0 connections. Realtek 7.1 surround sound audio codec provides multi-channel audio output.

Thermal Management

Comprehensive cooling includes VRM heatsinks, M.2 heatsink, and PCH heatsink for critical component temperatures. Hybrid fan headers (one 4-pin CPU fan, one CPU OPT, two chassis fans) with Fan Xpert 2+ software enable precise cooling control and automatic tuning based on system load.

AI-Ready Platform

Designed for AI PC applications with sufficient power delivery and connectivity for demanding workloads. Two-Way AI Noise Cancelation processes microphone input and audio output to reduce background noise during communication. The platform supports the processing requirements and bandwidth demands of modern AI-enhanced applications.

Customization Features

Aura Sync RGB lighting system includes three Addressable Gen 2 headers and one Aura RGB header for synchronized LED control across compatible components. PS/2 combo port maintains legacy peripheral support. Additional internal connectors include COM port, LPT, S/PDIF out, and SPI TPM header for security modules.

Package includes two SATA cables, M.2 mounting hardware, and quick start guide. Backed by 3-year warranty.
