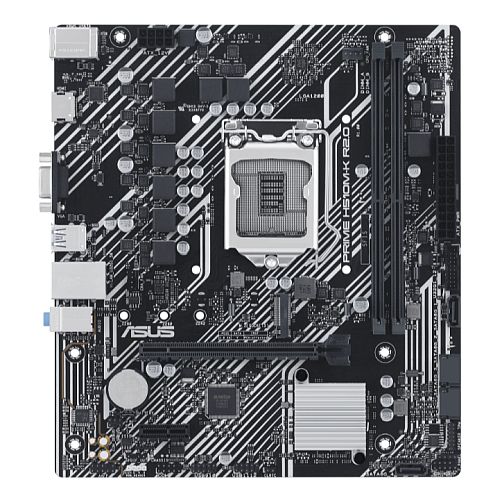

ASUS PRIME H510M-K R2.0 Micro ATX Motherboard

The ASUS PRIME H510M-K R2.0 is a Micro ATX motherboard designed for 11th and 10th Generation Intel processors using the LGA 1200 socket. Built on the Intel H510 chipset, this motherboard delivers reliable performance for daily computing and DIY PC builds with comprehensive cooling solutions and intelligent tuning options.

Socket and Processor Compatibility

The Intel LGA 1200 socket supports 11th Generation (Rocket Lake) and 10th Generation (Comet Lake) Intel Core processors. This platform provides the foundation for modern desktop computing with enhanced core counts and improved bandwidth capabilities.

Memory and Storage

Equipped with 2 DDR4 DIMM slots supporting dual-channel memory configurations up to 64GB, with speeds reaching 3200MHz (OC). Storage options include 4 SATA III ports for traditional hard drives and SSDs, plus one M.2 slot (2242/2260/2280) supporting both SATA and PCIe protocols for high-speed NVMe drives up to 32Gbps.

Expansion and Connectivity

The motherboard features one PCIe 4.0/3.0 x16 slot for dedicated graphics cards and one PCIe 3.0 x1 slot for additional expansion cards. Display outputs include VGA and HDMI ports for integrated graphics support. Gigabit Ethernet provides reliable wired network connectivity.

USB and I/O

Rear panel I/O includes 4 USB 3.2 Gen1 Type-A ports and 2 USB 2.0 ports, with additional headers supporting 2 more USB 3.2 Gen1 and 4 USB 2.0 connections. Audio is handled by Realtek 7.1 Surround Sound High Definition Audio CODEC with 3 audio jacks. A PS/2 combo port accommodates legacy keyboard and mouse devices.

Cooling and Power Design

The PRIME H510M-K R2.0 includes a PCH heatsink and Fan Xpert technology with one 4-pin CPU fan header and one 4-pin chassis fan header for optimal thermal management. The robust power design features a 24-pin main power connector and 8-pin +12V CPU power connector ensuring stable operation under sustained workloads.

Protection and Software

ASUS 5X Protection III provides multiple hardware safeguards including overcurrent protection, overvoltage protection, and ESD guards. The motherboard is compatible with Armoury Crate software for system customization and monitoring, plus Intel Optane Memory Ready support for accelerated storage performance.

Package Contents

Retail package includes 2 SATA 6Gb/s cables, I/O shield, M.2 anchor, and user guide. Backed by a 3-year warranty for peace of mind.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1200 - Comet Lake
• Chipset: Intel H470
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 3200(OC)
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
• PCI/PCI Express: 1 x PCIe 4.0/3.0 x16
  1 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - SATA & PCIe
• Wireless: -
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)"
• Back Panel I/O Ports: 4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x VGA
  1 x HDMI
  1 x Realtek 1Gb Ethernet
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1
  2 x USB 2.0
  1 x RGB
  1 x Clear CMOS
  1 x COM Port
  1 x Front Panel Audio
• .: 1 x S/PDIF Out
  1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  1 x M.2 Anchor
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.8000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
