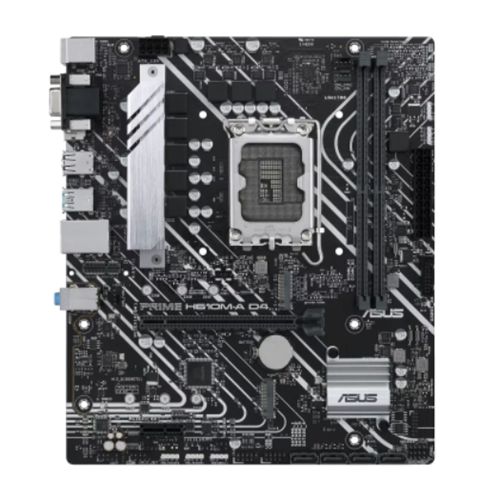

ASUS PRIME H610M-A D4 CSM Corporate Stable Motherboard

The ASUS PRIME H610M-A D4 CSM is a micro ATX motherboard designed for corporate environments requiring long-term stability and reliable IT management. Built on the Intel H610 chipset with LGA 1700 socket support, this motherboard accommodates 12th Generation Intel processors with comprehensive cooling and connectivity features.

Corporate Stable Model Benefits

ASUS Corporate Stable Model (CSM) provides up to 36-month product lifecycle support and 6-month end-of-life notice, allowing organizations sufficient lead time for product transitions. Each purchase includes ASUS Control Centre Express, server-grade IT management software compatible with over 100 ASUS motherboards for simplified IT operations and improved productivity.

Memory and Storage Configuration

This motherboard features 2 DDR4 DIMM slots supporting dual-channel memory up to 64GB with speeds reaching 3200 MHz. Storage options include 4 SATA III ports and dual M.2 slots (2242/2260/2280) with PCIe support, providing flexibility for modern NVMe SSDs and traditional storage drives.

Expansion and Display Options

The PRIME H610M-A D4 CSM offers 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x1 slot for expansion cards. Display connectivity includes VGA, HDMI, and DisplayPort outputs, supporting multiple monitor configurations with integrated graphics. The back panel includes Intel 1Gb Ethernet, USB 3.2 Gen2 Type-A ports, and Realtek 7.1 Surround Sound audio codec.

Cooling and Power Design

Engineered with VRM heatsink, PCH heatsink, and Fan Xpert 2+ technology, the motherboard maintains stable operation under intense workloads. Internal connectors include 1 x 4-pin CPU fan header and 2 x 4-pin chassis fan headers for comprehensive cooling control.

RGB Lighting and Customization

Aura Sync RGB support with onboard addressable Gen 2 headers allows synchronization with compatible RGB LED strips and hardware. The UEFI BIOS provides intuitive configuration options for both beginners and experienced users, enabling performance tuning to match specific workflow requirements.

Connectivity and I/O

USB connectivity includes 2 USB 3.2 Gen2 Type-A ports at the rear, 2 USB 3.2 Gen1 Type-A ports via mid-board header, and 7 USB 2.0 ports. Additional features include PS/2 keyboard and mouse ports, COM port support, and S/PDIF output for audio flexibility.

The package includes 2 SATA cables, I/O shield, M.2 SSD screw package, support DVD, user guide, and ACC Express Activation Key Card. Backed by a 3-year warranty, this motherboard delivers the reliability and support required for business deployments.

Intel H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Aura Sync

• Intel LGA 1700 socket: Ready for 12th Gen Intel processors
• Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
• Ultrafast connectivity: 32Gbps M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 2 ports
• Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
• ASUS Control Center Express (ACCE) for easier IT endpoint management

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel H610
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 3200 MHz
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 4.0 x16 slot
  1 x PCIe 3.0 x1 slot
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2242/2260/2280) - PCIe
• Wireless: -
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "2 x USB 3.2 Gen2 Type-A (at back)
  2 x USB 3.2 Gen1 Type-A (at mid-board)
  7 x USB 2.0 (4 at back, 3 at mid-board)"
• Back Panel I/O Ports: 2 x USB 3.2 Gen1 Type-A
  4 x USB 2.0
  1 x DisplayPort
  1 x D-Sub
  1 x HDMI
  1 x V-M.2 slot (Key E)
  1 x Intel 1Gb Ethernet
  3 x Audio jacks
  1 x PS/2 Keyboard (purple)
  1 x PS/2 Mouse (green)
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  2 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  2 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1
  2 x USB 2.0
  3 x Addressable Gen2
  2 x AURA RGB
  1 x Clear CMOS
  1 x Front Panel Audio
• .: 1 x COM Port
  1 x S/PDIF Out
  1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  1 x M.2 SSD screw package
  1 x Support DVD
  1 x User guide
  1 x ACC Express Activation Key Card
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.1000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
