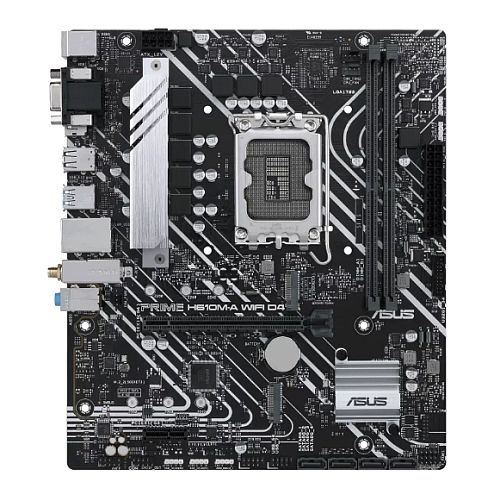

ASUS PRIME H610M-A WiFi D4 Micro ATX Motherboard

The ASUS PRIME H610M-A WiFi D4 is a reliable Micro ATX motherboard built on the Intel H610 chipset, designed for 12th Generation Intel Core processors using the LGA 1700 socket. This motherboard delivers essential features for mainstream PC builds with integrated WiFi 5 connectivity and comprehensive cooling solutions.

12th Gen Intel Processor Support

Built around the Intel LGA 1700 socket, this motherboard supports 12th Generation Intel Core processors. The H610 chipset provides PCIe 4.0 support for modern graphics cards, ensuring compatibility with current and future GPU upgrades.

DDR4 Memory and Dual M.2 Storage

Equipped with 2 DIMM slots supporting dual-channel DDR4 memory up to 3200MHz with a maximum capacity of 64GB. Two M.2 slots accommodate NVMe SSDs with PCIe 3.0 support for transfer speeds up to 32 Gbps, plus four SATA III ports for additional storage expansion.

Integrated WiFi 5 and Gigabit Ethernet

The motherboard features built-in 802.11ac WiFi 5 with dual-band 2.4/5GHz support delivering up to 433.3Mbps transfer speeds, plus Bluetooth 5.0. Intel Gigabit Ethernet provides stable wired connectivity with reduced CPU overhead for reliable network performance.

Comprehensive Display Outputs

Three display outputs accommodate various monitor setups: VGA (D-Sub), HDMI, and DisplayPort connections allow flexible multi-monitor configurations when using processors with integrated graphics.

Enhanced Cooling Design

VRM heatsinks with thermal pads improve heat dissipation from MOSFETs and chokes. Fan Xpert 2+ software provides intelligent fan control with auto-tuning capabilities across three 4-pin fan headers, allowing dynamic thermal management based on multiple temperature sensors.

Aura Sync RGB Lighting

Three addressable Gen 2 RGB headers support customizable lighting effects through Aura Sync software. These headers automatically detect connected LED devices and offer backward compatibility with existing Aura RGB hardware.

USB 3.2 Gen 2 Connectivity

Rear I/O includes two USB 3.2 Gen 2 Type-A ports delivering 10 Gbps transfer speeds, along with four USB 2.0 ports. Internal headers provide additional USB 3.2 Gen 1 and USB 2.0 expansion options.

UEFI BIOS with EZ Mode

The ASUS UEFI BIOS offers both simplified EZ mode for straightforward setup and Advanced mode for detailed system tuning. Features include the Digi+ VRM for precise voltage control and the Energy Processing Unit (EPU) for power optimization.

DIY-Friendly Features

Q-LED Core provides POST diagnostic lighting patterns for troubleshooting. SafeSlot Core reinforces the PCIe x16 slot with 1.6x stronger retention and 1.3x greater shearing resistance compared to standard slots, protecting your graphics card investment.
