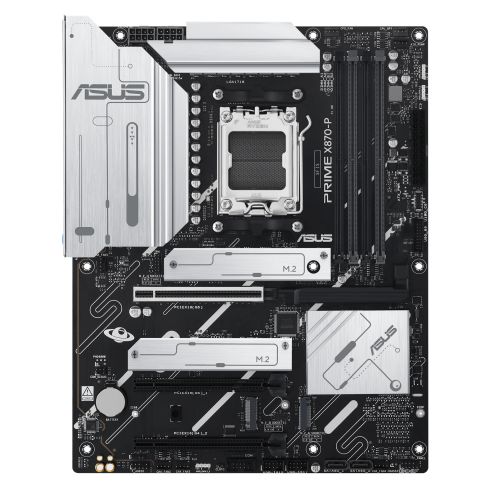

ASUS PRIME X870-P AMD AM5 ATX Motherboard

The ASUS PRIME X870-P delivers robust performance for AMD Ryzen 9000 series processors with advanced AI PC capabilities. This ATX motherboard combines powerful hardware with intelligent cooling and connectivity solutions for demanding builds.

Robust Power Delivery System

Featuring a 14+2+1 DrMOS power stage design with 80A-rated components, the PRIME X870-P ensures stable power delivery for high-core-count AMD processors. The eight-layer PCB design enhances overclocking stability, while proprietary ProCool 8+8 pin connectors improve PSU connections. Digi+ VRM control provides real-time voltage management for optimal performance.

DDR5 Memory Performance

Four DDR5 DIMM slots support up to 256GB of memory at speeds reaching 8000+MT/s (OC) with AMD Ryzen 9000, 8000, and 7000 series CPUs. AMD EXPO support and ASUS Enhanced Memory Profile (AEMP) automatically optimize memory modules for maximum performance, whether using entry-level or extreme-speed kits.

Next-Gen Storage and Connectivity

The motherboard provides four M.2 slots with varying speeds: one PCIe 5.0 x4 slot delivering up to 128 Gbps, two PCIe 4.0 x4 slots at 64 Gbps, and one PCIe 3.0 x2 slot. A full-length PCIe 5.0 x16 slot with SafeSlot reinforcement supports next-generation graphics cards. Two SATA III ports offer additional storage options.

Advanced Cooling Solutions

Multiple onboard heatsinks and hybrid fan headers maintain system stability under load. ASUS Fan Xpert 4 software delivers comprehensive fan and AIO cooler control with Auto-Tuning and Extreme Quiet modes. AI Cooling II dynamically adjusts fan speeds based on CPU temperatures for optimized thermals and reduced noise.

Comprehensive I/O Options

Rear panel connectivity includes two USB4 (40Gbps) Type-C ports with display output support, one USB 10Gbps Type-A port, three USB 5Gbps Type-A ports, and four USB 2.0 ports. Realtek 2.5Gb Ethernet ensures fast network connectivity. Front panel headers support USB 10Gbps Type-C and additional USB connections.

DIY-Friendly Features

PCIe Slot Q-Release provides tool-free graphics card removal with a single lever tap. M.2 Q-Latch enables screwless SSD installation and removal. Q-LED Core displays color-coded POST indicators for troubleshooting. BIOS FlashBack allows BIOS updates via USB without CPU or memory installed. The pre-mounted I/O shield simplifies installation.

Customization and Software

Aura Sync RGB lighting with three addressable Gen 2 headers creates synchronized lighting effects. Armoury Crate software centralizes system control, driver management, and RGB customization. ASUS GlideX enables seamless screen sharing across devices, while DriverHub simplifies driver updates.

The ASUS PRIME X870-P combines AMD X870 chipset capabilities with practical features for enthusiasts and builders seeking reliable performance and future-ready connectivity.
