ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors.

• AI Networking II - Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.
• AI Cooling II - Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

Robust power design

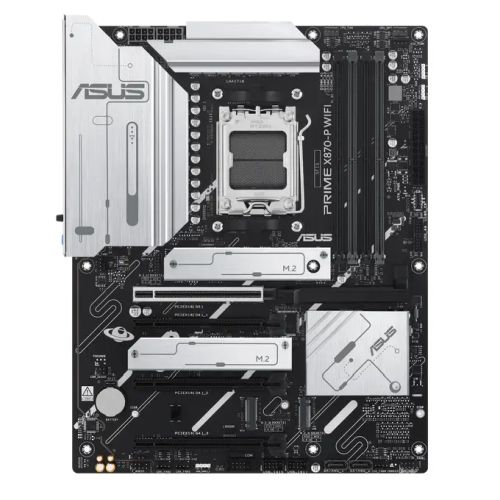

Stable power is crucial for maximizing the performance of AMD processors. The PRIME X870-P WIFI is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM5
• Chipset: AMD X870
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: "DDR5 (Dual Channel)
  ECC and Non-ECC, Un-buffered Memory
  Supports AMD EXPO
  ASUS Enhanced Memory Profile"
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs
• Maximum Memory: 256GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  2 x USB4 (40Gbps) support USB Type-C display outputs
• PCI/PCI Express: Ryzen 9000 & 7000 CPUs:
  1 x PCIe 5.0 x16 (supports x16 mode)

  Ryzen 8000 CPUs:
  1 x PCIe 4.0 x16 (supports x8/x4 mode)

  AMD X870 Chipset:
  3 x PCIe 4.0 x16 (supports x1 mode)
• Storage: 2 x SATA III
  4 x M.2

  Ryzen 9000 & 7000 CPUs:
  M.2_1 (2280) - PCIe 5.0 x4

  Ryzen 8000 CPUs:
  M.2_1 (2280) - PCIe 4.0 x4

  X870E Chipset:
  M.2_2 (2242/2260/2280) - PCIe 4.0 x4
  M.2_3 (2280 ) - PCIe 4.0 x4
  M.2_4 (2280 ) - PCIe 3.0 x2
• RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU
• Wireless: "Wi-Fi 7
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band
  Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  Bluetooth v5.4"
• LAN: 2.5GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  2 x USB4 (40Gbps) Type-C
  1 x USB 10Gbps Type-A
  3 x USB 5Gbps Type-A
  4 x USB 2.0

  Front:
  1 x USB 10Gbps Type-C
  2 x USB 5Gbps
  4 x USB 2.0
• Back Panel I/O Ports: 2 x USB4 (40Gbps) Type-C
  1 x USB 10Gbps Type-A
  3 x USB 5Gbps Type-A
  4 x USB 2.0
  1 x HDMI
  1 x Wi-Fi module
  1 x Realtek 2.5Gb Ethernet
  3 x Audio jacks
  1 x BIOS FlashBack button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  4 x 4-pin Chassis Fan
  1 x 24-pin Main
  2 x 8-pin +12V CPU
  4 x M.2 (Key M)
  2 x SATA 6Gb/s
  1 x USB 10Gbps USB Type-C
  1 x USB 5Gbps
  2 x USB 2.0
• .: 3 x Addressable Gen 2
  1 x Clear CMOS
  1 x COM Port header
  1 x Front Panel Audio
  1 x S/PDIF Out
  1 x SPI TPM (14-1 pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x ASUS WiFi Q-Antenna
  1 x M.2 rubber package
  2 x Screw packages for M.2 SSD
  Documentation
  1 x Quick start guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.2500 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
