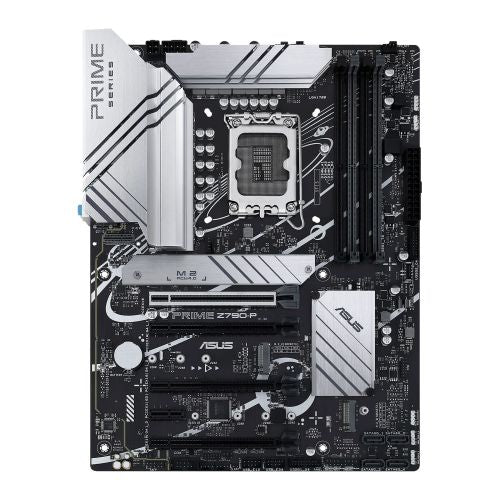

ASUS PRIME Z790-P ATX Motherboard - Intel 13th Gen Ready

The ASUS PRIME Z790-P delivers robust performance for 13th Gen Intel Core processors with its LGA1700 socket. This ATX motherboard combines comprehensive cooling solutions, intelligent tuning options, and a 14+1 teamed power stage design (50A) with enlarged heatsinks for stable operation under demanding workloads.

DDR5 Memory Performance

Equipped with 4 DIMM slots supporting dual-channel DDR5 memory up to 192GB, the PRIME Z790-P features ASUS Enhanced Memory Profile II (AEMP II) technology. This exclusive firmware optimizes PMIC-restricted memory modules, training memory chips to deliver enhanced clock speeds while maintaining system stability. Whether using entry-level modules or high-speed kits, AEMP II unlocks performance beyond baseline settings.

Expansion and Storage

The motherboard provides extensive connectivity with 1x PCIe 5.0 x16 slot for next-generation graphics cards, 3x PCIe 4.0 x16 slots (x4 mode), and 1x PCIe 3.0 x1 slot. Storage options include three M.2 slots supporting PCIe 4.0 speeds up to 64 Gbps, plus 4 SATA III ports. Intel Rapid Storage Technology enables RAID 0/1/5/10 configurations for both PCIe and SATA drives.

Advanced Cooling Controls

ASUS Fan Xpert 4 software delivers comprehensive control over cooling with 1x CPU fan header, 1x CPU OPT fan header, 1x dedicated AIO pump header, and 3x chassis fan headers. Auto-Tuning mode intelligently configures parameters automatically, while Extreme Quiet mode minimizes fan speeds during light tasks. All headers support auto-detection of PWM or DC fans with smart protection against overheating and overcurrent.

Connectivity and I/O

Back panel I/O includes 1x USB 3.2 Gen2x2 Type-C, 1x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1, 4x USB 2.0, plus Thunderbolt (USB4) support via internal header. Display outputs feature 1x HDMI and 1x DisplayPort for integrated graphics. Network connectivity is handled by Realtek 2.5Gb Ethernet, while Realtek 7.1 Surround Sound provides high-definition audio.

Intelligent Features

The Digi+ VRM delivers real-time voltage control for CPU stability and performance tuning. Power Saving functions optimize consumption through CPU power limits, adjustable Aura lighting, and fan profile management. The renowned ASUS UEFI BIOS offers simplified options for beginners and comprehensive features for experienced users.

Package Contents

Includes 2x SATA cables, I/O shield, M.2 rubber package, M.2 screw packages, and user guide. Backed by 3-year warranty.

Specifications Summary

• Socket: Intel LGA1700
• Chipset: Intel Z790
• Form Factor: ATX
• Memory: 4x DDR5 DIMM, up to 7200MHz (OC), 192GB max
• Storage: 3x M.2 (PCIe 4.0), 4x SATA III
• Graphics: 1x PCIe 5.0 x16
• Network: 2.5Gb LAN
• Power Design: 14+1 Power Stages (50A)
