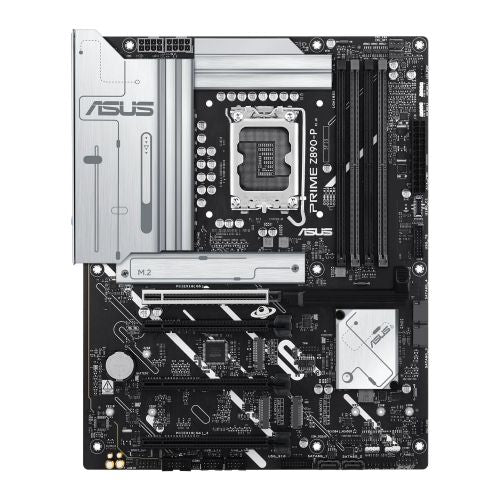

ASUS PRIME Z890-P Intel LGA1851 ATX Motherboard

The ASUS PRIME Z890-P is an ATX motherboard engineered for Intel Core Ultra Processors (Series 2) with LGA1851 socket compatibility. Designed for PC builders seeking robust performance and AI-ready capabilities, this motherboard delivers comprehensive connectivity and intelligent tuning options.

Advanced Power Delivery System

Features a 14+1+2+1 phase power design with 80A DrMOS power stages, ensuring stable power delivery for high-core-count Intel processors. This configuration integrates high-side and low-side MOSFETs rated for up to 80 amperes each, providing optimal efficiency and performance for demanding workloads.

DDR5 Memory Support

Equipped with 4 DIMM slots supporting DDR5 memory up to 7600+MT/s (OC) with a maximum capacity of 256GB. ASUS Enhanced Memory Profile III (AEMP III) optimizes CUDIMM memory through comprehensive two-phase tuning, while DIMM Fit analyzes individual modules to maximize performance and stability.

Extensive Storage and Connectivity

Includes 4 M.2 slots with one PCIe 5.0 slot delivering up to 128Gbps transfer speeds, plus three PCIe 4.0 slots for high-speed NVMe storage. Additional storage options include 4 SATA III ports. The motherboard features PCIe 5.0 x16 slot for graphics cards, with SafeSlot reinforced metal sheath for secure installation.

AI-Ready Features

NPU Boost overclocks the integrated NPU in Intel Core Ultra Processors (Series 2) with one click, increasing AI workflow performance by up to 24%. AI Cooling II dynamically adjusts fan speeds based on CPU temperatures, while AI Advisor simplifies motherboard functionality exploration.

Comprehensive I/O

Rear panel includes USB 20Gbps Type-C with DisplayPort Alt Mode for external 4K display support, USB 10Gbps Type-A, multiple USB 5Gbps and USB 2.0 ports. Display outputs feature HDMI and DisplayPort. Realtek 2.5Gb Ethernet provides high-speed networking, while Realtek 7.1 surround sound audio delivers quality sound output.

Cooling Solutions

Multiple onboard heatsinks and hybrid fan headers maintain optimal temperatures. ASUS Fan Xpert 4 software offers comprehensive control with Auto-Tuning and Extreme Quiet modes. Compatible with ASUS AIO coolers for enhanced thermal performance.

DIY-Friendly Design

Pre-mounted I/O shield simplifies installation. BIOS FlashBack allows BIOS updates without CPU or memory installed. PCIe Slot Q-Release enables easy graphics card removal. Aura Sync RGB lighting with three Addressable Gen2 headers provides customizable aesthetics through Armoury Crate software.

Package Contents

Includes 2 SATA cables, M.2 rubber package, M.2 SSD screw packages, and quick start guide. Backed by 3-year warranty.
