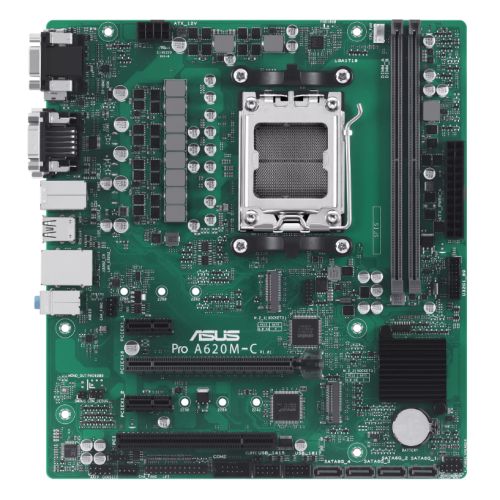

ASUS PRO A620M-C-CSM Business Motherboard - AMD A620 Chipset

The ASUS PRO A620M-C-CSM is a Micro ATX business motherboard engineered for corporate environments requiring enhanced security, reliability, and long-term stability. Built on the AMD A620 chipset with AM5 socket support, this motherboard is designed for AMD Ryzen Desktop Processors and delivers consistent performance for business computing needs.

Corporate Stable Model (CSM) Program Benefits

This motherboard is part of the ASUS Corporate Stable Model program, providing up to 36-month product lifecycle support and 6-month end-of-life notifications. Each purchase includes ASUS Control Center Express, server-grade IT management software that simplifies enterprise-level system administration and monitoring across over 100 compatible ASUS motherboards.

Memory and Storage Configuration

Equipped with 2 DDR5 DIMM slots supporting dual-channel memory up to 96GB with speeds reaching 8000+ MHz (OC). The motherboard features AMD Extended Profiles for Overclocking (EXPO) and OptiMem II technology for enhanced memory stability. Storage options include 4 SATA III ports and dual M.2 slots (2242/2260/2280) with PCIe 4.0 x4 support, plus AMD RAIDXpert2 Technology for both PCIe and SATA RAID configurations (0/1/10).

Expansion and Connectivity

The PRO A620M-C-CSM offers 1 PCIe 4.0 x16 slot, 2 PCIe 3.0 x1 slots, and 1 legacy PCI slot for maximum compatibility. Display outputs include VGA, HDMI, and DisplayPort for flexible multi-monitor configurations with integrated graphics. Gigabit LAN provides reliable network connectivity, while USB 3.2 Gen2 ports (Type-A and Type-C) deliver high-speed data transfer.

Enhanced Security and Diagnostics

Business-focused features include a self-recovering BIOS for enhanced system security, Q-LED Core diagnostic display for troubleshooting, COM debug header for technical support, and SPI TPM header for hardware-based security. The event log and commercial BIOS kit enable efficient maintenance and customization for IT administrators.

Audio and I/O Capabilities

Realtek 7.1 Surround Sound High Definition Audio CODEC provides quality audio output. Rear panel I/O includes multiple USB ports (3.2 Gen2, 3.2 Gen1, 2.0), display outputs, Gigabit Ethernet, COM port, audio jacks, and PS/2 combo port. Internal headers support additional USB 3.2 Gen1, USB 2.0, chassis fans, and front panel connections.

Rigorous Testing and Reliability

High-quality components and rigorous testing ensure durability in demanding business environments. The motherboard operates with 24/7 stability and includes comprehensive system protection features. ASUS provides world-class after-sales service and guaranteed long-term availability to maximize investment over the product lifecycle.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD A620
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
  Supports AMD Extended Profiles for Overclocking (EXPO)
  OptiMem II
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 8000+(OC)
• Maximum Memory: 96GB
• Graphics: Integrated Graphics*
  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
  2 x PCIe 3.0 x1
  1 x PCI
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
• RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
• Wireless: -
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "Rear:
  2 x USB 3.2 Gen2 (1 Type-A, 1 Type-C)
  1 x USB 3.2 Gen1 Type-A
  3 x USB 2.0

  Front:
  2 x USB 3.2 Gen1
  4 x USB 2.0"
• Back Panel I/O Ports: "2 x USB 3.2 Gen2 (1 Type-A, 1 x Type-C)
  1 x USB 3.2 Gen1 Type-A
  3 x USB 2.0
  1 x DisplayPort
  1 x VGA
  1 x DVI-D
  1 x HDMI
  1 x Realtek 1Gb Ethernet
  1 x COM
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo"
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  2 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  2 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1
  2 x USB 2.0
  1 x Clear CMOS
  1 x Chassis Intrude
  1 x COM Port
  1 x Front Panel Audio
• .: 1 x COM debug
  1 x LPT
  1 x SMBUS
  1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  2 x M.2 Anchors
  1 x ACC Express Activation Key Card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.1000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
