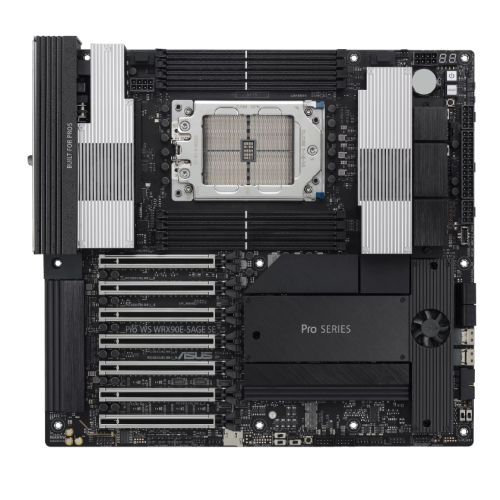

ASUS PRO WS WRX90E-SAGE SE Workstation Motherboard

The ASUS PRO WS WRX90E-SAGE SE represents professional-grade workstation computing for demanding applications. Built on the AMD WRX90 chipset with sTR5 socket, this EEB motherboard supports AMD Ryzen Threadripper PRO 7000 WX-Series processors with up to 96 cores, delivering exceptional multi-threaded performance for rendering, simulation, and data processing workloads.

Expansion and Connectivity

Seven PCIe 5.0 x16 slots provide unmatched expansion capability for multi-GPU configurations, high-speed storage controllers, and professional capture cards. Four M.2 slots with PCIe 5.0 x4 support enable ultra-fast NVMe storage arrays, while two SlimSAS connectors add additional NVMe device connectivity. Dual Intel 10Gb Ethernet ports ensure high-bandwidth network throughput for large file transfers and network-attached storage access.

Memory and Processing Power

Eight DDR5 ECC R-DIMM slots support up to 2TB of error-correcting memory in 8-channel configuration, providing data integrity for mission-critical applications. The motherboard supports CPU and memory overclocking, allowing performance tuning when needed. The robust 32+3+3+3 power stage design with dual 8-pin CPU power connectors ensures stable power delivery under sustained workloads.

Professional Management Features

Server-grade IPMI remote management with onboard AST2600 BMC controller enables hardware-level monitoring and control through a dedicated management LAN port. ASUS Control Center Express software provides real-time system monitoring, making this motherboard suitable for rack-mounted workstations and remote deployment scenarios. The board includes VGA output from the BMC for out-of-band management access.

Cooling and Build Quality

Massive VRM heatsinks with active cooling fans manage heat from the power delivery system. M.2 heatsinks with integrated fans and thermal pads keep high-performance SSDs operating at optimal temperatures. The PCIe Q-Release Slim mechanism simplifies graphics card installation and removal without pressing traditional latches, streamlining maintenance in multi-GPU configurations.

I/O and Storage

Rear I/O includes two USB4 40Gbps Type-C ports, six USB 10Gbps Type-A ports, dual mini DisplayPort inputs, and Realtek ALC1220P audio. Internal connectivity features USB 20Gbps Type-C header, multiple fan headers including dedicated VRM and M.2 fan connectors, and four SATA III ports. The motherboard supports AMD RAIDXpert2 for both PCIe and SATA RAID configurations.

Reliability and Support

Validated for 24/7 operation with extensive QVL testing, the PRO WS WRX90E-SAGE SE meets workstation reliability standards. Included accessories comprise PCIe power cables, DisplayPort cables, SATA cables, and ASUS Control Center Express activation key. Three-year warranty coverage provides professional support for business deployments.

AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim

• AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
• Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.
• CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
• Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
• PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
• Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
• Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: CEB
• Socket: AMD sTR5
• Chipset: AMD WRX90
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: "DDR5, ECC Registered Memory
  8 Channel"
• RAM Slots: 8 x DIMM
• RAM Speeds: Varies depending on CPU and memory configuration
• Maximum Memory: 2048GB
• Graphics Ports: 1 x VGA port from AST2600
  2 x USB 40Gbps (USB4) support USB Type-C display outputs
• PCI/PCI Express: 6 x PCIe 5.0 x16 slots
  1 x PCIe 5.0 x16 slot (x8 mode)
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x4
  1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x4
  1 x M.2 (2242/2260/2280) - PCIe 5.0 x4
  1 x M.2 (2242/2260/2280) - PCIe 5.0 x4
  2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device
• RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10

• LAN: Dual 10G LAN & Mgmt LAN Port
• Audio: Realtek ALC1220P Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  2 x USB4 40Gbps Type-C w/ ASMedia ASM4242 controller
  6 x USB 10Gbps Type-A
  1 x USB 2.0

  Front:
  1 x USB 20Gbps Type-C
  2 x USB 5Gbps
  4 x USB 2.0
• Back Panel I/O Ports: 2 x USB4 40Gbps Type-C w/ ASMedia ASM4242 controller
  6 x USB 10Gbps Type-A
  1 x USB 2.0
  1 x VGA
  2 x mini DisplayPort IN
  1 x Intel dual 10Gb Ethernet
  1 x Realtek 1Gb Ethernet
  2 x Audio jacks
  1 x BIOS FlashBack button
  1 x Clear CMOS button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x W_PUMP+
  5 x 4-pin Chassis Fan
  2 x 4-pin VRM Fan (VRM FAN onboard)
  1 x 4-pin M.2 Fan (M.2 FAN onboard)
  1 x 24-pin Main
  2 x 8-pin +12V
  2 x 8-pin PCIe to CPU
  2 x 8-pin PCIe
  4 x M.2 (Key M)
  4 x SATA 6Gb/s
• .: 2 x SlimSAS
  1 x USB 20Gbps Type-C
  1 x USB 5Gbps
  2 x USB 2.0
  1 x Chassis intrusion
  1 x COM port
  1 x FlexKey button
  1 x Front panel audio
  1 x LN2 mode jumper
  1 x M.2 (Key E)
• .: 7 x ProbeIt measurement points
  1 x ReTry button
  1 x RSVD switch
  1 x Slow mode switch
  1 x Safe boot button
  1 x SPI TPM (14-1 pin)
  1 x Start button
  1 x 10-1 pin system panel
  1 x Thermal sensor
• Accessories: 2 x PCIe 8-pin to CPU power cables
  1 x 24-pin power cable (Y cable)
  2 x Mini DisplayPort cables
  4 x SATA 6Gb/s cables
  1 x Thermistor cable pack
  1 x Q-connector
  1 x M.2 Q-Latch package
  1 x AMI license sticker
  4 x M.2 rubber packages
  1 x Screw package for M.2 Key E
  1 x ACC Express Activation Key Card

• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 5.2000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 3 x LAN
• #Hide#Max LAN Speed: 10GB LAN
