Asus PROART B760-CREATOR D4, Intel B760, 1700, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2, Creator Hub
Asus PROART B760-CREATOR D4, Intel B760, 1700, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2, Creator Hub
Asus PROART B760-CREATOR D4, Intel B760, 1700, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2, Creator Hub
Asus PROART B760-CREATOR D4, Intel B760, 1700, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2, Creator Hub
ASUS

Asus PROART B760-CREATOR D4, Intel B760, 1700, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2, Creator Hub

Product SKU: AUMBB760PACRED4
Available:
Only 34 items in stock
34 items in stock
In stock
Pre-order
Out of stock
£174.40
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Shipping & Returns

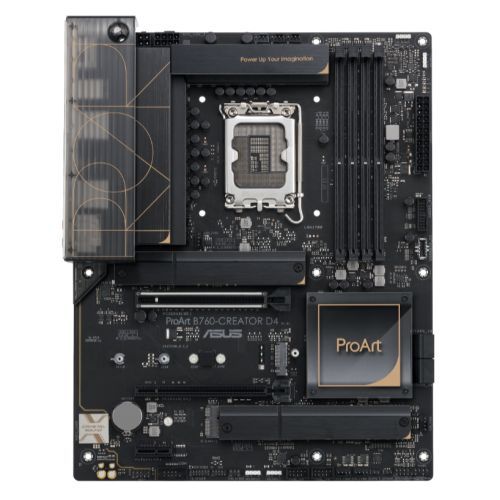

ProArt B760-CREATOR D4


ProArt B760-Creator D4 is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel Core processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C front-panel connector and a ThunderboltTM 4 header.

  • PCIe 5.0 for graphics cards
  • 2.5 Gb & 1 Gb Ethernet
  • USB 3.2 Gen 2 Type-C and a front-panel USB 3.2 Gen 2x2 Type-C connector
  • DDR4 memory support
  • 12+1 teamed power solution rated for 50A per stage
  • ProArt Creator Hub






Comprehensive Connectivity

PCIe 5.0 for graphics cards
The 13th Gen Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0 , making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions.


Front USB3.2 Gen 2x2 Type-C
A full complement of USB ports, including a front-panel USB 3.2 Gen 2x2 Type-C connector that provides data transfer speeds of up to 20 Gbps, supports high-end rigs loaded with peripherals.


Thunderbolt / USB4 support
The ProArt B760-Creator D4 features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card*, this ProArt motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connections, and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices.
*ASUS add-on card is sold separately.






Networking

Dual Ethernet
2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organization and security.


M.2 slot (key E)
The ProArt B760-Creator D4 features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules*.
*WiFi/BT modules are sold separately.






PCIe 4.0 M.2 Storage

The ProArt B760-Creator D4 features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.






Robust power design

12+1 teamed power stages
Rated for 50 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the demands of the latest 13th & 12th Gen Intel Core processors.


Chokes & capacitors
Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.


Digi+ power control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.


ProCool power connectors
These components are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.






DDR4 Memory

ProArt B760-Creator D4 supports up to 128 GB of DDR4 memory across four slots. ASUS-exclusive OptiMem II technology improves trace layout to significantly reduce signal distance and crosstalk, enhancing memory stability and compatibility while giving memory kits higher clock speed margins.






Flexible Air- and Liquid-Cooling Controls

ASUS Fan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AIO coolers can also be controlled via the UEFI BIOS.






Two-Way AI Noise Cancelation

As working from home has become the new normal for many users, clear online communication is more critical than ever. Two-Way AI Noise Cancelation is an audio utility that leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back, so your calls and video conferences with partners and clients can be crystal clear.






Customize your personal settings

ProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, quickly switching fan profiles and makes short work of switching between different performance modes.

 - Hardware monitoring
 - Fan profile setting
 - Task grouping
 - Network optimization





Security control and remote management

Advanced security management functions from ASUS Control Center Express protects the systems and confidential data in your creative studio.


USB port management
Enable or disable the USB port or set it to Read-Only to prevent data leaks.

Software blacklist
For added security, a software blacklist is available to help prevent the use of high-risk applications.

Registry Editor on/off
Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.






Trusted stability

ProArt B760-Creator D4 is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.

 - 24/7 Reliability
 - 45°C Temperature
 - 168hr Durability test
 - 80% Relative humidity


Description

Specification

  • Motherboard Type: Server / Workstation
  • Form Factor: ATX
  • Socket: Intel 1700
  • Chipset: Intel B760
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: "DDR4 (Dual Channel)
    Non-ECC, Un-buffered Memory
    Supports Intel Extreme Memory Profile (XMP)
    OptiMem II"
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Supported speed varies depending on the CPU and memory configuration
  • Maximum Memory: 128GB
  • Graphics: Integrated Graphics*
    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 5.0/4.0/3.0 x16
    1 x PCIe 4.0 x16 (supports x4 mode)
    1 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4
    1 x M.2 (2242/2260/2280/22110) - PCIe 3.0 x4
    1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4
  • RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
  • Wireless: -
  • LAN: 2.5GB LAN & GB LAN
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: Rear:
    1 x USB 3.2 Gen2 Type-C
    4 x USB 3.2 Gen1 Type-A
    4 x USB 2.0

    Front:
    1 x USB 3.2 Gen2x2 Type-C
    2 x USB 3.2 Gen1
    4 x USB 2.0
  • Back Panel I/O Ports: 1 x USB 3.2 Gen2 Type-C
    4 x USB 3.2 Gen1 Type-A
    4 x USB 2.0
    1 x DisplayPort
    1 x HDMI
    1 x Realtek 2.5Gb Ethernet
    1 x Intel® 1Gb Ethernet
    5 x Audio jacks
    1 x Optical S/PDIF out
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin CPU OPT Fan
    1 x 4-pin AIO Pump
    4 x 4-pin Chassis Fan
    1 x 24-pin Main
    1 x 8-pin +12V
    1 x 4-pin +12V
    3 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen2x2 Type-C
    1 x USB 3.2 Gen1
    2 x USB 2.0
  • .: 3 x Addressable Gen2
    1 x AURA RGB
    1 x Clear CMOS
    1 x COM Port
    1 x Front Panel Audio
    1 x M.2 slot (Key E)
    1 x SPI TPM (14-1pin)
    1 x 20-5 pin System Panel
    1 x Thermal Sensor
    1 x Thunderbolt
  • Accessories: 2 x SATA 6Gb/s cables
    2 x M.2 Rubber packages
    1 x Screw package for M.2 Key E
    1 x ProArt ruler
    1 x Q-connector
    1 x ACC Express Activation Key Card
    1 x User guide
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 2.0300 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 2 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
