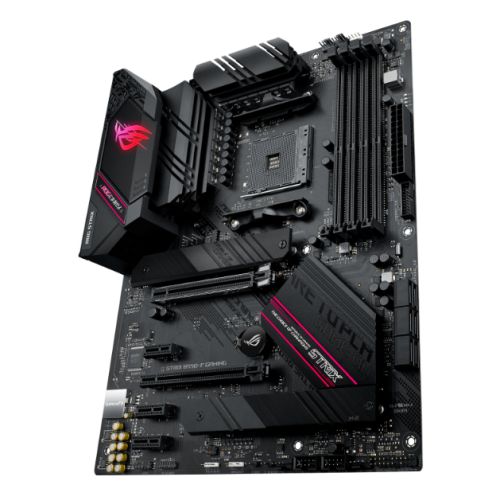

ASUS ROG Strix B550-F Gaming Motherboard

The ROG Strix B550-F Gaming delivers high-performance features for AMD Ryzen builds. This ATX motherboard combines the AMD B550 chipset with PCIe 4.0 support, robust power delivery, and comprehensive connectivity options for modern gaming systems.

AMD B550 Chipset with PCIe 4.0

Built on the AM4 socket platform, this motherboard supports 3rd Gen AMD Ryzen processors and is ready for next-generation components. PCIe 4.0 support provides doubled bandwidth for graphics cards and NVMe SSDs, enabling faster data transfers and improved gaming performance.

Memory and Storage Configuration

Four DDR4 DIMM slots support up to 128GB of memory with speeds reaching 4600MHz (overclocked). The board includes six SATA III ports and dual M.2 slots with heatsinks for NVMe SSDs. Both M.2 slots accommodate 2242/2260/2280/22110 form factors and support SATA and PCIe protocols. RAID 0, 1, and 10 configurations are available for enhanced storage performance or redundancy.

Networking and Connectivity

Intel 2.5Gb Ethernet with ASUS LANGuard provides high-speed wired networking. The rear I/O panel features HDMI 2.1 and DisplayPort 1.2 outputs for integrated graphics support. USB connectivity includes two USB 3.2 Gen2 ports (Type-A and Type-C), four USB 3.2 Gen1 ports, and two USB 2.0 ports on the back panel, with additional headers for front panel connections.

Power Delivery and Cooling

Teamed power stages with ProCool power connectors deliver stable power to Ryzen processors. The board includes dedicated headers for one CPU fan, one CPU OPT fan, three chassis fans, and one AIO pump connector. High-quality alloy chokes and durable capacitors ensure reliable operation under sustained loads.

Audio System

The SupremeFX S1220A codec provides 8-channel high-definition audio. AI Noise-Canceling Microphone technology filters background noise during voice communication. DTS Sound Unbound and Sonic Studio III software deliver immersive audio positioning for gaming.

RGB Lighting and Customization

Aura Sync RGB lighting allows synchronization with compatible components and peripherals. The motherboard includes two Aura RGB strip headers and one Addressable Gen2 RGB header for connecting LED strips and RGB fans.

Expansion and Features

Three PCIe 3.0 x16 slots (one running at x16, one at x4) and three PCIe 3.0 x1 slots provide expansion options. AMD 2-Way CrossFireX technology is supported for multi-GPU configurations. The pre-mounted I/O shield simplifies installation, while BIOS FlashBack allows firmware updates without a CPU installed. Q-LED diagnostics and SafeSlot reinforcement enhance reliability.

Software Suite

UEFI BIOS interface provides intuitive system configuration. ASUS AI Networking optimizes network traffic for gaming and streaming. The package includes four SATA cables, M.2 mounting hardware, and addressable LED extension cable.
