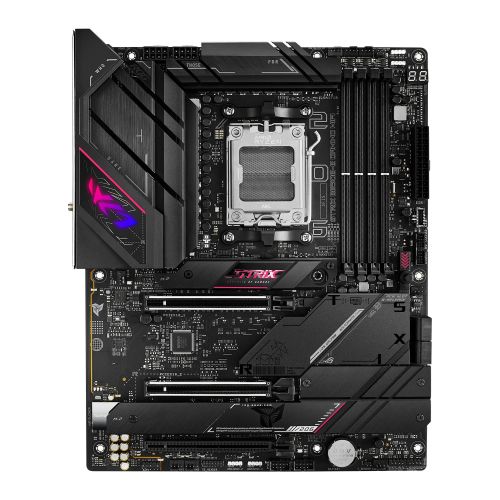

ASUS ROG STRIX B650E-E Gaming WiFi Motherboard - AMD AM5 Platform

The ASUS ROG STRIX B650E-E Gaming WiFi delivers high-performance computing for AMD Ryzen 7000 series processors. Built on the AMD B650 chipset with AM5 socket support, this ATX motherboard combines PCIe 5.0 connectivity, DDR5 memory support, and WiFi 6E wireless technology for next-generation PC builds.

PCIe 5.0 Connectivity and Storage

Equipped with two PCIe 5.0 x16 slots and four M.2 slots (two PCIe 5.0, two PCIe 4.0), this motherboard provides extensive expansion capabilities. The PCIe 5.0 M.2 slots deliver read/write speeds up to 16 GB/s, while PCIe 4.0 slots offer 8 GB/s transfers. All M.2 slots feature integrated heatsinks for thermal management. Additional storage includes four SATA III ports.

DDR5 Memory Architecture

Four DIMM slots support DDR5 memory up to 6400MHz+ with overclocking, accommodating up to 192GB total capacity. AMD EXPO profile support enables optimized memory performance, while ASUS Enhanced Memory Profile (AEMP) automatically detects and optimizes PMIC-restricted modules for improved frequency and timing.

16+2 Phase Power Delivery

The robust 16-stage power solution delivers 70A per stage, providing stable power delivery for Ryzen 7000 processors. High-end alloy chokes and durable capacitors withstand extreme temperatures, while the eight-layer PCB design dissipates heat efficiently around voltage regulators. Substantial VRM heatsinks with airflow channels maintain optimal operating temperatures during intensive workloads.

Q-Design DIY Features

PCIe Slot Q-Release enables tool-free graphics card removal with a single button press. M.2 Q-Latch allows SSD installation without screws using a simple locking mechanism. The rear I/O panel includes BIOS FlashBack and Clear CMOS buttons for easy firmware updates and settings reset, while the Q-Code LED panel displays diagnostic codes for troubleshooting.

Advanced Connectivity

WiFi 6E technology accesses the 6GHz spectrum with seven 160MHz channels for reduced interference and faster throughput. Intel 2.5Gb Ethernet provides high-speed wired networking. Rear I/O includes one USB 3.2 Gen2x2 Type-C port (20Gbps), six USB 3.2 Gen2 Type-A ports, DisplayPort and HDMI outputs for integrated graphics, and comprehensive audio via ROG SupremeFX with ALC4080 codec supporting 32-bit/384kHz playback.

Overclocking Technologies

Dynamic OC Switcher automatically toggles between AMD Precision Boost Overdrive and manual overclocking based on CPU load. Core Flex provides granular control over current, power, and thermal parameters with user-defined breakpoints. PBO Enhancement aggressively tunes PBO parameters to leverage the motherboard's power delivery capabilities.

RGB Lighting and Aesthetics

ASUS Aura Sync RGB technology controls onboard LEDs and compatible third-party accessories. The black PCB features powder-coated heatsinks with brushed metal accents and pink highlights. The I/O shroud includes an illuminated ROG eye logo with customizable RGB effects.

Software Suite

Armoury Crate provides centralized control for RGB lighting, fan curves, and system monitoring. AI Suite 3 offers performance tuning and stability optimization. Two-Way AI Noise Cancelation filters background noise from audio streams. The package includes a 60-day AIDA64 Extreme subscription for hardware monitoring and benchmarking.
