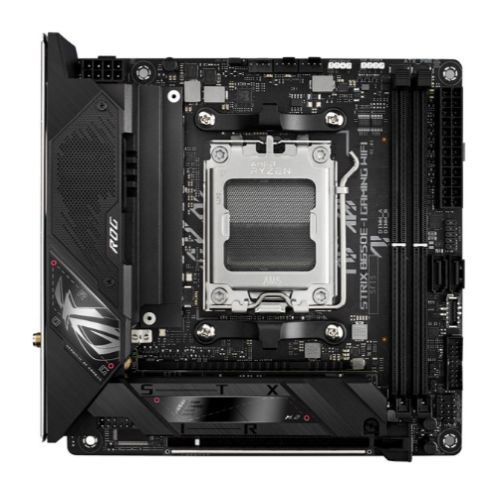

ASUS ROG STRIX B650E-I Gaming WiFi Mini ITX Motherboard

The ASUS ROG STRIX B650E-I Gaming WiFi delivers exceptional performance in a compact Mini ITX form factor, designed specifically for AMD Ryzen 7000 series processors with AM5 socket compatibility. This powerhouse motherboard proves that small form factor doesn't mean compromised performance.

Robust Power Delivery and Performance

Engineered with a 10+2 power stage design rated at 70A per stage, this motherboard provides reliable power delivery for demanding workloads and gaming sessions. The eight-layer PCB design efficiently dissipates heat around voltage regulators, ensuring system stability during intensive operations. Dynamic OC Switcher technology automatically toggles between AMD Precision Boost Overdrive and manual overclocking settings based on CPU temperature and current, maximizing performance across different workload scenarios.

Next-Generation Connectivity

Full PCIe 5.0 support across both the x16 expansion slot and primary M.2 slot enables blazing-fast transfer speeds up to 16 GB/s for compatible SSDs. The secondary M.2 slot operates on PCIe 4.0, delivering 8 GB/s throughput. DDR5 memory support reaches 6400 MT/s and beyond with AMD EXPO profiles and ASUS Enhanced Memory Profile (AEMP) technology for optimal performance from compatible memory kits.

Advanced Networking and Audio

WiFi 6E technology provides access to the 6 GHz frequency band with seven 160 MHz channels for ultra-fast wireless connectivity and reduced interference. Intel 2.5 Gigabit Ethernet ensures low-latency wired connections for competitive gaming. The ROG SupremeFX audio solution features the ALC4080 codec supporting 32-bit/384 kHz playback across all channels, with an integrated Savitech amplifier for front-panel output.

DIY-Friendly Features

M.2 Q-Latch eliminates the need for screwdrivers when installing NVMe SSDs, using a simple locking mechanism for tool-free installation. The BIOS FlashBack button enables firmware updates without CPU or memory installed. FlexKey button provides quick access to system reset, Safe Boot, or BIOS entry. Four Q-LED indicators diagnose issues with CPU, memory, graphics card, or boot devices for rapid troubleshooting.

Comprehensive Cooling

Substantial heatsinks cover the VRM with a vertical ventilation design that exhausts heat upward, ideal for air-restricted small form factor cases. High-conductivity thermal pads improve heat transfer between power stages and heatsinks. Both M.2 slots feature dedicated heatsinks to maintain optimal SSD temperatures. Multiple fan headers include dedicated CPU, AIO pump, and chassis fan connections with PWM/DC auto-detection.

Software Suite

Armoury Crate provides centralized control over system settings, RGB lighting synchronization, and Fan Xpert 4 cooling management. AI Suite 3 offers intuitive performance tuning interfaces. Two-way AI Noise Cancelation reduces background noise in communications. The package includes a sixty-day AIDA64 Extreme subscription for detailed hardware monitoring and benchmarking.

Compatible with existing AM4 coolers through identical mounting hole alignment, the ROG STRIX B650E-I integrates seamlessly into the ROG ecosystem for coordinated aesthetics across components.
