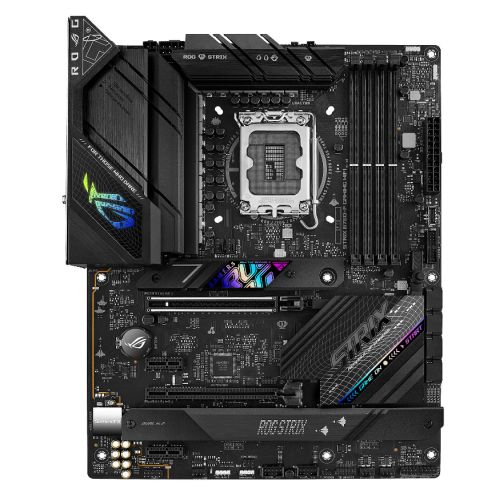

ASUS ROG STRIX B760-F Gaming WiFi Motherboard

The ROG STRIX B760-F delivers high-performance computing for 13th Gen Intel processors with its robust power delivery system and advanced DDR5 memory support. This ATX motherboard combines cutting-edge connectivity with DIY-friendly features for seamless PC building.

Power Delivery and Performance

Featuring a 16+1 power stage design with 60A-rated stages, the B760-F provides stable power delivery for demanding workloads. The six-layer PCB design with alloy chokes and durable capacitors ensures reliable performance under extreme conditions. DDR5 memory support reaches speeds up to 7800+ MT/s with AEMP II and XMP profiles, while the VRM heatsink array maintains optimal temperatures during intensive operations.

Expansion and Storage

The PCIe 5.0 x16 slot with SafeSlot retention bracket supports next-generation graphics cards, while three M.2 slots with integrated heatsinks accommodate high-speed NVMe SSDs. Four SATA III ports provide additional storage flexibility with RAID 0/1/5/10 support through Intel Rapid Storage Technology.

Connectivity Features

WiFi 6E technology utilizes the 6GHz band for ultra-fast wireless connectivity, complemented by Intel 2.5Gb Ethernet for low-latency wired networking. The rear I/O includes USB 3.2 Gen 2x2 Type-C delivering 20Gbps transfer speeds, alongside multiple USB 3.2 Gen1 ports. DisplayPort and HDMI outputs support integrated graphics configurations.

DIY-Friendly Design

PCIe Slot Q-Release enables one-press graphics card removal, while M.2 Q-Latch eliminates screws for tool-free SSD installation. BIOS FlashBack allows firmware updates without CPU or memory installed. Q-LED diagnostics quickly identify hardware issues through four onboard status indicators.

Audio and RGB

ROG SupremeFX audio with ALC4080 codec delivers 32-bit/384kHz playback across all channels. The integrated Savitech amplifier drives high-fidelity audio to headphones and speakers. Aura Sync RGB lighting synchronizes with compatible ROG components for unified aesthetics.

Thermal Management

Strategic heatsink placement covers VRM components and all M.2 slots for consistent thermal performance. Multiple fan headers including dedicated CPU, AIO pump, and chassis connections support comprehensive cooling configurations with PWM/DC auto-detection.

Software Suite

AI Suite 3 provides real-time hardware monitoring and VRM control from Windows. Two-way AI noise cancellation filters background audio, while GameFirst VI optimizes network bandwidth allocation. Armoury Crate centralizes RGB control, fan management, and system monitoring in one interface.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel B760
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7800(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 5.0x16 (supports x16 mode)
  1 x PCIe 3.0 x16 (supports x4 mode)
  2 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2242/2260/2280/22110) - PCIe
  1 x M.2 (2242/2260/2280) - PCIe
• RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.3
• LAN: 2.5GB LAN
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• USB Ports Supported: 1 x USB 3.2 Gen2x2 Type-C (at back)
  1 x USB 3.2 Gen2 Type-A (at back)
  8 x USB 3.2 Gen1 Type-A (6 at back, 2 at mid-board)
  4 x USB 2.0 (at mid-board)
  1 x Front Panel Type-C USB 3.2 Gen2 Header
• Back Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C
  1 x USB 3.2 Gen2 Type-A
  6 x USB 3.2 Gen1 Type-A
  1 x DisplayPort
  1 x HDMI
  1 x Wi-Fi Module
  1 x Intel 2.5Gb Ethernet
  5 x Audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button
  1 x Clear CMOS button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  4 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x 4-pin +12V
  3 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen2 Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
• .: 3 x Addressable Gen2
  1 x Aura RGB
  1 x Front Panel Audio
  1 x 20-3 pin System Panel
  1 x Thermal Sensor
  1 xThunderbolt (USB4)
• Accessories: 2 x SATA 6Gb/s cables
  1 x Thermal pad for M.2
  1 x ASUS Wi-Fi moving antennas
  1 x Cable ties package
  1 x M.2 Q-Latch package
  2 x M.2 Rubber Package
  1 x ROG key chain
  1 x ROG Strix stickers
  1 x ROG Strix thank you card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.2000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
