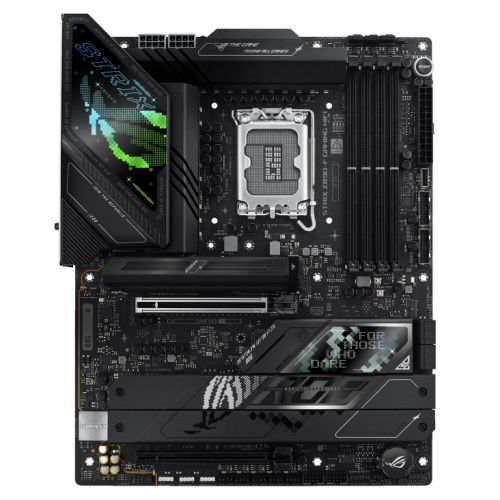

ASUS ROG STRIX Z890-F Gaming WiFi Motherboard

The ASUS ROG STRIX Z890-F Gaming WiFi is an advanced ATX motherboard built for Intel Core Ultra Processors (Series 2) with LGA 1851 socket. Designed for high-performance gaming and content creation, this motherboard combines cutting-edge connectivity with AI-driven features and robust power delivery.

Advanced Power Delivery and Overclocking

Featuring a 16+1+2+2 power stage design with dual ProCool II connectors, the Z890-F delivers stable power to demanding processors. Each power stage handles up to 110 amps, supported by alloy chokes and durable capacitors on an eight-layer PCB. NPU Boost technology overclocks the integrated NPU with a single click, increasing AI workflow performance by up to 24%.

DDR5 Memory Performance

Four DDR5 DIMM slots support speeds up to 8600+MT/s (OC) with a maximum capacity of 256GB. ASUS Enhanced Memory Profile III (AEMP III) optimizes CUDIMM memory performance, while DIMM Flex and DIMM FIT technologies provide advanced overclocking capabilities and individual module analysis for optimal performance.

Next-Generation Connectivity

WiFi 7 technology delivers speeds up to 5.8Gbps with 320MHz bandwidth support across 2.4GHz, 5GHz, and 6GHz bands. Two Thunderbolt 4 ports provide 40Gbps bidirectional bandwidth, supporting dual 4K displays and 32Gbps PCIe bandwidth. Intel 2.5Gb Ethernet ensures fast wired connections, while USB 10Gbps Type-C ports include 30W Power Delivery fast charging.

PCIe 5.0 and Storage Options

The motherboard features PCIe 5.0 x16 SafeSlot with Q-Release Slim for tool-free graphics card installation. Five M.2 slots accommodate NVMe SSDs, with the primary slot supporting PCIe 5.0 x4 speeds up to 16GB/s. All M.2 slots include heatsinks for optimal thermal performance, plus four SATA III ports for additional storage.

AI-Powered Features

ASUS AI Advisor uses natural language processing to help users explore motherboard features. AI Overclocking profiles the CPU and cooling system for optimal configuration, while AI Cooling II balances thermals and acoustics. AI Networking II continuously optimizes network performance for seamless WiFi 7 connectivity.

Premium Audio and RGB Lighting

ROG SupremeFX 7.1 audio with ALC4080 codec supports 32-bit/384kHz playback and Dolby Atmos for immersive three-dimensional sound. Polymo lighting and Aura Sync technology enable customizable RGB effects across compatible devices, creating a unified aesthetic throughout your system.

Builder-Friendly Design

Q-series features simplify installation: PCIe Slot Q-Release Slim, M.2 Q-Release, M.2 Q-Latch, and Q-Antenna eliminate the need for screwdrivers during assembly. Q-LED troubleshooting lights provide instant diagnostic feedback, while BIOS FlashBack and Clear CMOS buttons enable easy updates and recovery without CPU or memory installed.
