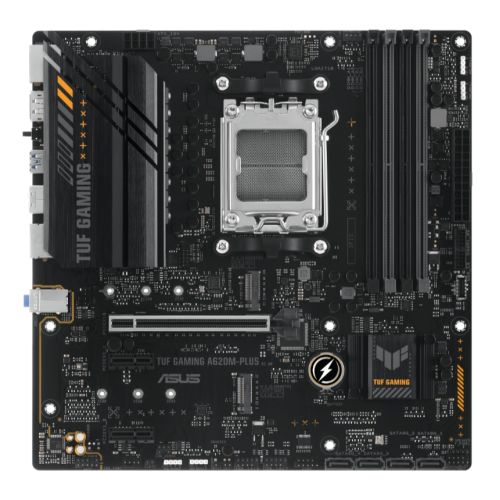

ASUS TUF GAMING A620M-PLUS takes all the essential elements of AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability.


Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.


• PCIe 4.0 for M.2 storagee
• DDR5 memory module support
• Front-panel USB 3.2 Gen 1 Type-C
• 2.5 Gb Ethernet
• Two-Way AI Noise Cancelation
• Intelligent Control

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD A620
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 6400+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  2 x DisplayPort
• PCI/PCI Express: 1 x PCIe 4.0 x16
  2 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2242/2260/2280) - PCIe
• RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
• Wireless: -
• LAN: 2.5GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "2 x USB 3.2 Gen1 Type-A (at back)
  2 x USB 3.2 Gen1 (at mid-board)
  8 x USB 2.0 (4 at back, 4 at mid-board)
  1 x Front USB 3.2 Gen1 Type-C connector"
• Back Panel I/O Ports: 2 x USB 3.2 Gen1 Type-A
  4 x USB 2.0
  2 x DisplayPort
  1 x HDMI
  1 x Realtek 2.5Gb Ethernet
  3 x Audio jacks
  1 x BIOS FlashBack button
  1 x PS/2 Keyboard/Mouse combo
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  2 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  2 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1 Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
  3 x Addressable Gen2
  1 x Aura RGB
  1 x Clear CMOS
• .: 1 x COM Port
  1 x Front Panel Audio
  1 x S/PDIF Out
  1 x Speaker
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  1 x TUF Gaming sticker
  1 x Screw package for M.2 SSD
  1 x TUF Certification card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.2930 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
