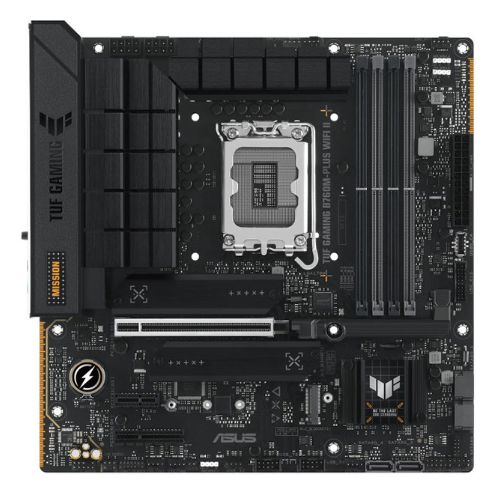

ASUS TUF GAMING B760M-PLUS WIFI II Motherboard

The TUF GAMING B760M-PLUS WIFI II combines essential features for Intel's latest processors with proven durability and game-ready performance. Built with military-grade components and an upgraded power delivery system, this Micro ATX motherboard delivers rock-solid performance for extended gaming sessions.

Power Delivery and Performance

Equipped with 12(50A)+1(60A)+1 power stages and enlarged VRM heatsinks, this motherboard provides stable power delivery for Intel LGA 1700 processors. The comprehensive cooling system ensures consistent performance during demanding workloads. DDR5 memory support with speeds up to 7800+(OC) and OptiMem II technology delivers faster data transfer rates for gaming and content creation.

Connectivity and Expansion

The motherboard features PCIe 5.0 x16 slot for next-generation graphics cards, alongside PCIe 4.0 x4 and PCIe 3.0 x1 slots for additional expansion. Three M.2 slots support high-speed NVMe storage, with PCIe 4.0 connectivity for fast data access. USB 20Gbps Type-C and front-panel USB 10Gbps Type-C header provide rapid file transfers.

Networking and Audio

WiFi 6E with Q-Antenna supports 2.4/5/6GHz frequency bands and Bluetooth v5.3 for wireless connectivity. The 2.5Gb Ethernet port ensures low-latency online gaming. Realtek 7.1 Surround Sound High Definition Audio CODEC with Two-Way AI Noise Cancelation delivers clear audio for competitive gaming.

Build-Friendly Features

PCIe Q-Release mechanism simplifies graphics card installation and removal. The TUF GAMING Alliance ecosystem ensures component compatibility, while Armoury Crate software provides intuitive system tuning with Fan Xpert 2+, RGB lighting control, and hardware monitoring. The motherboard supports Intel Rapid Storage Technology with RAID 0/1/5/10 configurations.

Technical Specifications

• Intel B760 chipset with LGA 1700 socket
• 4 x DDR5 DIMM slots, up to 192GB capacity
• 1 x HDMI and 1 x DisplayPort for integrated graphics
• 4 x SATA III ports and 3 x M.2 slots
• Multiple fan headers including CPU, AIO pump, and chassis connections
• Addressable RGB headers for lighting customization

The TUF GAMING B760M-PLUS WIFI II undergoes rigorous endurance testing to ensure reliability under demanding conditions. Its embossed nameplate and geometric design elements reflect the dependability that defines the TUF GAMING series, making it an ideal foundation for Intel-based gaming systems.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel B760
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
  Supports Intel Extreme Memory Profile (XMP)
  OptiMem II
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7800+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*
  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 5.0 x16
  1 x PCIe 4.0 x4 slot
  1 x PCIe 3.0 x1 slot
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x2
• RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.3
• LAN: 2.5GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  1 x USB 20Gbps Type-C
  1 x USB 10Gbps Type-A
  2 x USB 5Gbps Type-A
  4 x USB 2.0

  Front:
  1 x USB 10Gbps Type-C
  2 x USB 5Gbps
  5 x USB 2.0
• Back Panel I/O Ports: 1 x USB 20Gbps Type-C
  1 x USB 10Gbps Type-A
  2 x USB 5Gbps Type-A
  4 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet
  5 x Audio jacks
  1 x Optical S/PDIF out
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  3 x 4-pin Chassis Fan
  1 x 24-pin Main
  2 x 8-pin +12V
  3 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 10Gbps Type-C
  1 x USB 5Gbps
  3 x USB 2.0
  3 x Addressable Gen2
• .: 1 x Clear CMOS
  1 x Front Panel Audio
  1 x 20-3 pin System Panel
  1 x Thunderbolt (USB4)
• Accessories: 2 x SATA 6Gb/s cables
  1 x ASUS Q-Antenna
  1 x M.2 Rubber Package
  1 x TUF Gaming sticker
  2 x Screw packages for M.2 SSD
  1 x TUF Certification card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.6200 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
