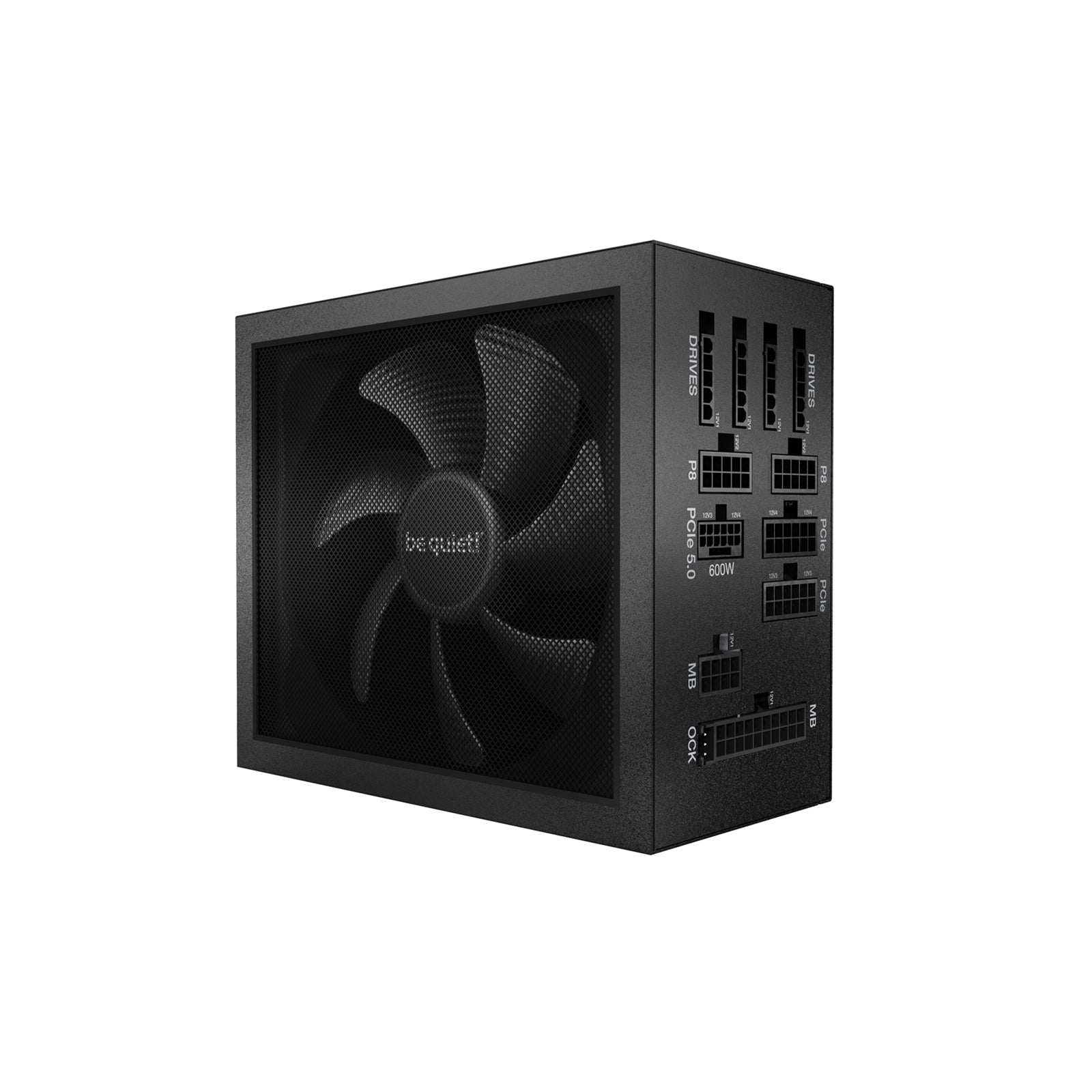

be quiet! Dark Power 13 1000W - Premium Titanium Efficiency Power Supply

The be quiet! Dark Power 13 1000W delivers exceptional 80 PLUS Titanium efficiency with up to 95.4% efficiency at 50% load, making it one of the most efficient power supplies available. This fully modular ATX 3.0 PSU provides complete support for next-generation PCIe 5.0 graphics cards and traditional 6+2 pin GPU connectors.

Silent Operation with Advanced Cooling

Equipped with an improved 135mm Silent Wings frameless fan, this PSU operates virtually inaudibly while maintaining optimal thermal performance. The full-mesh front panel with funnel-shaped air inlet maximizes airflow efficiency, ensuring stable operation even under heavy loads.

Flexible Power Configuration

The integrated overclocking key allows you to switch between four independent 12V rails (30A, 30A, 35A, 35A) or combine them into one massive 12V rail delivering 83.3A total current. This flexibility supports both multi-GPU configurations and extreme overclocking scenarios with 840W combined 12V power and 600W dedicated 12VHPWR capability.

Advanced Technology and Protection

Built with Active Rectifier and full bridge LLC technology, the Dark Power 13 ensures unmatched signal stability and extremely high efficiency across all load ranges. Comprehensive protection features include OTP, OCP, OPP, SCP, OVP, UVP, and SIP, safeguarding your components against electrical anomalies.

Complete Cable Management

This fully modular PSU includes 12 sleeved cables with lengths up to 105cm, providing clean cable routing for any build. Connections include: 1x ATX 20+4 pin motherboard, 1x P4+4 CPU, 1x P8 CPU, 1x 12VHPWR, 4x PCIe 6+2-pin, 12x SATA, and 3x PATA connectors.

Premium Build Quality

Measuring 175 x 150 x 86mm and weighing 1.97kg, this black-finished PSU meets Energy Star 8.0, ErP, WEEE, RoHS, and Triman environmental standards. Backed by a comprehensive 10-year manufacturer's warranty, the Dark Power 13 represents a long-term investment in system reliability.

DARK POWER 13 - 1000W

No Compromise Silence and Performance

The be quiet! Dark Power 13 1000W offers 80 PLUS Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.

- 80 PLUS Titanium efficiency (up to 95.2%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connector
- Improved frameless Silent Wings fan for virtually inaudible operation
- Full-mesh front with funnel shape air inlet upholds the high air circulation abilities
- Overclocking key switches between four 12V rails and one massive 12V rail
- Active Rectifier + full bridge LLC technology provides unmatched signal stability and extremely high efficiency
- Modular cable management for maximum convenience
- 10-year manufacturer's warranty


Specifications

Efficiency

80 PLUS certification:
Titanium

Efficiency (%) at 230V, 2% load:
73.6

Efficiency (%) at 230V, 10% load:
92.0

Efficiency (%) at 230V, 20% load:
94.7

Efficiency (%) at 230V, 50% load:
95.4

Efficiency (%) at 230V, 100% load:
93.5

Output

Multi-rail operation (12V rails):
4

12V single rail operation:
Yes

Overclocking key:
Yes

+3.3V (A):
24

+5V (A):
24

+12V1 (A):
30

+12V2 (A):
30

+12V3 (A):
35

+12V4 (A):
35

-12V (A):
0.5

+5Vsb (A):
3

Max. combined power 12V (W):
840

Max. combined power 12VHPWR (W):
600

Max. combined power 3.3V + 5V (W):
120

Hold-up time at 100% load (ms):
22.6

Power good signal (ms):
100 - 150

Cables and Connectors

Modular cables:
Yes

Sleeved cables:
All

Maximum cable length (cm):
105

Cable length to motherboard (cm):
60

No. of cables:
12

ATX-Motherboard (20+4-pin):
1

P4+4 (CPU):
1

P8 (CPU):
1

12VHPWR cables:
1

PCI-e 6+2-pin (GPU):
4

SATA:
12

PATA:
3

Protection

OTP (over temperature protection):
Yes

OCP (over current protection):
Yes

OPP (over power protection):
Yes

SCP (short circuit protection):
Yes

OVP (over Voltage protection):
Yes

UVP (under Voltage protection):
Yes

SIP (Surge & Inrush Protection):
Yes

Environmental Directives

Energy Star:
8.0

ErP:
Yes

WEEE:
Yes

RoHS:
Yes

Triman:
Yes

Scope of Delivery

Thumb screws:
Yes

Screws:
Yes

Casing

Dimensions without cable (L x W x H), (mm):
175 x 150 x 86

Weight (kg):
1.97

Color:
Black

Service

Warranty (Years):
10

• Wattage: 1000W
• Size/Version: ATX 3.0
• Modular: Fully
• SATA Connections: 12
• Certification: Titanium
• Colour: Black
