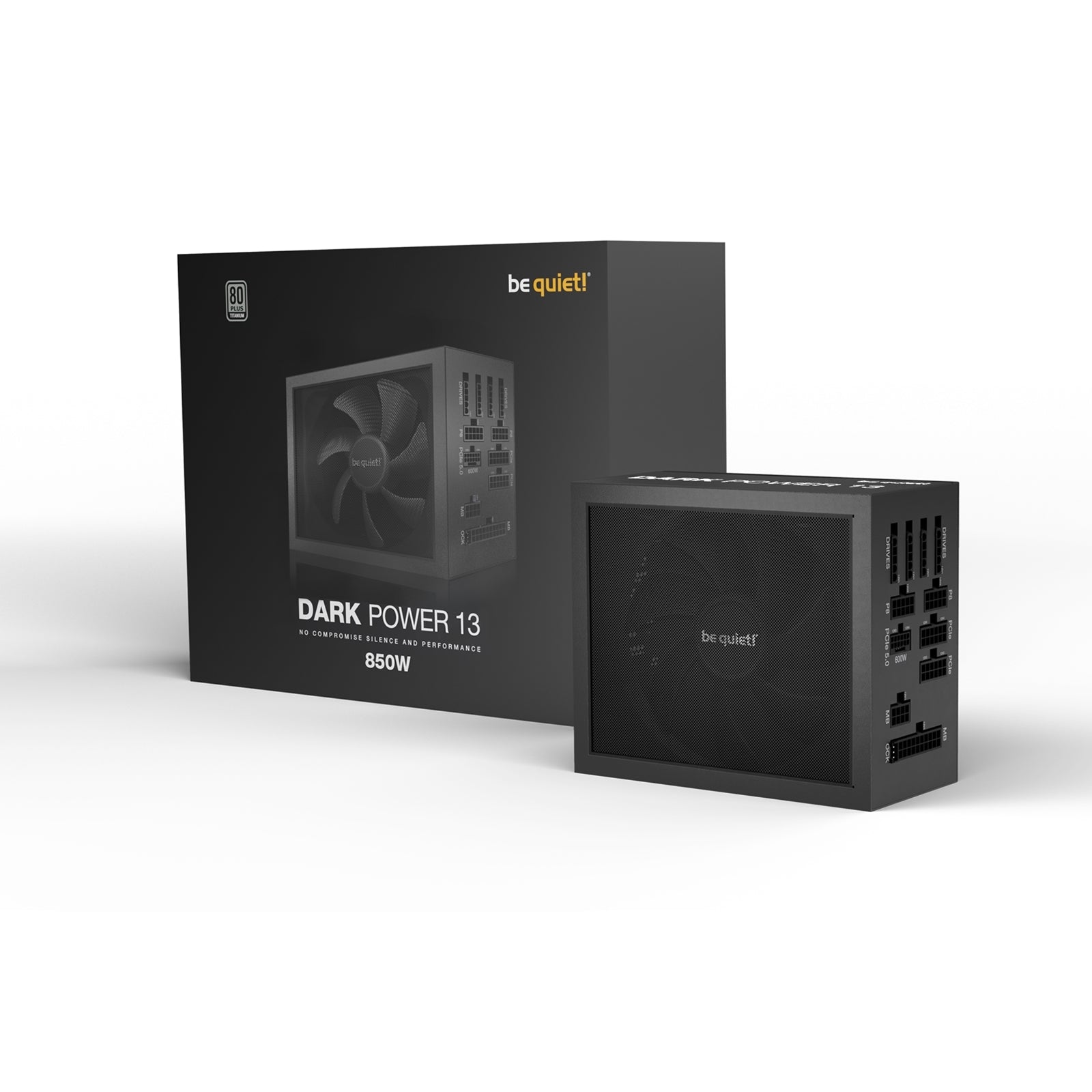

Be Quiet! Dark Power 13 850W - Premium ATX 3.0 Power Supply

The Be Quiet! Dark Power 13 850W delivers exceptional performance with 80 PLUS Titanium certification, achieving up to 95.4% efficiency at 50% load. This ATX 3.0 compliant power supply provides full support for next-generation PCIe 5.0 graphics cards with dedicated 12VHPWR connectivity delivering up to 600W.

ATX 3.0 Compliance and Next-Gen GPU Support

Equipped with a native 12VHPWR cable and four PCIe 6+2-pin connectors, this PSU handles the most demanding graphics cards including PCIe 5.0 GPUs. The 840W combined 12V power output ensures stable delivery across four dedicated rails, switchable to single-rail operation via the overclocking key for maximum flexibility.

Titanium Efficiency and Advanced Technology

Active Rectifier combined with full bridge LLC technology provides exceptional signal stability and industry-leading efficiency ratings: 92% at 10% load, 94.7% at 20% load, and 95.4% at 50% load. This translates to reduced power consumption, lower heat output, and decreased electricity costs.

Silent Wings Cooling System

The improved frameless 135mm Silent Wings fan operates virtually inaudibly while maintaining optimal thermal performance. The full-mesh front panel with funnel-shaped air inlet maximizes airflow circulation, ensuring components stay cool even under sustained loads.

Flexible Rail Configuration

The overclocking key allows instant switching between quad-rail mode (30A, 30A, 35A, 35A) and single-rail operation, providing 62.5A total current. This flexibility accommodates both multi-GPU configurations and extreme overclocking scenarios.

Comprehensive Connectivity

Fully modular cable management includes 12 cables with all sleeved for clean aesthetics. Connectivity includes: 1x ATX 20+4-pin motherboard, 1x P4+4 CPU, 1x P8 CPU, 1x 12VHPWR, 4x PCIe 6+2-pin, 12x SATA, and 3x PATA connectors. Cable lengths reach up to 105cm with a 60cm motherboard cable for versatile case compatibility.

Complete Protection Suite

Seven-layer protection includes OTP (over temperature), OCP (over current), OPP (over power), SCP (short circuit), OVP (over voltage), UVP (under voltage), and SIP (surge & inrush protection). These safeguards protect both the PSU and connected components from electrical anomalies.

Build Quality and Warranty

Compact dimensions of 175 x 150 x 86mm and 1.97kg weight fit standard ATX cases. The black finish complements modern builds. Energy Star 8.0, ErP, WEEE, RoHS, and Triman certified. Backed by a comprehensive 10-year manufacturer's warranty.

DARK POWER 13 - 850W

No Compromise Silence and Performance

The be quiet! Dark Power 13 850W offers 80 PLUS Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.

- 80 PLUS Titanium efficiency (up to 95.4%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connector
- Improved frameless Silent Wings fan for virtually inaudible operation
- Full-mesh front with funnel shape air inlet upholds the high air circulation abilities
- Overclocking key switches between four 12V rails and one massive 12V rail
- Active Rectifier + full bridge LLC technology provides unmatched signal stability and extremely high efficiency
- Modular cable management for maximum convenience
- 10-year manufacturer's warranty


Specifications

Efficiency

80 PLUS certification:
Titanium

Efficiency (%) at 230V, 2% load:
73.6

Efficiency (%) at 230V, 10% load:
92.0

Efficiency (%) at 230V, 20% load:
94.7

Efficiency (%) at 230V, 50% load:
95.4

Efficiency (%) at 230V, 100% load:
93.5

Output

Multi-rail operation (12V rails):
4

12V single rail operation:
Yes

Overclocking key:
Yes

+3.3V (A):
24

+5V (A):
24

+12V1 (A):
30

+12V2 (A):
30

+12V3 (A):
35

+12V4 (A):
35

-12V (A):
0.5

+5Vsb (A):
3

Max. combined power 12V (W):
840

Max. combined power 12VHPWR (W):
600

Max. combined power 3.3V + 5V (W):
120

Hold-up time at 100% load (ms):
22.6

Power good signal (ms):
100 - 150

Cables and Connectors

Modular cables:
Yes

Sleeved cables:
All

Maximum cable length (cm):
105

Cable length to motherboard (cm):
60

No. of cables:
12

ATX-Motherboard (20+4-pin):
1

P4+4 (CPU):
1

P8 (CPU):
1

12VHPWR cables:
1

PCI-e 6+2-pin (GPU):
4

SATA:
12

PATA:
3

Protection

OTP (over temperature protection):
Yes

OCP (over current protection):
Yes

OPP (over power protection):
Yes

SCP (short circuit protection):
Yes

OVP (over Voltage protection):
Yes

UVP (under Voltage protection):
Yes

SIP (Surge & Inrush Protection):
Yes

Environmental Directives

Energy Star:
8.0

ErP:
Yes

WEEE:
Yes

RoHS:
Yes

Triman:
Yes

Scope of Delivery

Thumb screws:
Yes

Screws:
Yes

Cable ties:
Yes

Velcro cable ties:
Yes

Casing

Dimensions without cable (L x W x H), (mm):
175 x 150 x 86

Weight (kg):
1.97

Color:
Black

Service

Warranty (Years):
10

• Wattage: 850W
• Size/Version: ATX 3.0
• Modular: Fully
• SATA Connections: 12
• Certification: Titanium
• Colour: Black
