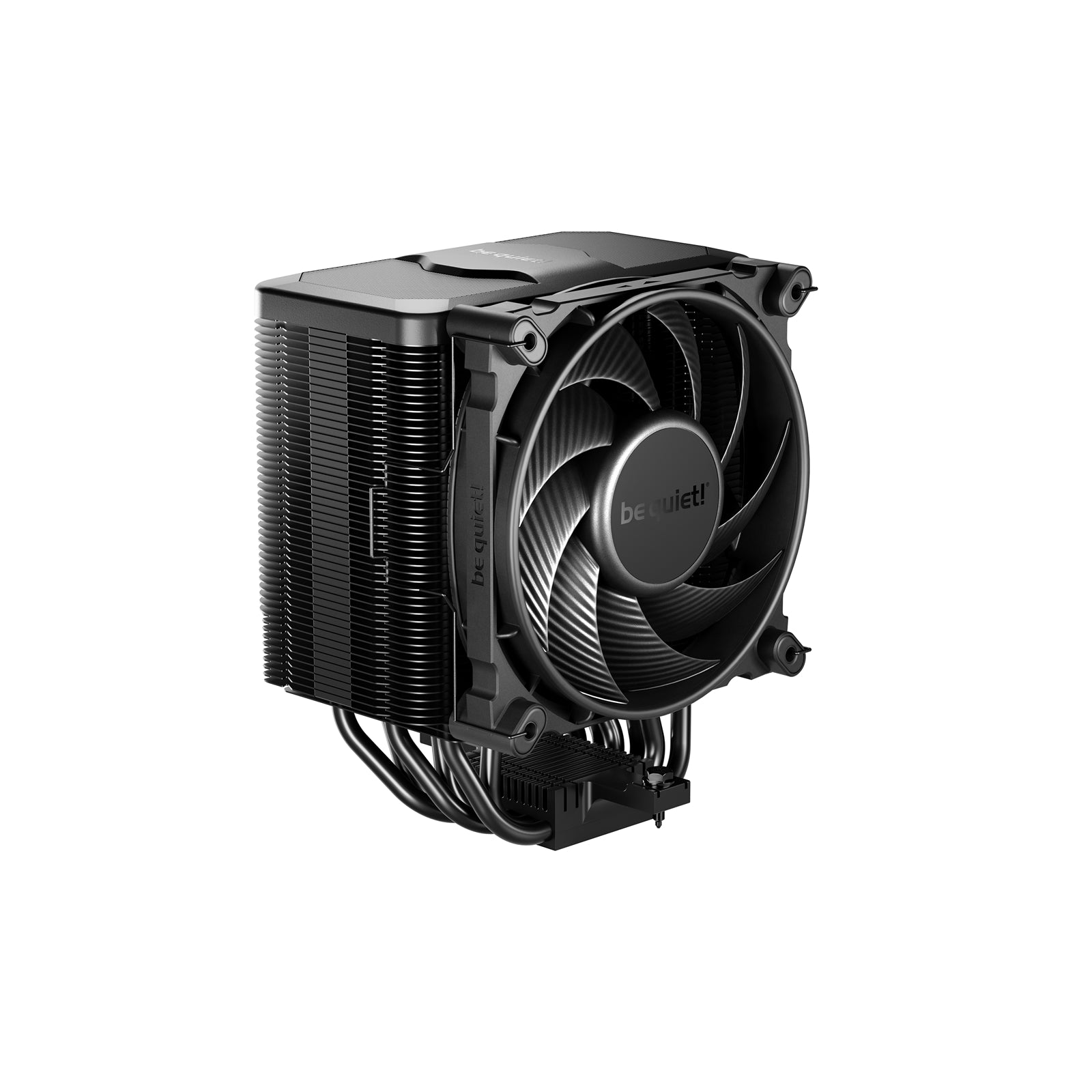

be quiet! Dark Rock 5 CPU Cooler - Extreme Cooling Performance

The Dark Rock 5 delivers extreme cooling power with 6 high-performance copper heat pipes and a dense aluminium fin array. Designed for Intel and AMD platforms, this single-tower CPU cooler handles thermal loads up to 210W TDP while maintaining near-silent operation at 29.8 dBA maximum.

Advanced Silent Wings 4 PWM Fan Technology

The included Silent Wings 4 120mm PWM fan features an advanced fluid-dynamic bearing and smooth 6-pole motor for reliable, quiet performance. Airflow-optimized fan blades with tight tip clearance generate extreme air pressure of 2.73 mm H²O, delivering 55 CFM maximum airflow at 2100 RPM. The funnel-shaped frame outlet ensures ideal air distribution across the heat sink, while the rubberized fan frame prevents vibration transfer.

Special Black Ceramic Coating for Superior Heat Transfer

A special black coating with ceramic particles enables efficient heat transfer from the aluminium heat sink to the air. The nickel-plated copper base is compatible with liquid metal thermal compounds like DC2 Pro, allowing high-end CPUs to reach maximum performance levels under demanding workloads.

Maximum Compatibility Design

The asymmetrical design with strategic heat sink cut-outs provides unlimited RAM clearance and excellent VRM cooler compatibility. Compatible with Intel sockets 1150, 1151, 1155, 1200, 1700, and 1851, plus AMD AM4 and AM5 platforms. A second 120mm fan can be optionally installed at the exhaust position for additional cooling performance.

Easy Installation System

Installation is simplified with the pre-installed mounting bridge and firm yet gentle fixing method. A long-neck screwdriver is included for convenient cooler attachment. Thermal interface material is included in the package.

Technical Specifications

Cooler Specifications

Edition
Dark Rock 5

Cooler Form Factor
Single Tower

Heatpipes
6

Cooler Features
Aluminium Heatsink
Copper Base
Special Black Coating w/ Ceramic Particles

Socket Compatibility
1150
1151
1155
1200
1700
1851
AM4
AM5

Max. TDP
210W

Fan Specifications

Included Fan Configuration
1 x 120mm

Fan Edition
Silent Wings PWM

PWM Fan
Yes

Fan Bearing Type
Fluid Dynamic Bearing

Fan Colour
Black

LED Lighting
None

Fan/Pump Connectors
1 x 4-pin PWM

Max. Fan Speed
2100 rpm

Max. Fan Airflow
55 CFM

Max. Air Pressure
2.73 mm H²O

Max. Sound Level
29.8 dBA

Materials

Cooler Materials
Aluminium

Included TIM (Thermal Interface Material)
Included

Dimensions & Weight

Heatsink/Radiator Dimensions
101 x 136 x 76 mm (WxHxD)

Total Dimensions
136 x 161 x 101 mm (WxHxD)

Weight
1013g (incl. fan)

• Product Type: Fan CPU Cooler
• Socket Compatibility: Universal
• Max Fan Speed: 2100RPM
• LED Colour: None
