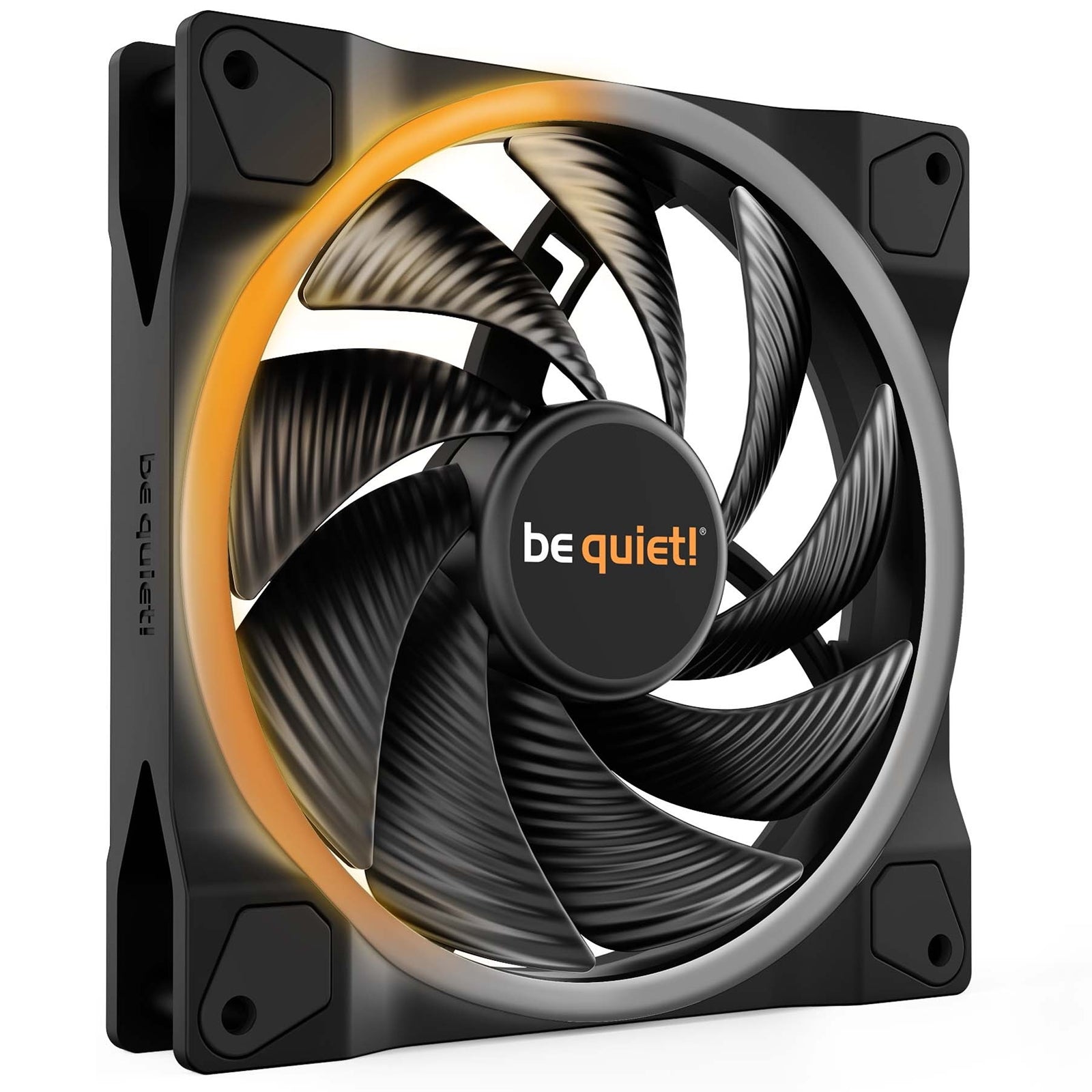

be quiet! Light Wings 140mm PWM High-Speed ARGB Fan

The Light Wings 140mm PWM high-speed fan delivers dual-sided ARGB illumination with superior cooling performance. Featuring 20 addressable RGB LEDs on both front and rear, this 140mm fan creates a vibrant lighting display from every angle while maintaining the quiet operation be quiet! is known for.

Dual ARGB Lighting Design

This fan features ARGB lighting on both front and rear surfaces, with 20 individually addressable LEDs providing multiple color and mode options. The subtly lit ring at the back combined with the bright front illumination creates an impressive appearance from any viewing angle. Connect via the 5V 3-pin ARGB connector with daisy chain capability for synchronized lighting across multiple fans.

High-Pressure Performance for Radiators

Engineered with 9 silence-optimized fan blades, the Light Wings delivers 2.3mm H2O air pressure at 2200RPM, making it ideal for both water-cooling radiators and air-cooled heatsinks. The airflow-optimized blade design achieves 71.7 CFM (121.82 m³/h) while maintaining demanding cooling configurations.

Quiet Operation at High Speed

Despite its high-speed capability, this fan operates at just 31dB(A) at maximum 2200RPM. The highly optimized impeller design and 4-pole motor technology deliver powerful cooling without excessive noise. PWM control via the 4-pin connector allows your motherboard or controller to intelligently adjust fan speed based on thermal demands.

Reliable Rifle Bearing Technology

Built with rifle bearing technology, the Light Wings fan offers an exceptional 60,000-hour lifespan at 25°C. The bearing design ensures smooth, long-term operation with minimal friction and wear. Operating voltage ranges from 5-13.2V DC with 0.16A current consumption.

Technical Specifications

• Dimensions: 140 x 140 x 25mm
• Speed: 2200RPM at 100% PWM
• Airflow: 71.7 CFM / 121.82 m³/h
• Static Pressure: 2.3mm H2O
• Noise Level: 31dB(A)
• Bearing: Rifle bearing (60,000hr lifespan)
• Connectors: 4-pin PWM + 5V 3-pin ARGB
• Cable Length: 500mm
• Weight: 251g

Package Contents

Includes mounting screws and 3-year manufacturer's warranty. Model BL075 is CE, RoHS, RU, and WEEE certified.

LIGHT WINGS - 140mm PWM High Speed
IMPRESSIVE LIGHTING, SUPERIOR COOLING
Light Wings 140mm PWM high-speed offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
- ARGB lighting on front and rear
- Multiple colors and modes for an individual look thanks to 20 LEDs
- 9 silence-optimized fan blades for high pressure and low noise-generating turbulences
- Remarkable performance-to-noise ratio with 31dB(A) at 2,200rpm
- Long life rifle-bearing gives an operating lifetime of 60,000 hours
- 3-year manufacturer's warranty
If you are looking for a high-speed fan with an impressive look from every angle, Light Wings 140mm PWM high-speed is your fan of choice.

IMPRESSIVE LIGHTING
Lots of illumination possibilities
Light Wings 140mm PWM high-speed offers ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. 20 ARGB LEDs give you many opportunities to individualize your PC build.

FOR RADIATORS AND HEATSINKS
Fan blades optimized for high pressure
With a remarkably high air pressure of up to 2.3mm/H2O, Light Wings 140mm PWM high-speed is the best choice for water-cooled and air-cooled systems alike. The 9 airflow-optimized fan blades provide enough air pressure to make this fan perfect, even in demanding configurations.

QUIET OPERATION
Acclaimed be quiet! low noise level
A highly optimized impeller achieves the silent operation be quiet! is famous for. With a noise level of 31dB(A) at maximum fan speed, it proves that instead of being a replacement the lighting is an addon to silent and very powerful operation. All features combine to make Light Wings 140mm PWM high-speed the fan of choice for silent show cases and gaming systems alike.

VARIABLE FAN SPEED FUNCTION
Adjusts the fan speed and associated noise level
Pulse Width Modulation (PWM) allows compatible 4-pin controllers, including those built into many motherboards, to intelligently vary the speed and thus the noise level of the fan. With PWM the system can ramp up the cooling when it's needed, or operate in maximum quiet mode when it's not.

General Data
Model: Light Wings 140mm PWM high-speed
Dimensions (mm): 140
Color option: Black
Lighting: ARGB LED
Fan speed @ 100% PWM / 12V (rpm): 2200
Noise level @ 100% PWM / 12V (dB(A)): 31
Air Flow @ 100% PWM / 12V (CFM / m3/h): 71.7 / 121.82
Air Pressure @ 100% PWM / 12V (mm H2O): 2.3

Mechanical Specifications
Dimensions (L x W x H), (mm): 140 x 140 x 25
Weight incl. fixed cables (g): 251
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Push pin fixing: -
Screw fixing: Yes

Cables / Connectors
Daisy chain for lighting signal: Yes
Lighting connector: 5V 3-pin ARGB
Connector: 4-pin PWM
Cable length (mm): 500
Cable sleeve: -

Performance / Noise
Air Flow @ 100% PWM / 12V (CFM / m3/h): 71.7 / 121.82
Air Pressure @ 100% PWM / 12V (mm H2O): 2.3
Noise level @ 100% PWM / 12V (dB(A)): 31
Lifespan (h / 25°C): 60,000

Electrical Specifications
Rated Voltage DC (V): 12
Operating Voltage DC (V): 5 - 13.2
Current consumption (A): 0.16
Safety current (A): 0.39
Input power (W): 4.68
Rated Current LED (A): 0.67

Accessories
3-pin to 4-pin 12V-connector: -
12V to 7V adapter: -
12V to 5V adapter: -
Screws: 4
Push pins: -
hard plastic washer: -
Others: -

Safety Certification
Approvals: CE / RoHs / RU / WEEE

Environmental Directives
RoHs: -
Triman: -

Logistics Data
Article number: BL075
Dimensions, package (L x W x H), (mm): 173 x 153 x 29.5
Gross weight, package (kg): 0.334

• Product Type: Case Fan
• Fan Size: 140mm
• Max Fan Speed: 2200RPM
• Fan Shroud Colour: Black
• LED Colour: Addressable RGB
• Connections: 4-Pin Fan & 3-Pin ARGB
