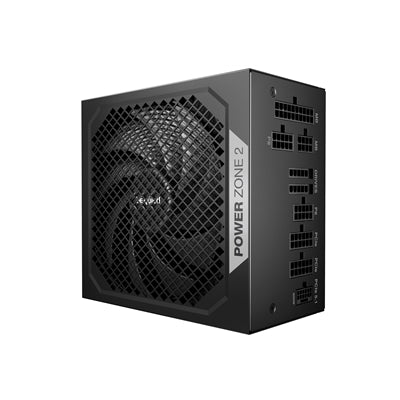

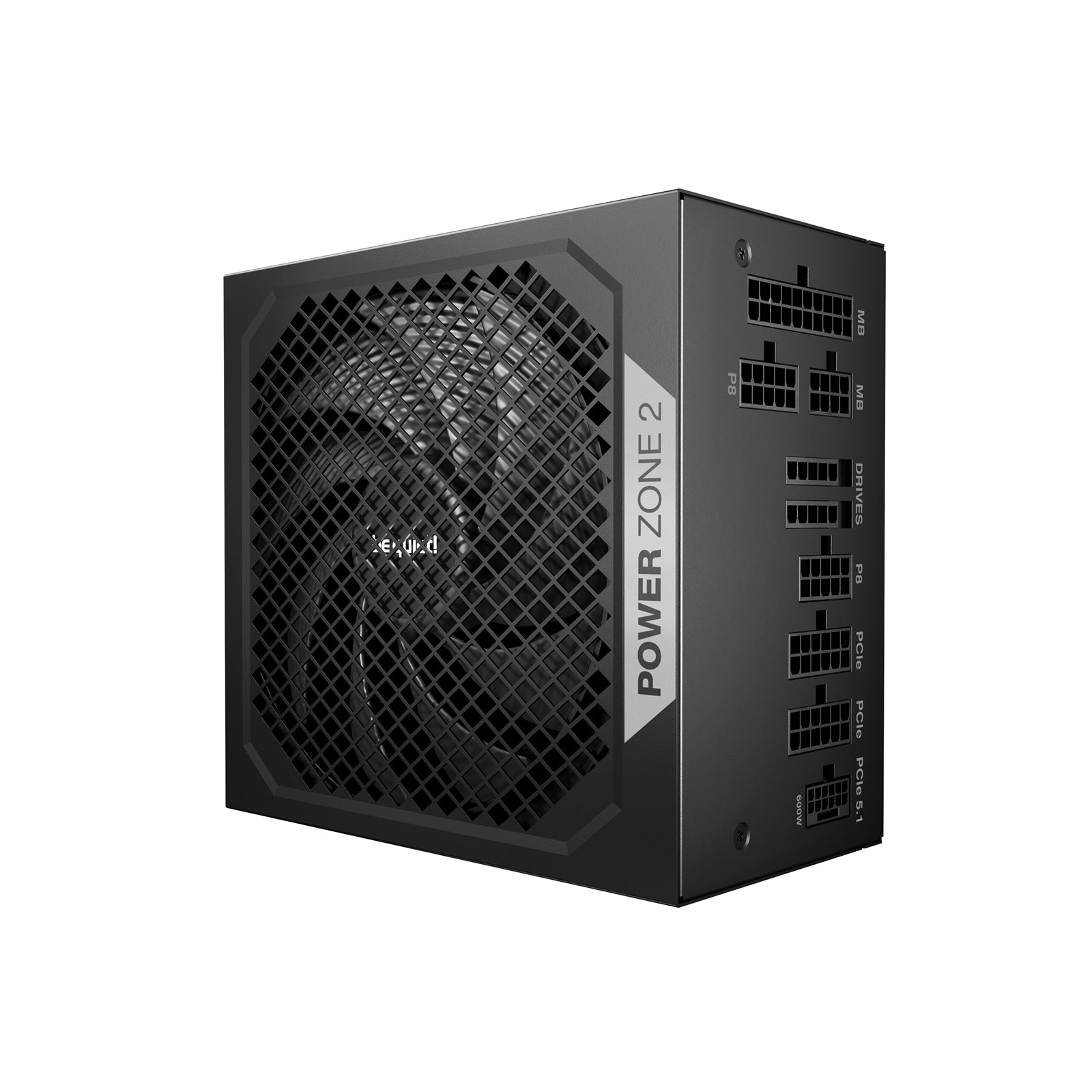

be quiet! Power Zone 2 750W Power Supply Unit

The be quiet! Power Zone 2 750W delivers 80 PLUS Platinum efficiency with semi-passive cooling for silent operation. Built for high-end gaming systems and overclocking rigs, this fully modular PSU combines advanced voltage regulation with PCIe 5.1/ATX 3.1 compatibility.

Platinum Efficiency and Silent Operation

Achieving up to 94.2% efficiency with 80 PLUS Platinum and Cybenetics Platinum certification, the Power Zone 2 reduces power consumption and heat generation. The semi-passive zero-RPM cooling keeps the 140mm Pure Wings 3 fan completely silent under low loads, with a post-ventilation cool-down period of 2-5 minutes preventing frequent starts and stops. At full load, noise levels remain at just 15.8 dB(A) with a Cybenetics A++ noise rating.

Next-Generation GPU Compatibility

The 90° angled 12V-2x6 connector provides native PCIe 5.1/ATX 3.1 support, delivering up to 600W through the 12VHPWR cable for next-generation graphics cards. Three PCI-e 6+2-pin connectors accommodate current-gen GPUs, while the single massive 12V rail supplies the full 750W with reliable voltage regulation during high power excursions up to double its rated capacity.

Advanced Cooling and Build Quality

The Pure Wings 3 140mm fan features rifle bearing technology and a 4-pole motor design, reaching up to 1800 RPM when needed. LLC technology ensures superior voltage regulation and efficiency across all load levels. The distinctive mesh front design adds visual appeal while cable designations printed on the case simplify installation.

Technical Specifications

• Continuous Power: 750W (820W peak)
• Efficiency: 92.5% at 230V full load, 80 PLUS Platinum certified
• Form Factor: ATX 3.1, EPS 12V 2.92
• Voltage Input: 100-240V AC, 50-60Hz
• Power Factor: >0.98 at 100% load
• Hold-up Time: 24.5ms at 100% load, 32.9ms at 80% load
• Operating Temperature: Up to 40°C
• MTBF: >100,000 hours at 25°C
• Dimensions: 160 x 150 x 86mm

Comprehensive Cable Configuration

• 1x ATX Motherboard (20+4-pin), 60cm length
• 1x P4+4 CPU, 1x P8 CPU, 1x P4 CPU connectors
• 1x 12VHPWR cable for PCIe 5.1 GPUs
• 3x PCI-e 6+2-pin GPU connectors
• 6x SATA connectors
• 1x PATA connector
• Maximum cable length: 100cm

Power Distribution

• 12V Rail: 750W combined
• 12VHPWR: 600W maximum
• 3.3V + 5V: 120W combined
• Standby Power: <0.18W with Modern Standby support

Backed by a 10-year manufacturer's warranty, the be quiet! Power Zone 2 750W provides long-term reliability for demanding gaming and workstation builds. The fully modular cable design simplifies installation and cable management in any chassis configuration.
