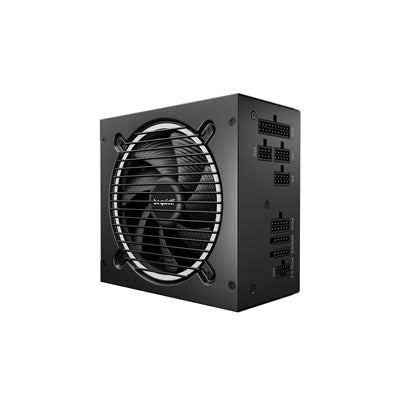

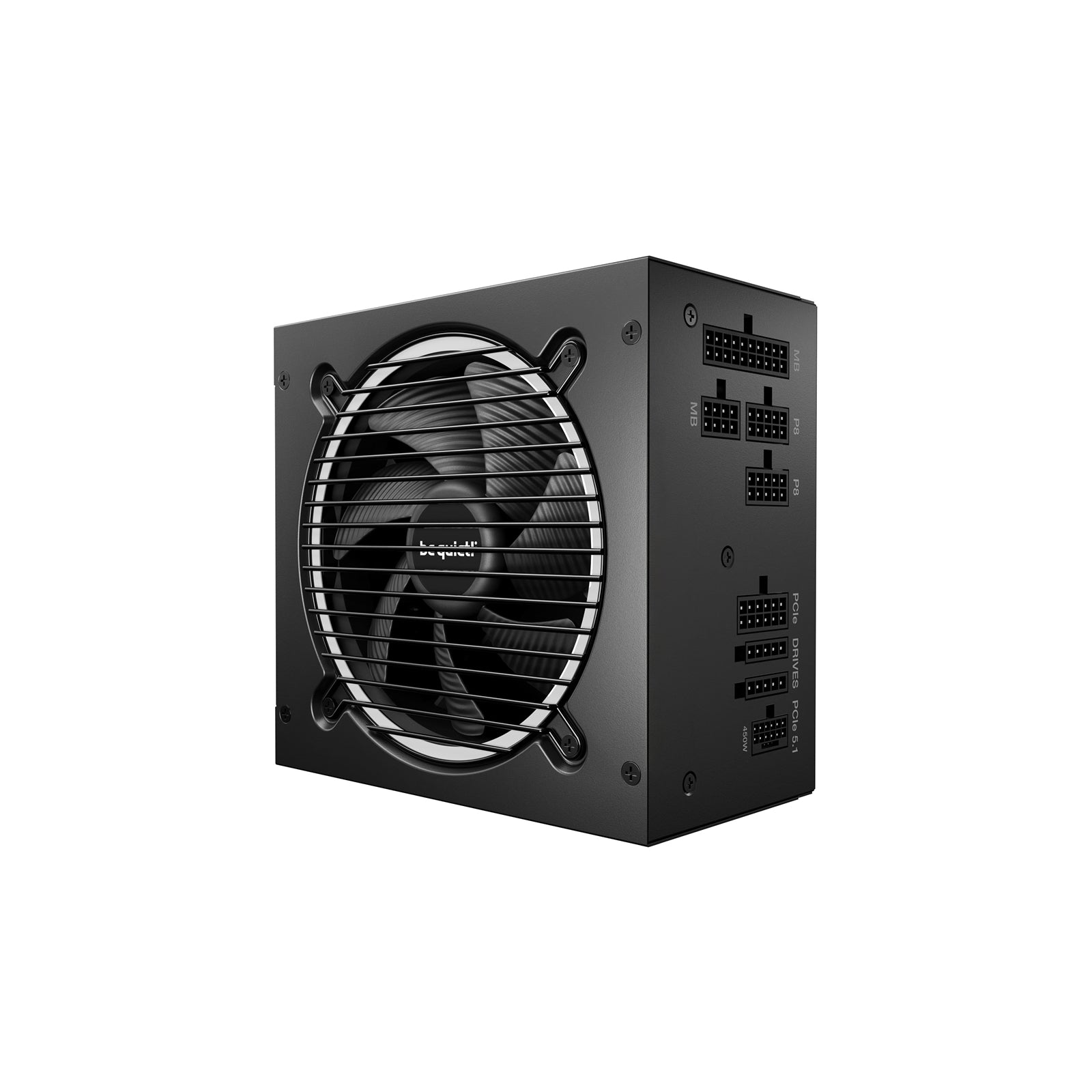

be quiet! Pure Power 13 M 650W Power Supply - ATX 3.1 & PCIe 5.1 Ready

The Pure Power 13 M 650W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply designed for current and next-generation gaming builds. With 80 PLUS Gold certification achieving up to 94.2% efficiency, this semi-modular PSU delivers reliable power while maintaining exceptional silence through its semi-passive cooling system.

Next-Gen GPU Compatibility

Equipped with both a PCIe 5.1 12V-2x6 450W cable and four PCIe 6+2 connectors, the Pure Power 13 M provides outstanding compatibility with the latest high-performance graphics cards. The single 12V rail delivers 54.1A (650W combined), handling massive power excursions that modern GPUs demand.

Silent Operation with Semi-Passive Cooling

The 120mm be quiet! fan with rifle bearing technology operates in semi-passive mode, remaining completely silent during low to medium loads. At 20% load, noise levels measure just 12.9 dB(A), while maintaining 13.2 dB(A) at 50% load. The fan only activates when needed, ensuring energy-efficient and whisper-quiet operation for everyday computing tasks.

Advanced Power Delivery & Stability

LLC topology with DC/DC conversion provides advanced voltage regulation and stability. The PSU features a comprehensive protection suite including OTP, OCP, OPP, SCP, OVP, UVP, and SIP. With a hold-up time of 30.66ms at 80% load and modern standby support, this power supply meets the latest requirements for contemporary PC systems.

Premium Build Quality & Warranty

Backed by a 10-year manufacturer's warranty, the Pure Power 13 M is built for longevity with an average lifetime exceeding 100,000 hours at 25°C. The semi-modular cable design with sleeved flat cables (up to 95cm maximum length) ensures clean cable management. The compact 160 x 150 x 86mm black casing fits standard ATX builds while weighing just 2.32kg.

Complete Connectivity

Includes 1x ATX 20+4-pin motherboard connector, 1x P4+4 CPU connector, 1x P8 CPU connector, 1x 12V-2x6 cable, 2x PCIe 6+2-pin cables, 5x SATA connectors, and 2x PATA connectors. The 55cm motherboard cable provides flexible routing options for various case configurations.

Certifications & Compliance

Meets ENERGY STAR 8.0, ErP, RoHS, and WEEE standards. Certified with CB, CE, CCC, cTUVus, CU, FCC, RCM, TÜV, and UKCA safety approvals for worldwide compatibility and reliability.

Pure Power 13 M 650W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling.

It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 1000W offers the best combination of features with outstanding compatibility.

Features
80 PLUS Gold efficiency (up to 94.2%)
ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
Handles massive power excursions
Exceptionally silent semi-passive 120mm be quiet! fan
Semi-passive construction for quiet and energy-saving operation
LLC technology for advanced stability and voltage regulation
One massive high-performance 12V-rail
One PCIe 5.1 12V-2x6 450W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
Full suite of safety features
Meets latest requirements for modern standby
10-year manufacturer's warranty

Specifications

General data

Model: Pure Power 13 M | 650W
Continuous power (W): 650
Peak power (W): 720
Form factor:Version 3.1
Form factor EPS 12V: Version 2.92
Topology: LLC + SR + DC/DC
Digitally controlled: No
Voltage (Vac): 100 - 240
Frequency (Hz): 50 - 60
Input current (A):10/ 5
Power factor at 100% load: >0.98
Modern standby:Yes
Power consumption in standby (W): <0.1
Average life time (h / 25°C): >100,000
Operating temperature up to (°C): 40

Efficiency

80 PLUS certificationGold
Efficiency (%) at 230V, 2% load 71.1
Efficiency (%) at 230V, 10% load 90.0
Efficiency (%) at 230V, 20% load 93.1
Efficiency (%) at 230V, 50% load 94.2
Efficiency (%) at 230V, 100% load 92.8

Fan and cooling technology

Cybenetics Noise Rating: No
Fan: Silence-optimized be quiet! fan
Fan size (mm) 120
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Max. fan speed (rpm): 1800
dB(A) at 10% load: n/a
dB(A) at 20% load: 12.9
dB(A) at 50% load: 13.2
dB(A) at 100% load: 30.2

Output

Multi-rail operation (12V rails):No
12V single rail operation: Yes
Overclocking key: No
+3.3V (A): 20
+5V (A): 20
+12V1 (A): 54.1
+12V2 (A): N/A
+12V3 (A): N/A
+12V4 (A): N/A
+12V5 (A): N/A
+12V6 (A): N/A
-12V (A): 0,3
+5Vsb (A): 3
Max. combined power 12V (W): 650
Max. combined power 12V-2x6 (W): 450
Max. combined power 3.3V + 5V (W): 120
Hold-up time at 100% load (ms): 22.5
Hold-up time at 80% load (ms): 30.66
Power good signal (ms): 100 - 150

Cables and connectors

Modular cables: Yes
Sleeved cables: Yes
Flat cables: Yes
Maximum cable length (cm): 95
Cable length to motherboard (cm): 55
No. of cables: 7
ATX-Motherboard (20+4-pin): 1
P4+4 (CPU): 1
P8 (CPU): 1
P4 (CPU): No
12V-2x6 cables: 1
PCI-E 6+2-pin (GPU): 2
PCI-E 6-pin (GPU): No
SATA: 5
PATA: 2
FDD (Floppy): No

Protection

OTP (over temperature protection): Yes
OCP (over current protection): Yes
OPP (over power protection): Yes
SCP (short circuit protection): Yes
OVP (over voltage protection): Yes
UVP (under voltage protection): Yes
SIP (Surge & Inrush protection): Yes

Safety certification
BSMI: Yes
CB: Yes
CCC: Yes
CE: Yes
cRUus: No
cTUVus: Yes
CU: Yes
FCC: Yes
RCM: Yes
TÜV: Yes
UKCA: Yes
IRAM: No

Environmental directives

ENERGY STAR: 8.0
ErP: Yes
WEEE: Yes
RoHS: Yes
Triman: Yes

Scope of delivery

Thumb screws: No
Screws: Yes
Cable ties: Yes
Velcro cable ties: No
User manual languages: CN, DE, EN, ES, FR, JP, PL, RU, TW
OCK slot bracket with switch / OCK jumper: No
SFX-to-ATX adapter bracket: No

Casing

Dimensions without cable (L x W x H), (mm): 160 x 150 x 86
Weight (kg): 2.32
Color: Black

• Wattage: 650W
• Size/Version: ATX 3.1
• Modular: Fully
• SATA Connections: 4
• Certification: Gold
• Colour: Black
