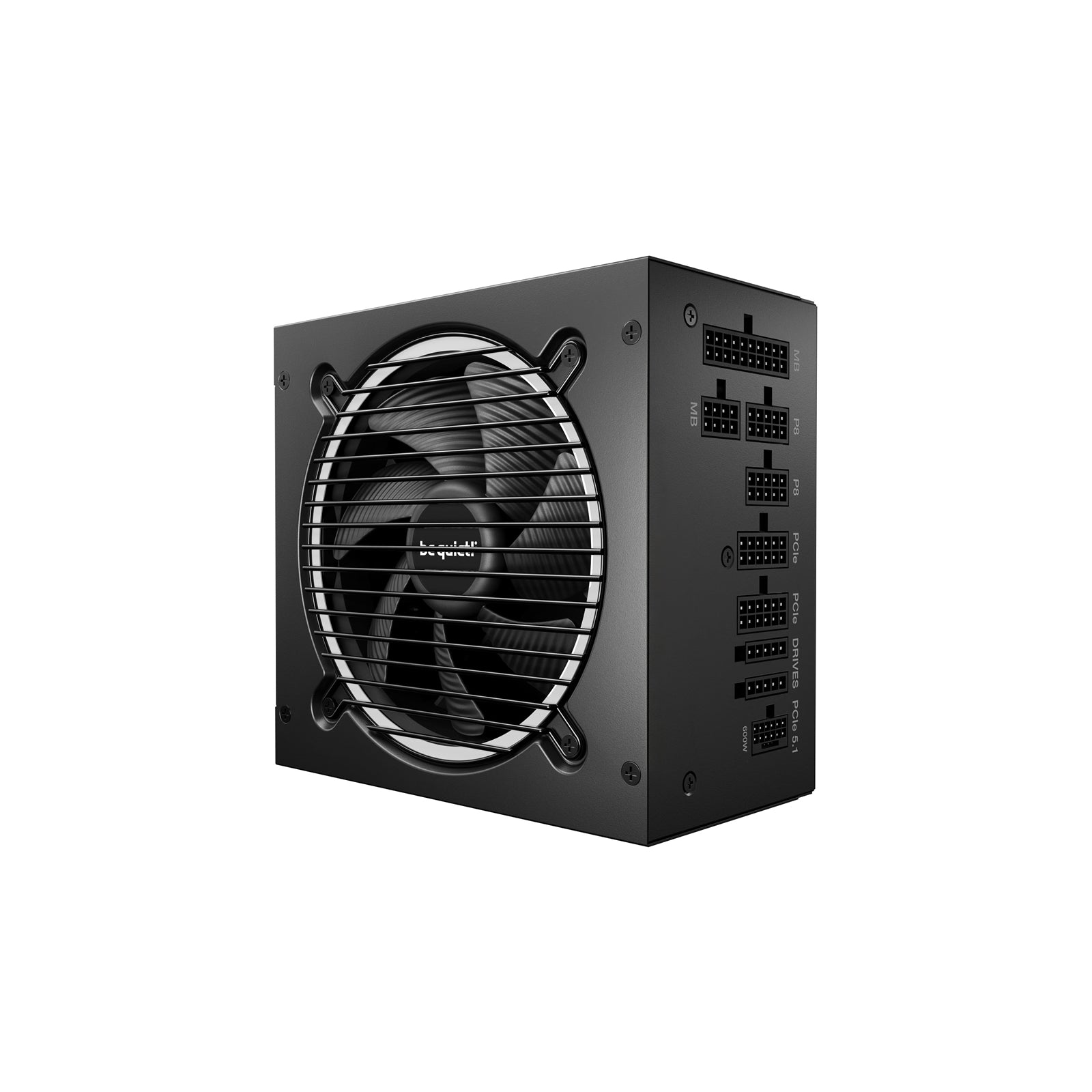

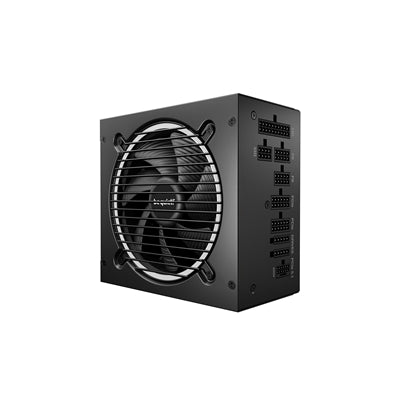

be quiet! Pure Power 13 M 850W ATX 3.1 Power Supply

The Pure Power 13 M 850W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply designed for modern gaming and workstation builds. With 80 PLUS Gold efficiency reaching up to 94.4%, this PSU delivers reliable power while minimizing energy waste and heat generation.

Next-Generation Graphics Card Compatibility

Equipped with both a PCIe 5.1 12V-2x6 600W cable and four PCIe 6+2 pin connectors, the Pure Power 13 M 850W provides exceptional compatibility with current and next-generation graphics cards. The single 12V rail delivers 70.9A of stable power, capable of handling massive power excursions from high-end GPUs without compromising system stability.

Silent Semi-Passive Cooling

The 120mm be quiet! fan with rifle bearing technology operates in semi-passive mode, remaining completely silent during light loads. At 20% load, noise levels measure just 12.9 dB(A), ensuring whisper-quiet operation during everyday tasks. The 4-pole fan motor with a maximum speed of 2000 rpm only activates when necessary, balancing thermal performance with acoustic efficiency.

Advanced Power Delivery

LLC topology combined with DC/DC conversion ensures advanced voltage regulation and stability across all rails. The PSU maintains a power factor greater than 0.98 at full load and supports modern standby with less than 0.1W power consumption. With a hold-up time of 25.09ms at 100% load, the Pure Power 13 M 850W protects your system during brief power interruptions.

Comprehensive Protection Suite

Full safety features include OTP (over temperature protection), OCP (over current protection), OPP (over power protection), SCP (short circuit protection), OVP (over voltage protection), UVP (under voltage protection), and SIP (surge & inrush protection). These safeguards protect both the PSU and your connected components from electrical anomalies.

Flexible Cable Management

The semi-modular design includes flat, sleeved cables for improved airflow and aesthetics. With six SATA connectors, dual P4+4 and P8 CPU connectors, and a 55cm motherboard cable, this PSU accommodates various build configurations. Cable lengths extend up to 95cm, providing flexibility for larger cases.

Long-Term Reliability

Backed by a 10-year manufacturer's warranty and an average lifetime exceeding 100,000 hours at 25°C, the Pure Power 13 M 850W is built for longevity. The 160 x 150 x 86mm casing houses premium components that operate reliably at temperatures up to 40°C.

Pure Power 13 M 850W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling.

It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 1000W offers the best combination of features with outstanding compatibility.

Features
80 PLUS Gold efficiency (up to 94.4%)
ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
Handles massive power excursions
Exceptionally silent semi-passive 120mm be quiet! fan
Semi-passive construction for quiet and energy-saving operation
LLC technology for advanced stability and voltage regulation
One massive high-performance 12V-rail
One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
Full suite of safety features
Meets latest requirements for modern standby
10-year manufacturer's warranty

Specifications

General data

Model: Pure Power 13 M | 850W
Continuous power (W): 850
Peak power (W): 900
Form factor:Version 3.1
Form factor EPS 12V: Version 2.92
Topology: LLC + SR + DC/DC
Digitally controlled: No
Voltage (Vac): 100 - 240
Frequency (Hz): 50 - 60
Input current (A):12 / 6
Power factor at 100% load: >0.98
Modern standby:Yes
Power consumption in standby (W): <0.1
Average life time (h / 25°C): >100,000
Operating temperature up to (°C): 40

Efficiency

80 PLUS certificationGold
Efficiency (%) at 230V, 2% load 70.5
Efficiency (%) at 230V, 10% load 90.0
Efficiency (%) at 230V, 20% load 93.2
Efficiency (%) at 230V, 50% load 94.4
Efficiency (%) at 230V, 100% load 92.8

Fan and cooling technology

Cybenetics NoiseRating: No
Fan: Silence-optimized be quiet! fan
Fan size (mm) 120
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Max. fan speed (rpm): 2000
dB(A) at 10% load: n/a
dB(A) at 20% load: 12.9
dB(A) at 50% load: 13.2
dB(A) at 100% load: 30.2

Output

Multi-rail operation (12V rails):No
12V single rail operation: Yes
Overclocking key: No
+3.3V (A): 22
+5V (A): 22
+12V1 (A): 70.9
+12V2 (A): N/A
+12V3 (A): N/A
+12V4 (A): N/A
+12V5 (A): N/A
+12V6 (A): N/A
-12V (A): 0,3
+5Vsb (A): 3
Max. combined power 12V (W): 850
Max. combined power 12V-2x6 (W): 600
Max. combined power 3.3V + 5V (W): 120
Hold-up time at 100% load (ms): 25.09
Hold-up time at 80% load (ms): 33.38
Power good signal (ms): 100 - 150

Cables and connectors

Modular cables: Yes
Sleeved cables: Yes
Flat cables: Yes
Maximum cable length (cm): 95
Cable length to motherboard (cm): 55
No. of cables: 8
ATX-Motherboard (20+4-pin): 1
P4+4 (CPU): 1
P8 (CPU): 1
P4 (CPU): No
12V-2x6 cables: 1
PCI-E 6+2-pin (GPU): 4
PCI-E 6-pin (GPU): No
SATA: 6
PATA: 2
FDD (Floppy): No

Protection

OTP (over temperature protection): Yes
OCP (over current protection): Yes
OPP (over power protection): Yes
SCP (short circuit protection): Yes
OVP (over voltage protection): Yes
UVP (under voltage protection): Yes
SIP (Surge & Inrush protection): Yes

Safety certification
BSMI: Yes
CB: Yes
CCC: Yes
CE: Yes
cRUus: No
cTUVus: Yes
CU: Yes
FCC: Yes
RCM: Yes
TÜV: Yes
UKCA: Yes
IRAM: No

Environmental directives

ENERGY STAR: 8.0
ErP: Yes
WEEE: Yes
RoHS: Yes
Triman: Yes

Scope of delivery

Thumb screws: No
Screws: Yes
Cable ties: Yes
Velcro cable ties: No
User manual languages: CN, DE, EN, ES, FR, JP, PL, RU, TW
OCK slot bracket with switch / OCK jumper: No
SFX-to-ATX adapter bracket: No

Casing

Dimensions without cable (L x W x H), (mm): 160 x 150 x 86
Weight (kg): 2.62
Color: Black

• Wattage: 850W
• Size/Version: ATX 3.1
• Modular: Fully
• SATA Connections: 6
• Certification: Gold
• Colour: Black
