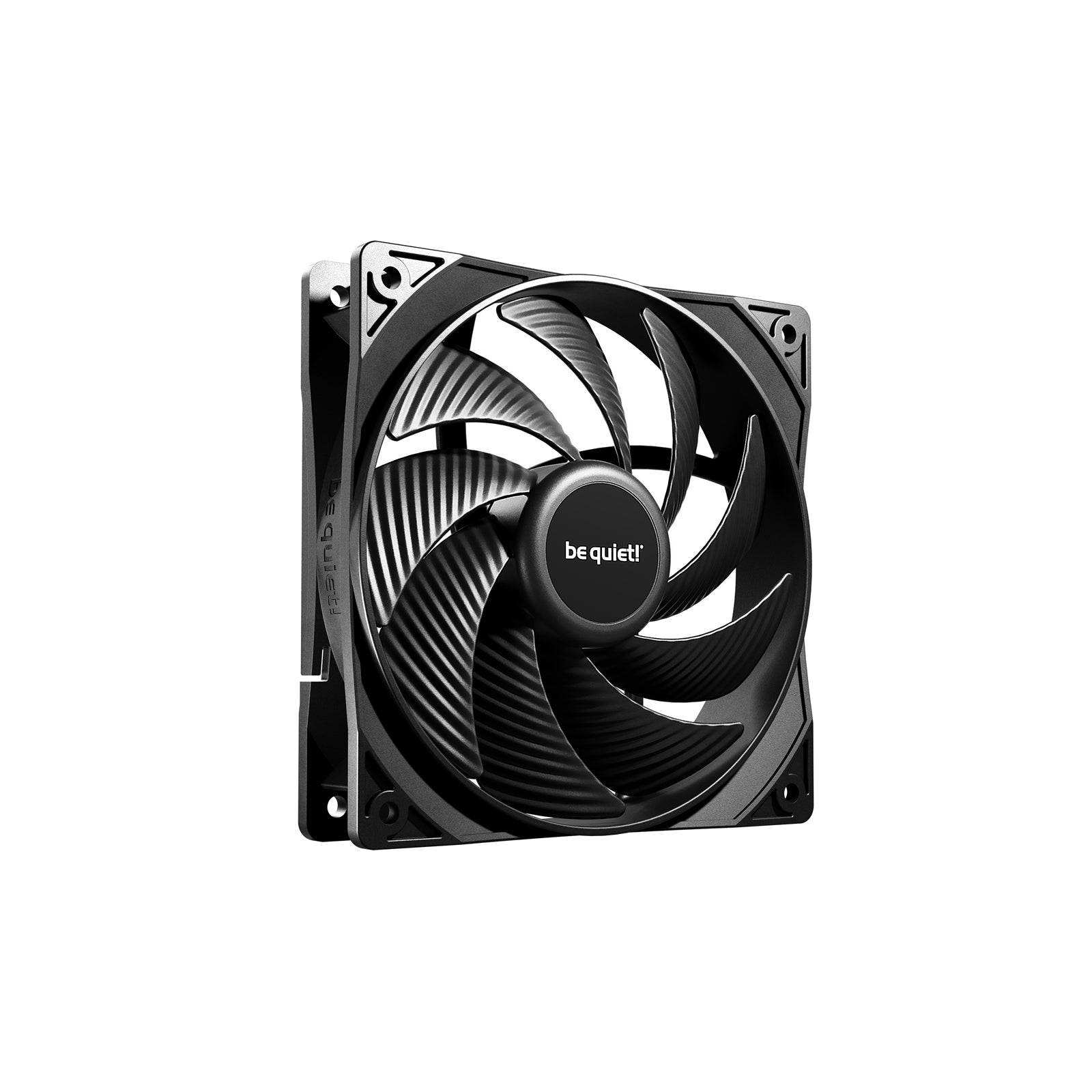

Be Quiet! Pure Wings 3 120mm PWM High-Speed Case Fan

The Pure Wings 3 120mm PWM high-speed delivers exceptional cooling performance for demanding PC builds. Engineered with a closed loop motor technology that maintains consistent RPM regardless of air resistance, this fan ensures reliable operation whether mounted on radiators, heatsinks, or case panels.

Closed Loop Motor Technology

The innovative closed loop motor functions like cruise control, constantly monitoring and adjusting fan speed to maintain target RPM. When working against resistance from fan grills or radiators, standard fans slow down—but the Pure Wings 3 automatically compensates, delivering consistent airflow at all times.

Optimized for High Static Pressure

With 2.41mm H2O air pressure and 59.6 CFM airflow at 2100 RPM, this fan excels in restrictive environments. The redesigned fan frame outlet minimizes air leaks, while the 9 optimized fan blades feature adjusted angles specifically engineered for maximum air pressure. This makes the Pure Wings 3 120mm PWM high-speed ideal for both water-cooling radiators and dense heatsink configurations.

Rifle Bearing for Extended Lifespan

Built with proven rifle bearing technology, this fan offers an 80,000-hour average lifespan at 25°C. The 4-pole motor design ensures smooth, reliable operation throughout its service life, backed by a 3-year warranty.

PWM Control and Quiet Operation

The 4-pin PWM connector enables precise speed control from your motherboard, allowing the fan to run at lower RPM when cooling demands decrease. Operating at 30.9 dB(A) at full speed, the Pure Wings 3 maintains reasonable noise levels even under maximum load.

Technical Specifications

Performance: 2100 RPM maximum speed, 59.6 CFM / 101.2 m³/h airflow, 2.41mm H2O static pressure
Dimensions: 120 x 120 x 25mm
Bearing: Rifle bearing, 80,000-hour lifespan
Noise Level: 30.9 dB(A) at 100% PWM
Power: 12V DC, 0.13A current draw, 3.6W input power
Connector: 4-pin PWM, 460mm cable length
Weight: 149g
Warranty: 3 years

Package Contents

Pure Wings 3 120mm PWM high-speed fan, 4 mounting screws. Compatible with standard 120mm fan mounting points on cases, radiators, and heatsinks.

Performant, Progressive, Quiet

Pure Wings 3 120mm PWM high-speed are the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor. This makes the fan a versatile companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.

Key Features
Innovative closed loop motor keeps the rpm no matter the resistance
Optimized fan frame for outstanding performance on radiators
Newly designed fan blades and re-arranged angle for extraordinary air pressure
Pure Wings 3 120mm PWM high-speed can be operated with very low minimum rpm for very quiet operation
Long life rifle bearing gives an operating lifetime of 80,000 hours
Iconic, unmistakable and streamlined design that avoids anything unnecessary
Product conception, design and quality control in Germany

INNOVATIVE TECHNOLOGY
Closed loop motor for persistent rpm
Pure Wings 3 120mm PWM high-speed features a closed loop motor. This technology is comparable with the cruise control in cars. When working against resistance, for example a fan grill or radiator, fans spin slower as a result. The closed loop motor technology constantly monitors the current fan speed and increases it to the target rpm, if necessary. As a result, Pure Wings 3 120mm PWM high-speed always operates at the desired speed, no matter the air resistance.

OPTIMIZED TO THE MAX
For unprecedented air pressure in its class
The fan frame outlet is newly designed to minimize air leaks. This benefits especially the radiator performance of Pure Wings 3 120mm PWM high-speed. To reach even higher performance, the fan blades are optimized as well: Their angle is adjusted to achieve even more air pressure, adding up to the extraordinary performance of Pure Wings 3 120mm PWM high-speed.

FOR RADIATORS AND HEATSINKS
Fan blades optimized for high pressure
With a remarkably high air pressure of up to 2.41mm/H2O, Pure Wings 3 120mm PWM high-speed is the best choice for water-cooled and air-cooled systems alike. The 9 airflow-optimized fan blades provide enough air pressure to make this fan work great even in demanding configurations.

ICONIC DESIGN
Streamlined look makes it an instant timeless classic
Pure Wings 3 120mm PWM high-speed trims all the fat. Every part and single detail contribute to the functionality and uncompromising performance. This has also been considered in the design of the fan. All outlines and angles serve a purpose, making Pure Wings 3 120mm PWM high-speed a timeless classic and elegant addition to every gaming PC.

RIFLE BEARING TECHNOLOGY
Makes Pure Wings 3 a long-lasting companion
Pure Wings 3 120mm PWM high-speed is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 80,000 hours.

General Data
Model: Pure Wings 3 120mm PWM high-speed
Dimensions (mm): 120
Color option: Black
Lighting: No
Fan speed at 100% PWM / 12V (rpm): 2100
Noise level at 100% PWM / 12V (dB(A)): 30.9
Airflow at 100% PWM / 12V (CFM / m3/h): 59.6 / 101.2
Air Pressure at 100% PWM / 12V (mm H2O): 2.41

Mechanical Specifications
Dimensions (L x W x H), (mm): 120 x 120 x 25
Weight incl. fixed cables (g): 149
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Push pin fixing: No
Screw fixing: Yes

Cables / Connectors
Daisy-chain compatible: No
Lighting connector: No
Connector: 4-pin PWM
Cable length (mm): 460
Cable sleeve: No

Performance / Noise
Airflow at 100% PWM / 12V (CFM / m3/h): 59.6 / 101.2
Air Pressure at 100% PWM / 12V (mm H2O): 2.41
Noise level at 100% PWM / 12V (dB(A)):30.9
Lifespan (h / 25°C): 80,000
Zero RPM mode: No

Electrical specifications
Rated Voltage DC (V): 12
Operating Voltage DC (V): 5 - 13.2
Current consumption (A): 0.13
Safety current (A): 0.30
Input power (W):3.6
Rated Current LED (A): No

Accessories
3-pin to 4-pin 12V-connector: No
12V to 7V adapter: No
12V to 5V adapter: No
Screws: 4
Push pins: No
hard plastic washer: No
Others: No

Safety Certification
Approvals: CE / RoHS / RU / UKCA / WEEE

Environmental Directives
RoHS: Yes
WEEE: Yes
Triman: Yes

Service
Warranty (Years): 3
International hotline / free of charge: ? / DE, FR, US

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 2100RPM
• Fan Shroud Colour: Black
• LED Colour: None
• Connections: 4-Pin Fan
