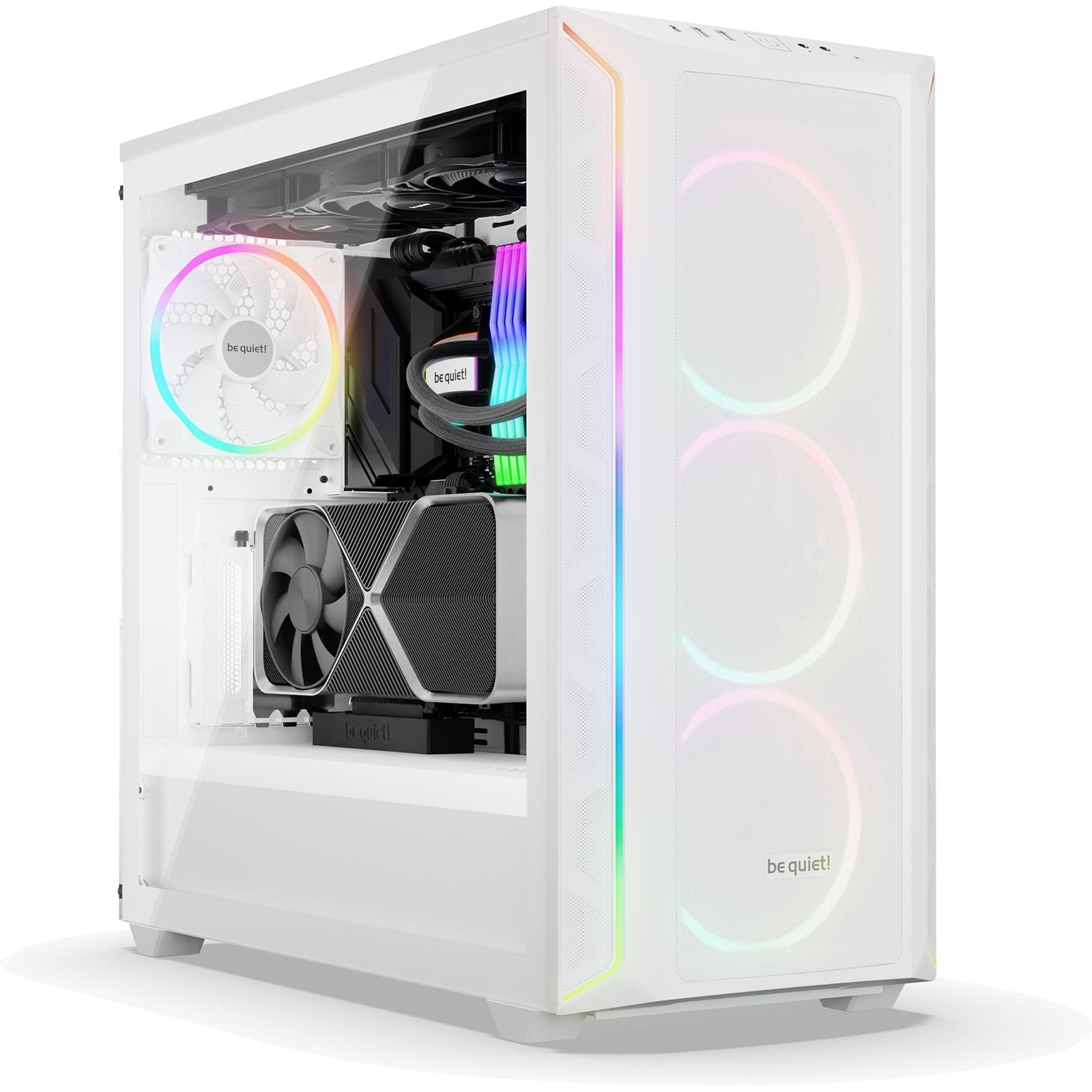

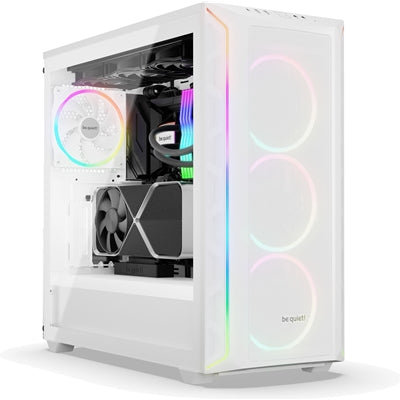

be quiet! Shadow Base 800 FX White - Airflow-Optimized Mid Tower with ARGB Lighting

The Shadow Base 800 FX White delivers exceptional airflow performance combined with impressive ARGB illumination in a spacious mid tower design. Built to accommodate extensive hardware configurations including E-ATX motherboards and large graphics cards up to 430mm, this case provides the foundation for high-performance builds.

Pre-Installed Light Wings White 140mm PWM Fans

Equipped with 4 pre-installed Light Wings White 140mm PWM fans (3 front, 1 rear), the Shadow Base 800 FX delivers 56 CFM airflow per fan while maintaining quiet operation at just 23.3 dB(A). The 7-blade design reduces turbulence and ensures efficient cooling for demanding configurations. All fans connect to the included PWM and ARGB hub supporting up to 8 devices.

ARGB Lighting System with Controller

40 addressable RGB LEDs provide customizable illumination throughout the chassis. The Light Wings fans feature dual ARGB rings - a subtly lit rear ring and bright front ring for 360-degree visual impact. Front-mounted ARGB LEDs offer multiple colors and modes controlled via the I/O panel button or synchronized with compatible motherboards.

Maximum Airflow Mesh Design

The open mesh front and top panels prioritize unrestricted airflow for air-cooled and water-cooled systems. Removable dust filters at the front and bottom maintain clean internals without compromising air permeability. This design targets maximum cooling performance for high-end components.

Spacious Interior for Large Components

Dimensions of 550 x 247 x 503mm provide generous space for radiators up to 420mm at the front or top, CPU coolers up to 180mm tall, and graphics cards up to 430mm long. E-ATX motherboard compatibility ensures support for enthusiast-grade builds. The case accommodates PSUs up to 305mm and offers flexible storage with up to 3x 3.5" and 7x 2.5" drive mounting options.

Modern Connectivity and Cable Management

The I/O panel features 1x USB 3.2 Gen 2 Type-C port, 2x USB 3.2 Type-A ports, HD audio connections, and an ARGB controller button. Integrated cable management bars behind the motherboard tray ensure clean cable routing for professional-looking builds.

Tempered Glass Side Panel

The full-length tempered glass side panel with white painted bars provides clear visibility of internal components while complementing the white chassis aesthetic.

Technical Specifications

General data
Model: Shadow Base 800 FX White
Color option: White
Motherboard compatibility: E-ATX / ATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm):550 x 247 x 503
Case size incl. stands (L x W x H), (mm):550 x 247 x 522
Volume (l): 62.74
PSU form factor: ATX PS/2
Weight (kg): 12.3
Expansion slots: 7

Pre-installed fans
Fan at top: No
Fan at front:3 x Light Wings White 140mm PWM
Fan at side: No
Fan at rear: 1 x Light Wings White 140mm PWM
Fan at bottom: No
Dimensions (L x W x H), (mm): Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm): 1500
Airflow at 100% PWM / 12V (CFM / m3/h): 56 / 95.14
Air Pressure at 100% PWM / 12V (mm H2O): 1.49
Noise level at 100% PWM / 12V (dB(A)): 23.3
Voltage range (V DC): 5 - 13.2
Input power (W):3.84
Input current (A):0.32
Connector: 4-pin PWM
Lifespan (h / 25°C): 60,000
Fan controller: No

Maximum fan installation
Maximum fans: 8
Top (mm): 3 x 140 / 3 x 120
Front (mm): 3 x 140 / 3 x 120
Side (mm): No
Rear (mm): 1 x 140 / 1 x 120
Bottom (mm): 1 x 140 / 1 x 120
PSU shroud: No

Optional radiator installation
Top (mm): 120 / 140 / 240 / 280 / 360 / 420
Front (mm): 120 / 140 / 240 / 280 / 360 / 420
Side (mm): No
Rear (mm): 120
Bottom (mm): No

PSU compatibility
Maximum dimensions excl. bottom fan (mm): 305
Maximum dimensions incl. bottom fan (mm): 260

Graphics card
HDD cage (in height of graphics card) installed (mm): 430
HDD cage (in height of graphics card) removed (mm):430
Maximum PCIe slots with vertical graphics card (pcs.): 7

Drive bay capacity
5.25 bays (pcs.): No
3.5 slots (scope of delivery): 1
3.5 slots (max.): 3
2.5 slots (scope of delivery): 3
2.5 slots (max.): 7

Cooling
Max.construction height of CPU cooler unit (mm):180
Airflow channel: Front / Top / Rear / Bottom

Lighting
LED illumination: Yes
LEDs (pcs.): 40
LED type: ARGB - 5V
LEDs synchronizable with controller/motherboard: Yes

I/O Panel
USB 3.2 Gen. 2 Type C: 1
USB 3.2 Type A: 2
USB 2.0: No
HD Audio I/O: Mic + Audio
Qi charger / Quick Charging Option: No

Removeable dust filters
Top: No
Front: 1
Side: No
Bottom:1

• Form Factor: Mid Tower
• Motherboard Support: E-ATX
• PSU Included: None
• Case Colour: White
• LED Colour: Addressable RGB
• USB 3.0: 2
• Side Panel: Tempered Glass
