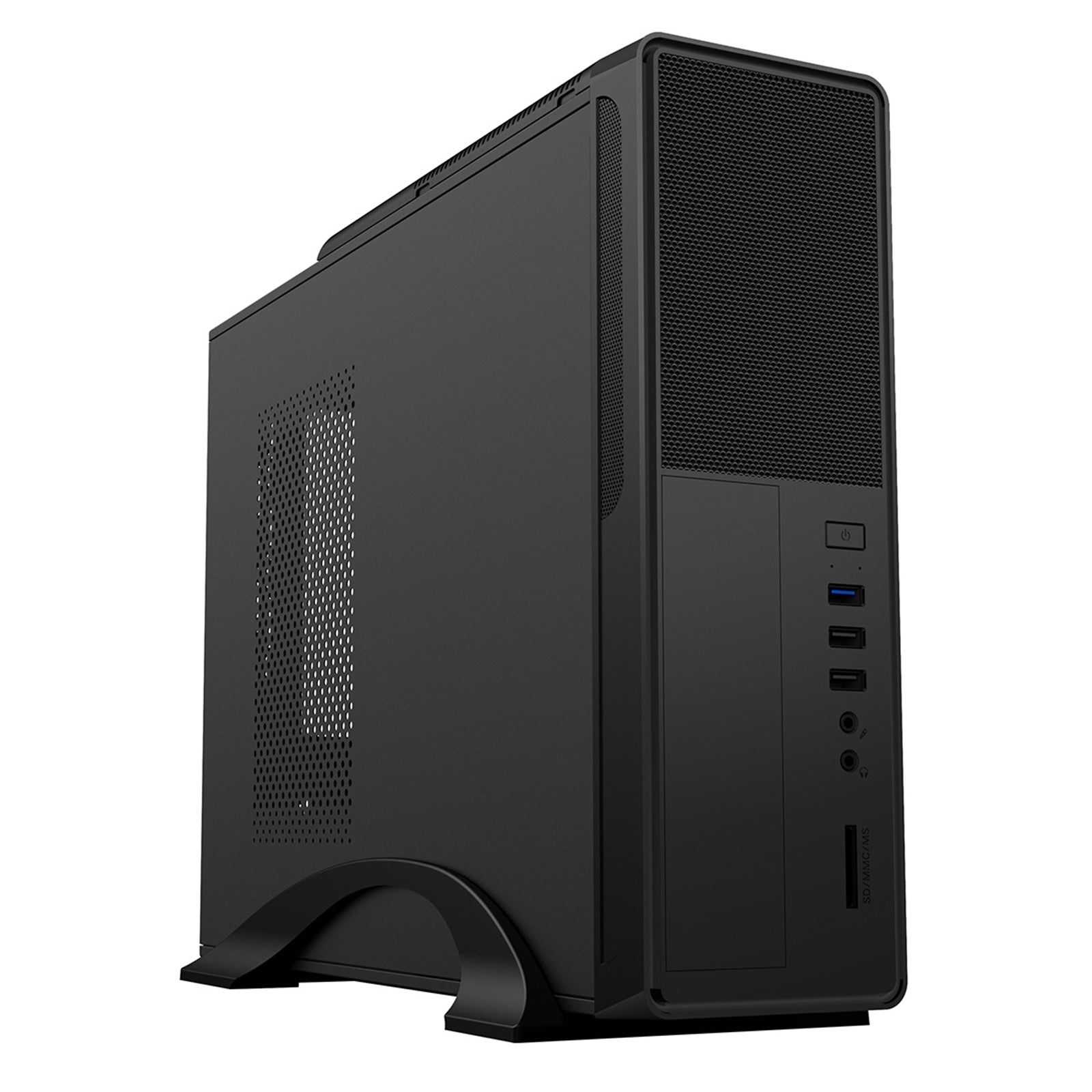

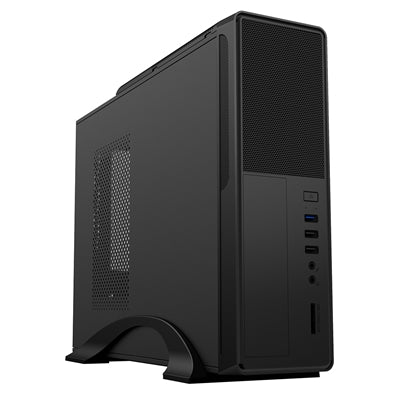

CiT S014B Compact Micro ATX Case with 300W PSU

The CiT S014B is a space-saving micro slim case designed for efficient business PC builds. This compact case features a mesh front panel for enhanced airflow, includes a silent 300W micro SFX PSU, and comes equipped with an 80mm top cooling fan for optimal thermal performance.

Key Features

This micro tower case supports both Micro ATX and Mini-ITX motherboards, making it versatile for various system configurations. The front panel includes 1 x USB 3.0 and 2 x USB 2.0 ports, plus a built-in SD/MMC/MS 3-in-1 card reader for convenient media access. The removable HDD/ODD cage simplifies installation and maintenance.

Constructed from 0.5mm SECC metal with a plastic front bezel, the S014B measures just 100 x 306 x 403mm, maximizing desk space without compromising functionality. The vented side panel and strategic ventilation points ensure proper airflow throughout the chassis.

Drive Bays and Expansion

The case accommodates 1 x 5.25" external bay, 2 x 3.5" internal bays, and 2 x 2.5" internal bays (with one 2.5" bay utilizing a 3.5" slot). Four half-height expansion slots provide flexibility for additional components. GPU clearance supports cards up to 225mm in length, while CPU cooler height is limited to 82mm.

300W PSU Specifications

The included 300W micro ATX power supply delivers reliable performance with +3.3V at 16A, +5V at 16A, +12V at 14A, -12V at 0.3A, and +5VSB at 2A. Connections include 1 x 20+4 pin ATX, 1 x 4-pin CPU, 2 x 4-pin Molex, 3 x SATA, and 1 x FDD connector.

Cooling Configuration

The S014B comes with 1 x 80mm top fan pre-installed. Additional cooling options include bottom ventilation with space for a 50mm fan or SSD mounting. The mesh front panel and vented side panel work together to maintain proper airflow for system components.

I/O and Connectivity

Front panel I/O includes 1 x USB 3.0, 2 x USB 2.0, HD Audio (also supports AC'97), microphone input, and an integrated SD/TF card reader. Internal cable management depth of 21mm helps maintain organized builds in this compact form factor.

PSU Specification
Rail: Max. DC Output
+3.3V: 16A
+5V: 16A
+12V: 14A
-12V: 0.3A
+5VSB: 2A

Connections
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1

Form Factor
Micro Tower

Motherboard Support
Micro ATX
Mini-ITX

PSU Included
Yes

PSU Support
Micro ATX

PSU Location
Front

Body Material
0.5mm SECC Metal

Front Bezel Material
Plastic

Side Panel
Vented

Drive Bays
1 x 5.25" External
2 x 3.5" Internal
2 x 2.5" Internal
(1 x 2.5" uses a 3.5" bay)

Expansion Slots
4 x Half-Height

Cooling
Cooling Front: None
Cooling Top: Space For 1 x 80mm Fan (inc.)
Cooling Rear: None
Cooling Side: Vent
Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD

I/O Ports
1 x USB 3.0
2 x USB 2.0
1 x HD Audio (Also Supports AC'97)
1 x Microphone
SD/TF Card Reader Included (Built-in)

Clearance
Internal Cable Management Depth: 21mm
GPU Card Max Length: 225mm
CPU Cooler Max Height: 82mm

Front Bezel Colour
Black

Body Colour
Black

Product Dimensions ( W x H x D )
100 x 306 x 403mm

• Form Factor: Slim Desktop Micro Tower
• Motherboard Support: Micro ATX
• PSU Included: 300W
• Case Colour: Black
• LED Colour: None
• USB 3.0: 1
• Side Panel: Solid
