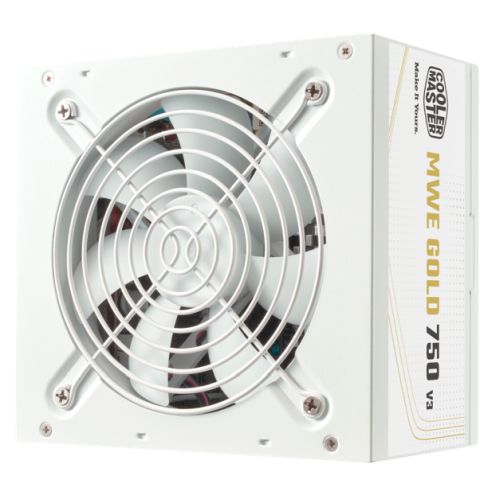

MWE GOLD 750 V3 ATX 3.1 Non-Modular

• Quiet HDB fan - A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
• 80 Plus Gold efficiency certification - This unit is certified to achieve more than 90% efficiency at typical loads in a 115V test.
• High temperature resilience - A 40°C maximum operating temperature allows for pushing your machine to the limits with
• overclocking and other high-intensity applications.
• Embossed cable - An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.
• ATX 3.1 support & a durable 12V-2x6 cable - The ATX 3.1-compliant power supply supports 200% Times the peak power, making it ideal for next generation series GPUs to easily meet the demands of future high-performance graphics cards. Includes 180-degree 12+4pin (12V-2x6) cable that can support the maximum power consumption of 450W for mainstream graphics cards.
• Single +12V rail - All power comes from a single +12V source, ensuring consistent output through all connected cables.
• DC-to-DC technology - The DC-DC circuit design offers reliable, stable output to all connected components.
• 2 EPS Connectors - Two 4-pin EPS connectors are included for universal compatibility with current-gen motherboards.
• 5-year warranty - This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.

Description

Specification

• Form Factor: ATX
• Series: Cooler Master MWE
• Wattage: 750 W
• Modular: Fully Wired
• Compatibility: ATX 12V Ver. 3.1
• #Hide#Wattage Range: 700 - 760W
• Connectors: 1 x ATX 24 Pin = 1x (550mm)
  2 x EPS 8 Pin / 4+4 Pin = 1x (550+120mm)
  4 x PCl-e 6+2 Pin = 2x (550+120mm)
  6 x SATA = 2x (400+150+150mm)
  3 x Peripheral 4 Pin = 1x (400+150+150mm)
  1 x 12V–2x6 (12+4 Pin) = 1x (600mm)
• Rail Design: Single +12V Rail
• AC Input: 100 - 240V
• PFC: Active PFC
• Fan Type: 120mm Hydro Dynamic Bearing Fan
  2400 RPM
• Fan Bearing: Hydro Dynamic Bearing
• Max Certification: Gold
• Efficiency: 80+ Gold
  90% @ Typical Load
• MTBF: "100,000 Hours"
• Protection: UVP / OVP / OPP / OTP / SCP / OCP
• Additional Features: See Overview
• Weight/Dimensions: (LxWxH) 140 x 150 x 86 mm
• Package Weight: 2.9900 kg
• Warranty: 5 Years
• #Hide#ATX 3.1/3.0: ATX 3.1
