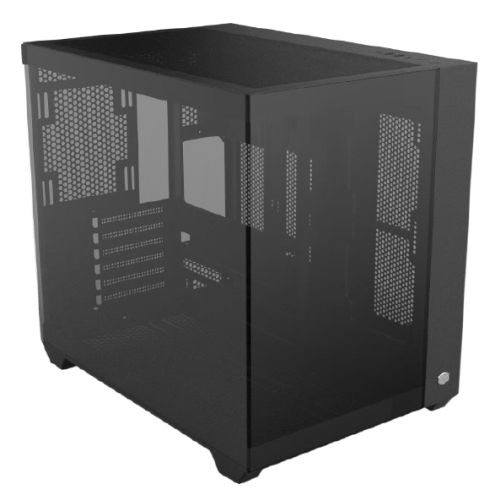

CD600 is a versatile sea-view PC chassis supporting a back-connected motherboard for optimal space and cable management.

It accommodates up to nine 120mm fans, two 360mm radiators, and features a full-transparent design for showcasing your build. Supports large components and offers tool-free maintenance, with ample connectivity including USB Type-C.

• Back-connected Motherboard Support - Support back-connected motherboard to frees up space in the front of the case and providing improved cable management space up to 57mm behind MB tray.

Description

Specification

• Form Factor: ATX
• #Hide#Small Form Factor: No
• Power Supply Wattage: No PSU
• Motherboard Support: "ATX (without bottom radiator installed), Micro ATX, Mini ITX "
• #Hide#Window(s): Yes (Window)
• #Hide#LED Lighting: Yes (LED Lighting)
• Connectors / Controls: 1 x USB 3.2 Gen2 Type C
  2 x USB 3.2 Gen 1 Type A
  1 x 3.5mm Headset Jack (Audio+Mic)
• Drive Bays: 2 x 3.5""
  2 x 2.5""
• Expansion Slots: 6 Expansion Slots
• Cooling System: Included:
  Top: 3 x 120mm RGB Fans
  Motherboard Tray: 2 x 120mm RGB Fans
  Rear: 1 x 120mm RGB Fan

  Fan Mounts:
  Front: None
  Top: 3 x 120 / 2 x 140 mm
  Bottom: 3 x 120 / 2 x 140 mm
  Motherboard Tray: 2 x 120 mm
  Rear: 1 x 120 / 1 x 140 mm

• .:
  Radiator Support:
  Front: None
  Top: 240/280/360 mm
  Bottom: 240/280/360 mm
  Motherboard Tray: 2 x 120 mm


• #Hide#Back-Connect MB Support: Yes (Back-Connect)
• Back-Connect MB Support: Yes
• Colour: Black
• Material: "Exterior: SGCC Steel, Aluminium
  Left Panel - Tempered Glass
  Right Panel: Steel"
• Compatibility: GPU Clearance:
  400 mm

  CPU Clearance:
  175 mm

  PSU Clearance:
  200 mm

  Cable Routing (Behind MB Tray):
  57 mm
• Weight/Dimensions: 6.1 kg
  (LxWxH) 430 x 295 x 390 mm (Incl. Protrusions)
  (LxWxH) 415 x 295 x 368 mm (Excl. Protrusions)
  Volume (incl. Protrusions): 45.6L
• Additional Features: Dust Filters: Top/Bottom
  Dual Side Tool-free Panels
  Back Connector Motherboard Support
• Package Weight: 8.5500 kg
• Warranty: 2 Years
